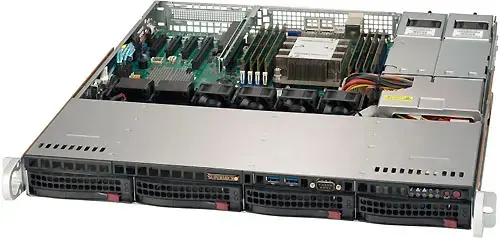

Serwer Supermicro AS 1013S-MTR
New
Specification
Producent
Supermicro
Format
1U
Obsługiwany procesor
1 x AMD 1th Generation
Obsługiwana pamięć RAM
DDR4 DIMM 8 slots (2 TB)
W tym wysyłka na terenie UE
Supermicro AS 1013S-MTR — Dane techniczne
- Processor
- 1 AMD EPYC™ 7001/7002 series (board version 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W Up to 32 cores (board version 1.x + 7001 processors) Up to 64 cores (board version 2.x + 7002 processors)
- Memory Capacity
- 8 DIMM slots Supports up to 1TB registered ECC DDR4 2666 MHz SDRAM (7001 processors) Supports up to 2TB registered ECC DDR4 3200 MHz SDRAM (requires board version 2.x + 7002 processors) 8-channel memory bus Memory type: DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMM modules DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMM modules (requires board version 2.x + 7002 processors) DIMM module sizes: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB, requires board version 2.x + 7002 processors )
- Chipset
- System on Chip (SoC)
- I/O Ports
- 4 SATA3 ports (6 Gb/s) 2 1GbE LAN ports 1 dedicated IPMI LAN RJ45 port 5 USB 3.0 ports (2 rear + 2 via header + 1 type A) 4 USB 2.0 ports (2 rear, 2 via header) 1 VGA port 1 COM port (rear) 2 SATA DOM power connectors TPM 1.2 1U rackmount Model CSE-813MFTQC-R407CB
- Chassis
- Height 1.7 inches (43 mm) x Width 17.2 inches (437 mm) x Depth 19.85 inches (503 mm) Net weight: 20 lbs (9.1 kg) Gross weight: 33 lbs (15.0 kg)
- Dimensions and Weight
- PCI Express: 1 PCI-E 3.0 x16 slot (FH/HL) M.2 Interface: PCI-E 3.0 x4 (NVMe based) Form factor: 2280, 22110 Key: Onboard M-key M.2 quantity: single
- Expansion Slots
- 4 hot-swap 3.5-inch SATA3 drive bays Peripheral drives: Additional 2.5-inch drive adapter Additional slim DVD drive Hard drive backplane: Supports 4 3.5-inch SATA3 hard drives.
- Drive Bays
- Redundant 400W 1U power supplies with PMbus Platinum
- Power Supply
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Operating Environment
- Intel® I210 controller
- Network Controllers
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
- IPMI
- SATA3 (6 Gb/s)
- SATA3
- ASPEED AST2500 BMC
- Video
- 4x 40x28 mm 4-pin PWM cooling fans 1 air shroud
- Fans
- Monitors CPU core voltage, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator Tachometer status monitoring for up to 8 fans Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulation (PWM) fan connectors CPU and chassis environment monitoring CPU thermal trip support Temperature control for 8 fan connectors I×C temperature sensing logic CPU/System overheat indicator Chassis intrusion detection Chassis intrusion header
- PC Health Monitoring

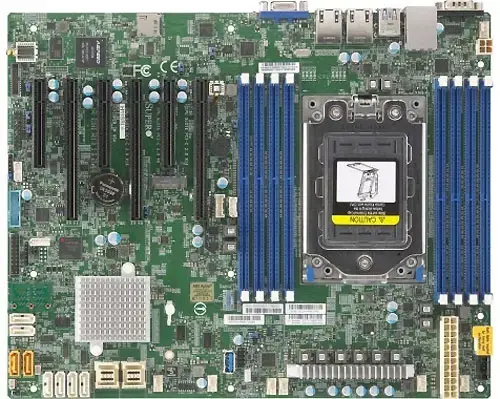

- H11SSL-i
- Motherboard
- BIOS type: AMI 128Mb SPI Flash EEPROM BIOS features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
