| Processor Name | Intel® Xeon® Scalable first and second generation processors |
| Processor family | Intel® Xeon® Scalable 8200, 6200, 5200, 4200 4100, 3100 series |
| Processor core available | Up to 24 core, depending on processor |
| Processor cache | 8.25-35.75 MB L3, depending on processor |
| Processor speed | 3.8 GHz, maximum depending on processor |
| Expansion slots | 3 Standard in Primary Riser |
| Maximum memory | HPE DDR4 Smart Memory Maximum capacity (RDIMM) 1 TB 16 x 64 GB RDIMM @ 2933 MT/s Maximum capacity (LRDIMM) 1 TB 16 X 64 GB LRDIMM @ 2933 MT/s |
| Memory slots | 16 slots maximum |
| Memory type | HPE DDR4 SmartMemory |
| Memory protection features | For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-rasfeature |
| Included hard drives | None ship standard, 12 LFF drives and 8 SFF drives supported |
| Optical drive type | SATA DVD-ROM Optical Drive / Optical Drive 5mm SATA DVD-RW / Mobile USB DVD-RW Optical Drive |
| System fan features | 4-6 Fans |
| Network controller | Embedded 2-Port 1GbE |
| Storage controller | Embedded 14-Port S100i |
| Minimum dimensions ( H x W x D) | 8.73 x 44.54 x 63.47 cm |
| Weight | 13.0 kg |
| Infrastructure management | HPE iLO5, InfoSight and OneView |
| Vitesse du processeur |
3,8 GHz, maximum selon le processeur |
| Mémoire, maximale |
1,0 To avec DDR4 64 Go |
| Logements pour la mémoire |
16 lgts pour modules DIMM |
| Type de mémoire |
SmartMemory HPE DDR4 |
| Lecteur pris en charge |
8 à 24 lecteurs SFF disque dur/SSD SAS/SATA, 8 à 12 lecteurs LFF disque dur/SSD SAS/SATA, 2 HDD/SSD SAS/SATA petit format arrière en option selon le modèle |
| Type de NVDIMM |
Aucun |
| Disques durs inclus |
Aucun en livraison standard, 8 à 12 lecteurs LFF et 8 à 24 lecteurs SFF pris en charge, 2 lecteurs SFF arrière en option |
| Type du lecteur optique |
En option : DVD-ROM ou DVD-RW |
| Sécurité physique |
Kit cadran de verrouillage en option, kit de détection d'intrusion ou HPE TPM 2.0 |
| Gestion de l'infrastructure |
HPE iLO standard avec provisionnement intelligent (intégré), HPE OneView Standard (nécessite le téléchargement), en option- HPE iLO Advanced et HPE OneView Advanced (licences requises) |
| Type d'alimentation électrique |
Jusqu'à 2 modules d'alimentation HPE à logement flexible |
| Logements d'extension |
6, voir les caractéristiques techniques pour plus de détails (QuickSpecs) |
| Contrôleur réseau |
Adaptateur Ethernet HPE intégré 2 ports 1 GbE Ethernet et HPE FlexibleLOM, adaptateur Media Module ou carte stand-up PCIe en option |
| Contrôleur de stockage |
Contrôleurs HPE Smart Array S100i et/ou RAID HPE Essential ou Performance, selon le modèle |
| Fonctionnalités du ventilateur système |
Ventilateurs permutables à chaud à rotor unique standard |
| Format |
2U |

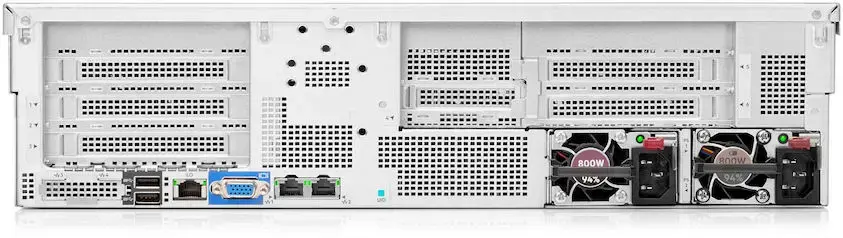

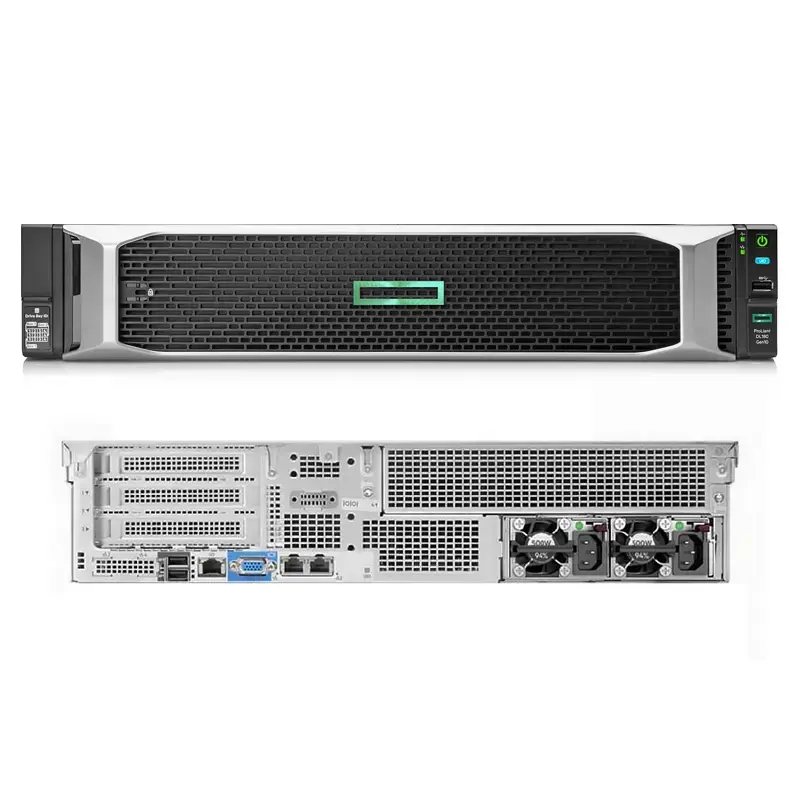

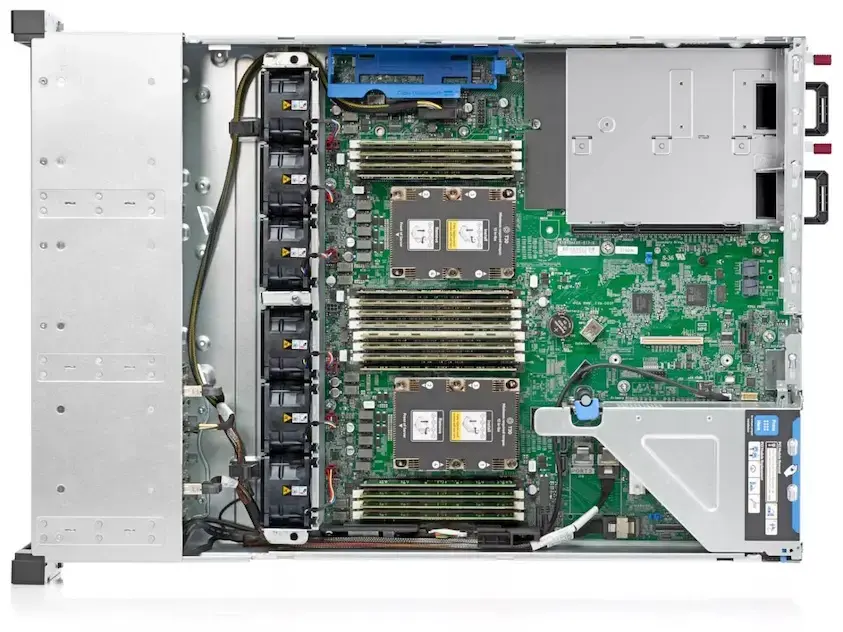

HPE ProLiant DL180 Gen10 is a two-processor general-purpose 2U server mounted in a 19″ cabinet or rack. The DL180 Gen10 is designed for maximum versatility and fault tolerance, combining uncompromising performance, reliability and scalability. These factors allow the server to handle the great stack of tasks of SMB and other businesses: mail, storage, containers, large databases, high-performance computing, virtualization, and more.
HPE ProLiant DL180 Gen10 is a mid-level server designed to handle a wide range of business tasks with a need to scale in the future. Quick, easy and secure. For that, Hewlett Packard Enterprise engineers gave it the following characteristics:
HPE DL180 Gen10 uses iLO 5 Standard software-hardware remote control technology: it is a proprietary implementation of IPMI 2.0 protocol to control the server as if it is right in front of you. For that, HPE DL360 Gen9 has a dedicated 1 Gbps port. ILO 5 Advanced fee-based license (purchased for one year or three years) includes additional functions.
HPE DL180 Gen10 security is implemented both in software and hardware. Today, firewalls won't do the trick. HPE engineers implement protection technologies right into chips and circuits, constantly update firmware and release security patches during the whole server lifecycle. This is why DL180 Gen10 is perfect for your critical business processes.
Security parameters:
Compared to the previous generation, the HPE DL180 Gen10 server has become more energy efficient and powerful, and has been equipped with the latest generation of iLO 5. It has an upgraded Intel C622 chipset, a modern Intel Xeon Scalable 2nd and 3rd generation processors, higher memory frequency and a larger RDIMM, more opportunities for storage expansion, new RAID controllers and more.
What is included in the 5-year warranty for the HPE Proliant DL180 Gen10 Server?
The Servermall warranty includes:
How to get a discount on the HPE Proliant DL180 Gen10 Server?
Subscribe to our news and get a 50€ discount on the server.
What are the terms of delivery of the HPE Proliant DL180 Gen10 Server?
Free shipping across EU if ordering equipment from 500€. Delivery from 4 working days.
We do it for people, not for show. No trifles like paid delivery etc.
What? 5 years warranty for refurbished equipment? Sounds crazy, right? In fact, it's not: we are confident in the results of our diagnostics and testing. And if something goes wrong, we'll fix it. For free.
