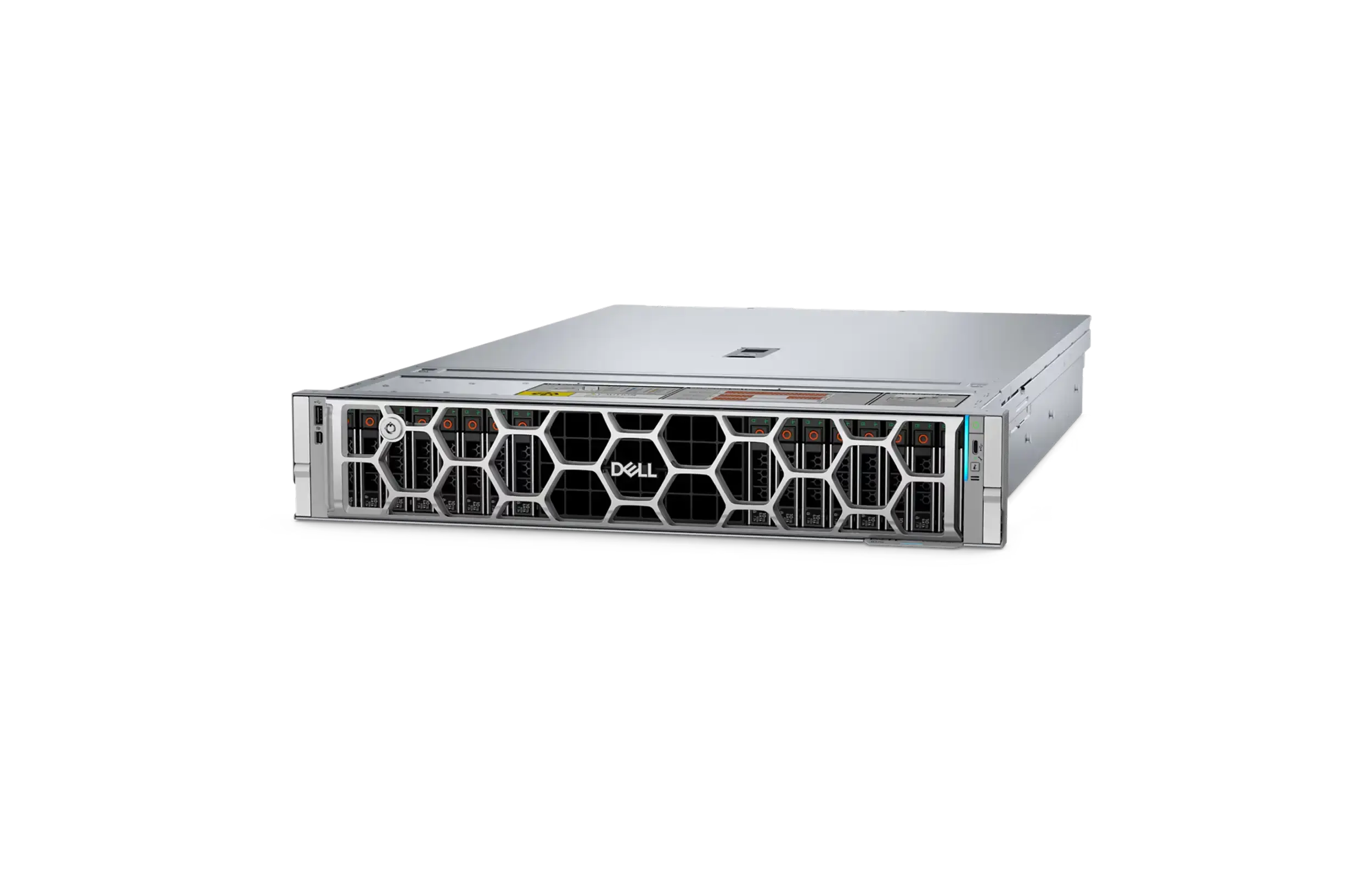

Dell PowerEdge R770 16SFF
You might be interested in
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
2 x Intel® Xeon® 6 processors, up to 144 cores per processor
Memory
DDR5: up to 32 x RDIMM (2 TB), speed up to 6400 MT/s, registered ECC only
Storage controllers
- Internal RAID: Front PERC H965i
- Boot: BOSS-N1 DC-MHS HWRAID 1 with 2 x M.2 NVMe SSDs, M.2 interposer or USB
Drive bays
Front bays
- Up to 16 x EDSFF E3.S Gen5 NVMe SSD
- Up to 8 x 2.5-inch NVMe SSD
- Up to 16 x 2.5-inch SAS/SATA SSD
Power supplies
- 800 W Platinum
- 1100 W Platinum
- 1500 W Titanium
Cooling and fans
Air cooling; HPR Silver/HPR Gold fans, up to 6 hot-swappable fans
Dimensions
- Height: 86.8 mm (3.42 inches)
- Width: 482 mm (18.97 inches)
- Depth: up to 814.52 mm (32.07 inches)
- Weight: 28.53 kg (62.89 lb)
Form factor
2U rack server
Management
- iDRAC10
- iDRAC Direct
- iDRAC RESTful API with Redfish
Security
- Cryptographically signed firmware
- Data at Rest Encryption with SEDs and local or external key management
- Secure Boot
- Secured Component Verification with hardware integrity check
- Secure Erase
- Silicon Root of Trust
- System Lockdown, requires iDRAC10 Enterprise or Datacenter
- TPM 2.0 FIPS, CC-TCG certified
Networking
- OCP NIC 3.0: 2 slots on the front or 2 slots on the rear
GPU options
Up to 4 x 75 W single-width GPUs
Ports
Front ports
- 1 x USB 2.0 Type-C
- 1 x USB 2.0 Type-A, optional
- 1 x Mini-DisplayPort, optional
- 1 x DB9 Serial with front I/O
- 1 x Dedicated Ethernet port for iDRAC management
Internal ports
- 1 x USB 3.1 Type-A
Rear ports
- 1 x Dedicated Ethernet port for iDRAC management
- 2 x USB 3.1 Type-A
- 1 x VGA
PCIe
Up to 4 x16 Gen5 PCIe slots
Operating systems
- Canonical Ubuntu Server LTS
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
I/O configurations
Rear I/O hot aisle or front I/O cold aisle
Need a technical consultation on choosing a server?

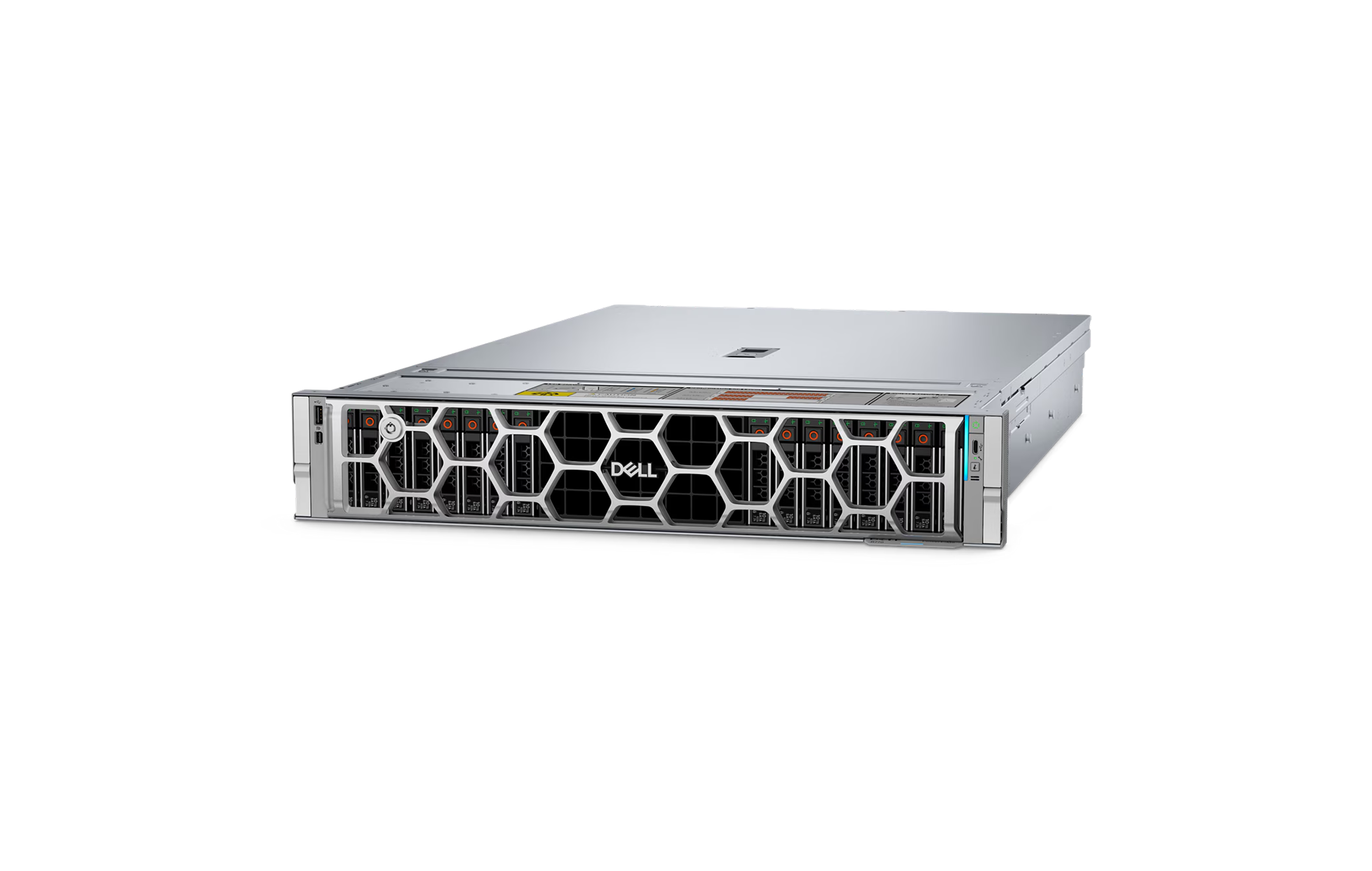

Submit a requestDell PowerEdge R770 16SFF is a 2U two-socket storage configuration with sixteen front 2.5-inch SFF drive bays. It is built for enterprise virtualization, databases, application consolidation, and software-defined infrastructure that require higher local drive density with controller-backed SAS4/SATA storage.
Key features:
-
16 front 2.5-inch SFF bays: Provides sixteen front-accessible 2.5-inch SFF hot-swap bays for dense local storage in a 2U rack chassis.
-
Defined 16SFF SAS4/SATA layout: This description refers to the sixteen-bay 2.5-inch SFF SAS4/SATA configuration. Dell’s separate 16-bay EDSFF E3.S NVMe option uses a different chassis and storage topology.
-
Dell PERC 12 controller options: Front PERC H365i or H965i options provide validated RAID and drive management for the 16-bay SAS4/SATA configuration.
-
Expandable two-socket 2U platform: Two Intel Xeon 6 processors, 32 DDR5 DIMM slots, PCIe Gen5 expansion, and optional accelerator support provide a balanced platform for core enterprise workloads.
-
Enterprise serviceability and management: Hot-swap drive access, iDRAC10, and Dell OpenManage tools simplify remote monitoring, lifecycle management, and planned maintenance.
Use cases:
-
Virtualization and private cloud: Provides dense local storage for virtual machines, hypervisors, and private cloud nodes.
-
Databases and analytics: Provides a dense SFF foundation for transactional databases, reporting platforms, and data-processing workloads.
-
Application consolidation: Supports the consolidation of multiple enterprise applications on a resilient and expandable 2U server.
-
Software-defined storage: Can serve as a storage-rich node for software-defined and hyperconverged infrastructure when configured with validated drives and controllers.
Dell PowerEdge R770 16SFF is a dense 2U SAS4/SATA storage configuration for organizations that need sixteen hot-swap SFF bays, PERC 12 RAID, and scalable two-socket compute.
