Gigabyte XV24-SU0-AAJ1 2SFF/NVMe
- Condition
- New
- Manufacturer
- GIGABYTE
- Form factor
- 2U
- CPU
- 1x Intel Xeon 6737P (32c/64t, 2.9GHz-4.0GHz, 270W)
- RAM
- 768GB (DDR5 ECC REG)
- NIC card
- 2x 10GbE (Intel X550-AT2)
- GPU
- 4 x NVIDIA RTX PRO 6000 Blackwell
- Accelerator manufacturer
- NVIDIA
- Accelerator model
- NVIDIA RTX PRO 6000 Blackwell Server Edition
- Installed GPU/APU count
- 4
- Maximum GPU/APU count
- 4
- Memory per accelerator
- 96GB
- Total accelerator memory
- 384GB
- GPU memory type
- GDDR7 with ECC
- Accelerator memory bandwidth
- 1597 GB/s per GPU
- Accelerator form factor
- PCIe FHFL
- Accelerator interconnect
- PCIe peer-to-peer topology; NVIDIA NVLink is not supported
- Accelerator-to-CPU interface
- PCIe 5.0 x16 per GPU
- Supported compute data types
- FP32, TF32, BF16, FP16, FP8, FP4 and INT8
- Accelerator virtualization
- NVIDIA vGPU, SR-IOV and GPU passthrough
- MIG support
- Up to 4 isolated GPU instances per GPU
- Software ecosystem
- NVIDIA CUDA, NVIDIA AI Enterprise and NVIDIA Omniverse
- Maximum system power
- 8kW
- Cooling
- Air cooling with two 60 mm and four 80 mm system fan modules and passive GPU cards
- Recommended workloads
- Enterprise AI inference and fine-tuning, generative and agentic AI, digital twins, rendering, visualization, simulation and data science
- Dimensions
- 87 x 438 x 900 mm (H x W x D)
- Weight
- 30.5 kg
Need a technical consultation on choosing a server?

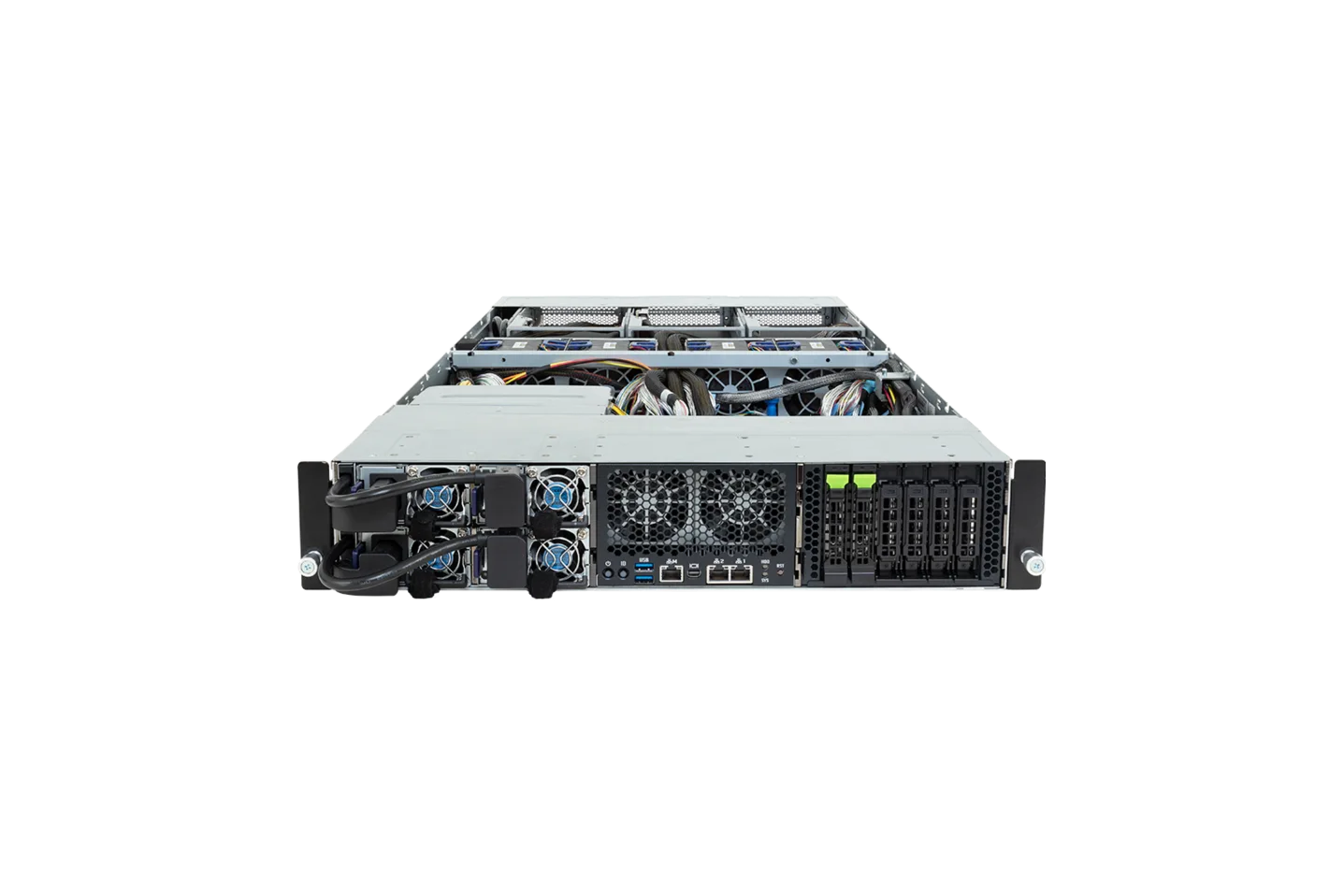

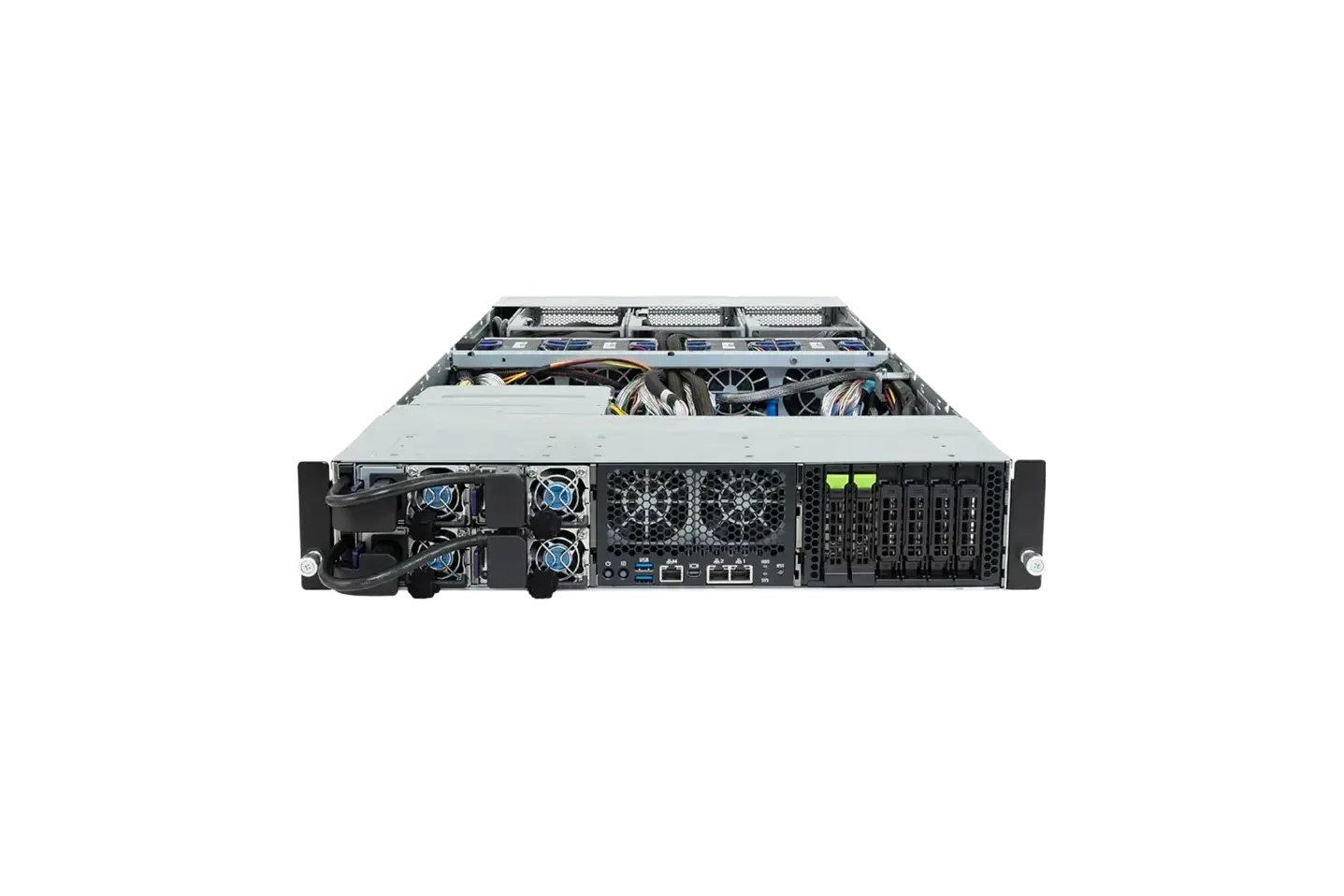

Submit a requestGigabyte XV24-SU0-AAJ1 2SFF/NVMe is a 2U enterprise GPU system storage configuration with 2 front 2.5-inch PCIe Gen5 NVMe hot-swap positions. It is designed for AI factories, research centers, cloud providers and enterprise data centers that need fast local storage for accelerated workloads.
Key features:
-
Storage basket and service access: The chassis provides 2 front-accessible 2.5-inch PCIe Gen5 NVMe hot-swap positions. Supported drives can be serviced without opening the chassis, helping reduce planned maintenance time.
-
Accelerator subsystem: The installed accelerator subsystem contains 4 x NVIDIA RTX PRO 6000 Blackwell Server Edition, providing 384GB (4 x 96GB) of aggregate GPU memory. PCIe; independent GPU topology.
-
Storage topology and data path: Every front position connects through a PCIe Gen5 x4 NVMe backplane. 2 internal M.2 PCIe Gen5 x4 slots. This layout supports fast dataset staging, checkpoints and local scratch storage without mixing the basket with a different drive protocol.
-
Enterprise compute platform: The compute subsystem is configured with 1 x Intel Xeon 6737P processor and 768GB DDR5 ECC registered memory; 16 DIMM platform. It supplies CPU, memory and PCIe resources for the accelerator complex and production services.
-
Management and availability: ASPEED AST2600 BMC, dedicated management LAN and GIGABYTE Management Console; 3+1 x 2000W 80 PLUS Titanium redundant power supplies. These facilities support remote administration, health monitoring and resilient operation.
Use cases:
-
AI model development: Uses the installed NVIDIA RTX PRO 6000 Blackwell Server Edition subsystem for training, fine-tuning and large-model development.
-
Inference and production AI: Provides parallel compute and accelerator memory for LLM, multimodal and enterprise inference services.
-
HPC, simulation and analytics: Accelerates scientific computing, numerical simulation, analytics and other parallel workloads supported by NVIDIA RTX PRO 6000 Blackwell Server Edition.
-
Data-intensive pipelines: Combines 2 front 2.5-inch NVMe positions with high-bandwidth GPU and network paths for datasets, checkpoints, staging and local scratch space.
Gigabyte XV24-SU0-AAJ1 2SFF/NVMe is a purpose-built 2U platform for organizations that need 2 front 2.5-inch PCIe Gen5 NVMe bays, 384GB (4 x 96GB) of installed GPU memory and enterprise-class compute and management in one deployable system.
