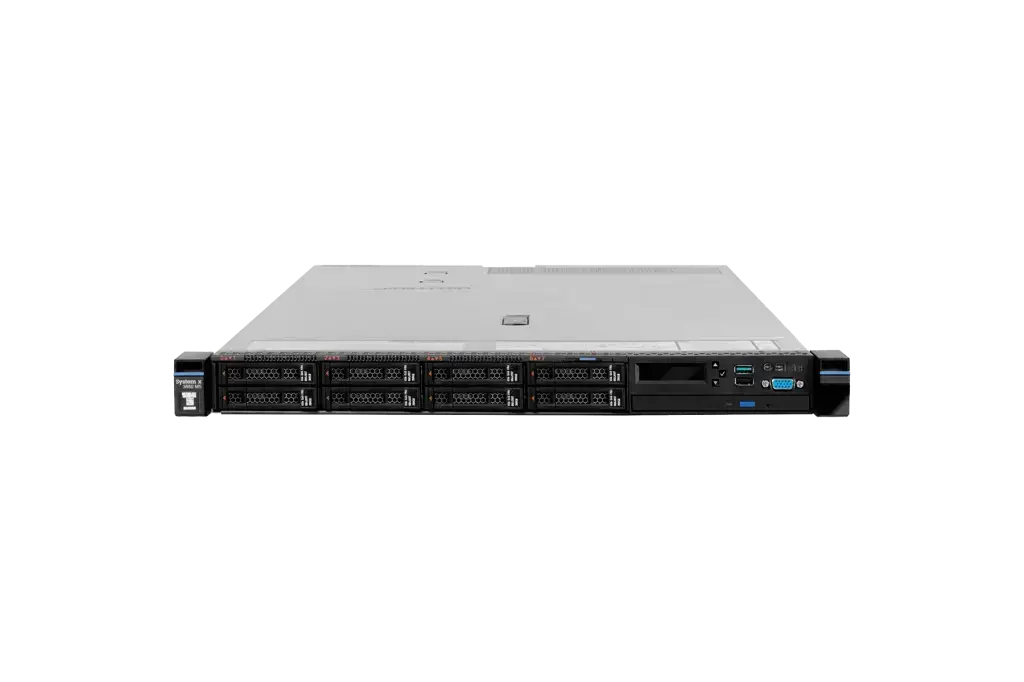

IBM x3550 M5 8SFF
Refurbished
Specification
Manufacturer
IBM
Form factor
1U
Supported RAM
DDR4 DIMM 12 slots (768 GB)
HDD bays
noHDD (up to Array HDD 2.5'' SFF)
Allocate VAT
Incl shipping across EU
IBM x3550 M5 8SFF
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Total price
Server Configurator IBM x3550 M5 8SFF
Can’t find the parts you need? We’ll find a solution
This is not a quote. Final price depends on configuration and current market conditions. Check up-to-date prices with our manager
IBM x3550 M5 8SFF
Condition
Refurbished
Allocate VAT
Free shipping across the EU for orders over 500 € Contact manager
5-year warranty on servers and storage systems
Work for you since 2018
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
IBM x3550 M5 8SFF — Specifications
- Processor
- Up to two Intel Xeon E5-2600 v3 series processors with up to 18-cores each/Up to 45 MB per processor.
- Memory
- Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs and LRDIMMs (Load Reduced DIMMs) are supported. Memory types cannot be intermixed. Memory speed up to 2133 MHz.
- Memory maximums
- With RDIMMs: Up to 768 GB with 24x 32 GB RDIMMs and two processor
- With LRDIMMs: Up to 1.5 TB with 24x 64 GB LRDIMMs and two processors.
- Memory protection
- Error correction code (ECC), Chipkill (for x4-based memory DIMMs).
- Chipset
- Intel C612
- Drive bays
- Up to 12x 2.5" SAS/SATA hot-swap drive bays: 10x 2.5" (front) + 2x 2.5" (rear)
- Up to 8x 2.5" SAS/SATA hot-swap drive bays: 4x 2.5" (front) + 4x 2.5" (front)
- Up to 8x 2.5" SATA Simple Swap drive bays: 4x 2.5" (front) + 4x 2.5" (front)
- 4x 3.5" SAS/SATA hot-swap drive bays
- 4x 3.5" SATA Simple Swap drive bays
- Storage controller
- Onboard 6 Gb SATA: no RAID support
- 12 Gb SAS/SATA RAID: RAID 0, 1, 10 with M1215 or M5210. Optional upgrade to RAID 5, 50 is available for M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zerocache; 1 GB non-backed cache; 1 GB, 2 GB, or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with memory cache upgrades. Optional SSD Caching and Performance Accelerator upgrades are available.
- 12 Gb SAS/SATA non-RAID: N2215 HBA
- Network interfaces
- 4x Integrated RJ-45 Gigabit Ethernet 1000 BASE-T ports (BCM5719).
- 1x Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors.
- 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
- Form Factor
- 1U Rack
- PCI Expansion slots
- Up to four slots, depending on the riser cards installed.
- Slot 1: PCIe 3.0 x16 or ML2; low profile, half-length (not present if the HDD Rear Kit is installed)
- Slot 2: PCIe 3.0 x16 or PCIe 3.0 x8; low profile or full-height, half-length (PCIe 3.0 x16 slot requires the second processor to be installed) (not present if the HDD Rear Kit is installed)
- Slot 3: PCIe 3.0 x16 or PCIe 3.0 x8; low profile, half-length
- Slot 4: PCIe 3.0 x8 (dedicated for an internal RAID controller)
- Ports
- Ports Front: 1x USB 2.0 (8x 2.5" drive bay models) or 2x USB 2.0 l (4x 3.5" and 10x 2.5" drive bay models), 1x USB 3.0, and 1x VGA
- Rear: 2x USB 3.0, 1x USB 2.0, and 1x VGA. Optional 1x DB-9 serial port
- Internal: 1x USB 3.0 port (for embedded hypervisor).
- Internal: 1x SD Media Adapter slot (for embedded hypervisor)
- Power supply
- Up to two redundant hot-swap 550 W, 750 W, or 900 W (100-240V), or 1500 W (200-240V) High Efficiency Platinum AC power supplies, or 750 W High Efficiency Titanium AC power supplies, or 900 W High Efficiency -48 V DC power supplies.
- Systems management
- Unified Extensible Firmware Interface (UEFI), Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, light path diagnostics, Automatic Server Restart, ToolsCenter, XClarity Administrator, and Intel Node Manager. Optional Advanced Management Module Advanced Upgrade for remote presence (graphics, keyboard and mouse, virtual media).
- Storage capacity
- Up to 46 TB with 3.84 TB 2.5" SAS SSDs
- Up to 40 TB with 10 TB 3.5" NL SAS or NL SATA HDDs
- Up to 24 TB with 2 TB 2.5" NL SATA HDDs
- Up to 21.6 TB with 1.8 TB 2.5" SAS HDDs
- Dimensions
- Height: 43 mm (1.7 in), width: 429 mm (16.9 in), depth: 734 mm (28.9 in).
- Weight
- Minimum configuration: 13.8 kg (30.5 lb), maximum: 19.3 kg (42.7 lb).
- Operating systems
- Microsoft Windows Server 2008 R2, 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 6 and 7; SUSE Linux Enterprise Server 11 and 12; VMware vSphere (ESXi) 5.1, 5.5, 6.0, and 6.5.
- Security features
- Power-on password, administrator's password, Trusted Platform Module (TPM) 2.0-ready. Optional lockable front bezel.
- Optical drive bays
- One, optional, for models with 4 or 8 drive bays (models with 10 drive bays do not support an internal optical drive). Support for DVD-ROM or Multiburner.
- Video
- Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
- Cooling
- Calibrated Vectored Cooling with up to eight redundant hot-swap fans (six standard, additional two with the second processor or with the x3550 M5 Thermal Solution Kit); dual fan zones with N+1 fan redundancy; each fan has two motors.
- Condition
- Refurbished
- Manufacturer
- IBM
- Form factor
- 1U
- Remote-Control-Modul
- IMM 2 Basic
- Supported RAM
- DDR4 DIMM 12 slots (768 GB)
- Power supply unit
- Power supply IBM 550w
- RAID controller
- RAID ServeRAID M5215
- HDD bays
- noHDD (up to Array HDD 2.5'' SFF)
- NIC card
- 4 port 1Gb (Integrated)
