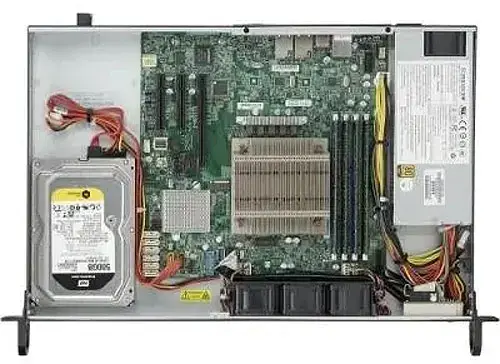

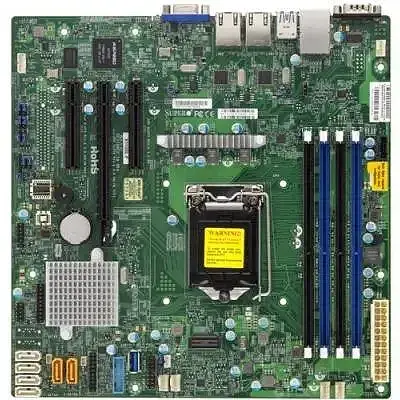

Server Supermicro 5019S-L
New
Specification
Manufacturer
Supermicro
Form factor
1U
Supported CPU
1 x Intel Xeon E3 v5/v6
Supported RAM
DDR4 DIMM 4 slots (64 GB)
Incl shipping across EU
Supermicro 5019S-L — Specifications
- Processor
- Single Socket H4 (LGA 1151) supports: Intel® Xeon® E3-1200 v6/v5, Intel® Core™ i3 7th/6th Gen CPU TDP up to 45W, optional 80W fan
- Memory Capacity
- 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory type: 2400/2133/1866/1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMM modules DIMM module sizes: 16GB, 8GB, 4GB
- Chipset
- Intel® C232 Chipset
- I/O Ports
- 6 SATA3 ports (6 Gb/s) 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port 5 USB 3.0 ports (2 rear + 2 headers + 1 type A) 6 USB 2.0 ports (2 rear + 4 headers) 1 VGA port 1 COM port (1 rear) 2 SuperDOM (Disk on Module) ports with built-in power
- Form Factor
- 1U
- Dimensions and Weight
- Height 1.7 inches (43 mm) x Width 17.2 inches (437 mm) x 11.3 inches (287 mm) Net weight: 8.45 lbs (3.83 kg) Gross weight: 12.55 lbs (5.69 kg)
- Expansion Slots
- 1 PCI-E 3.0 x8 AOC slot
- Drive Bays
- 1 internal 3.5" drive bay or 2x 2.5" (fixed)
- Power Supply
- 200W low noise AC-DC power supply with power factor correction
- Environmental Specifications
- Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Fans
- 2x 40x28 mm 4-pin PWM cooling fans Option 1x FAN-0147L4 for 80W CPU
- Network Controllers
- Two Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX and 1000BASE-T, RJ45 output
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
- RAID
- SATA3 (6 Gb/s) via C232 controller RAID 0, 1, 5, 10 support
- BIOS Type
- AMI UEFI
- Video
- ASPEED AST2400 BMC
