Server Supermicro 5019S-M
New
Specification
Manufacturer
Supermicro
Form factor
1U
Supported CPU
1 x Intel Xeon E3 v5/v6
Supported RAM
DDR4 DIMM 4 slots (64 GB)
Incl shipping across EU
Supermicro 5019S-M — Specifications
- Processor
- Single Socket H4 (LGA 1151) supports: Intel® Xeon® E3-1200 v6/v5, Intel® Core™ i3 7th/6th Gen CPU TDP up to 80W
- Memory Capacity
- 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory type: 2400/2133/1866/1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMM modules DIMM module sizes 16GB, 8GB, 4GB Memory voltage 1.2V Corrects single-bit errors Detects double-bit errors (using ECC memory)
- Chipset
- Intel® C236
- I/O Ports
- 8 SATA3 ports (6 Gb/s) 2 RJ45 Gigabit Ethernet LAN ports 1 dedicated IPMI LAN RJ45 port 5 USB 3.0 ports (2 rear + 2 headers + 1 type A) 6 USB 2.0 ports (2 rear + 4 headers) 1 VGA port 2 COM ports (1 rear, 1 front) 2 SuperDOM (Disk on Module) ports with built-in power
- Chassis
- 1U Form Factor Model CSE-813MFTQC-350CB
- Dimensions and Weight
- Height 1.7 inches (43 mm) x Width 17.2 inches (437 mm) x Depth 19.85 inches (503 mm) Gross weight: 30.4 lbs (13.8 kg) Net weight: 17.6 lbs (8 kg)
- Expansion Slots
- PCI-Express: 1 PCI-E 3.0 x8 (in x16) AOC slot M.2 interface: 1 M.2 interface: PCI-E 3.0 x2 Form factor Form factor: 2280 Key: M-Key Double Height Connector
- Drive Bays
- 4 hot-swap 3.5-inch SATA3 drive bays optionally 2 fixed internal 2.5-inch drives
- Power Supply
- 350W AC Platinum power supply with PFC
- Environmental Specifications
- Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Fans
- 4x 40x28 mm 4-pin PWM cooling fans Additional 1x 40x28 mm PWM fan
- Network Controllers
- 2 Intel® I210-AT Gigabit Ethernet LAN Supports 10BASE-T, 100BASE-TX and 1000BASE-T, RJ45 output
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
- RAID
- SATA3 (6 Gb/s) via C236 controller RAID 0, 1, 5, 10 support
- Video
- ASPEED AST2400 BMC
- Backplane
- SAS/SATA hard drive backplane

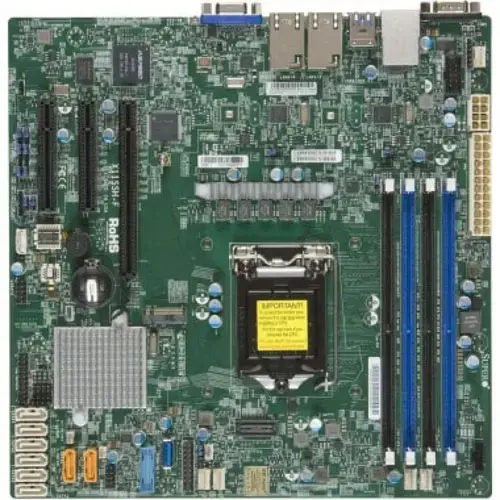

- Motherboard
- Super X11SSH-F
