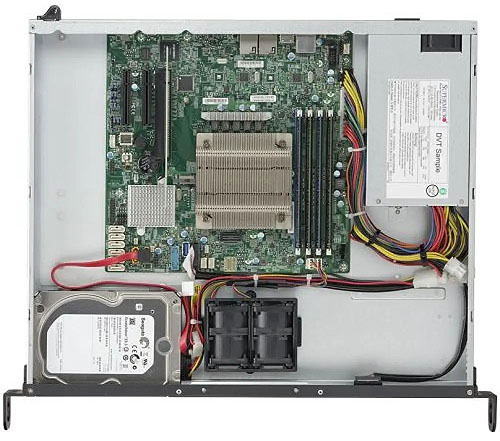

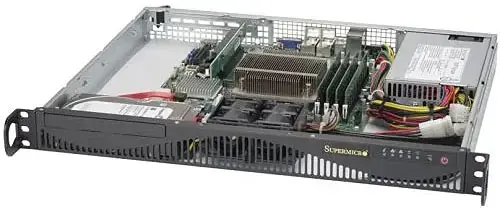

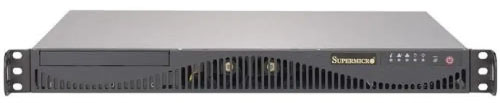

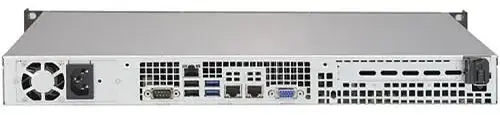

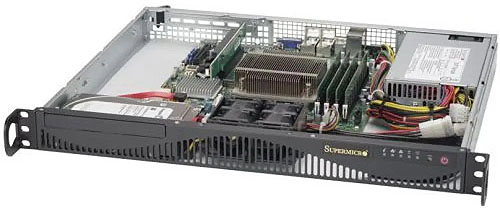

Supermicro 5019S-ML
New
Specification
Manufacturer
Supermicro
Form factor
1U
Supported CPU
1 x Intel Xeon E3 v5/v6
Supported RAM
DDR4 DIMM 4 slots (64 GB)
Supermicro 5019S-ML — Specifications
- Condition
- New
- Manufacturer
- Supermicro
- Form factor
- 1U
- Supported CPU
- 1 x Intel Xeon E3 v5/v6
- Supported RAM
- DDR4 DIMM 4 slots (64 GB)
- Processor
- Single Socket H4 (LGA 1151) supports: Intel® Xeon® E3-1200 v6/v5, Intel® Core™ i3 7th/6th Gen CPU TDP up to 80W
- Memory Capacity
- 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory type: 2400/2133/1866/1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMM modules DIMM module sizes: 16GB, 8GB, 4GB
- Chipset
- Intel® C236
- I/O Ports
- 8 SATA3 ports (6 Gb/s) 2 RJ45 Gigabit Ethernet LAN ports 1 dedicated IPMI LAN RJ45 port 5 USB 3.0 ports (2 rear + 2 headers + 1 type A) 6 USB 2.0 ports (2 rear + 4 headers) 1 VGA port 2 COM ports (1 rear, 1 header) 2 SuperDOM (Disk on Module) ports with built-in power
- Chassis
- 1U rackmount Model CSE-512F-350B1
- Dimensions and Weight
- Height 9.45 inches (240 mm) x Width 8.27 inches (210 mm) x Depth 14.4 inches (366 mm) Gross weight: 16 lbs (7.3 kg) Net weight: 10.5 lbs (4.8 kg)
- Expansion Slots
- PCI-Express: 1 PCI-E 3.0 x8 (in x16 slot) M.2 M.2 interface: 1 M.2 interface: PCI-E 3.0 x2 M.2 form factor: 2280 M.2 Key: M-Key
- Drive Bays
- 2x 3.5" or 3x 2.5" (option) internal drive bays
- Power Supply
- 350W AC power supply with PFC Platinum
- Environmental Specifications
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Motherboard
- Super X11SSH-F
- Network Controllers
- 2 Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX and 1000BASE-T, RJ45 output
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
- RAID
- SATA3 (6 Gb/s) via C236 controller RAID 0, 1, 5, 10 support
- Video
- ASPEED AST2400 BMC
- Fans
- 2 x 40x56 mm counter-rotating PWM fans
- PC Health Monitoring
- Monitors for CPU cores, +3.3V, +5V, +12V, +5V standby, VBAT, HT, memory, chipset voltages. Total of 5 fan headers supporting up to 5 fans 2 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulation (PWM) fan connectors CPU and chassis environment monitoring CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI System information indicator Suspend static indicator LED UID/remote UID Chassis intrusion detection Chassis intrusion header RoHS, halogen-free
