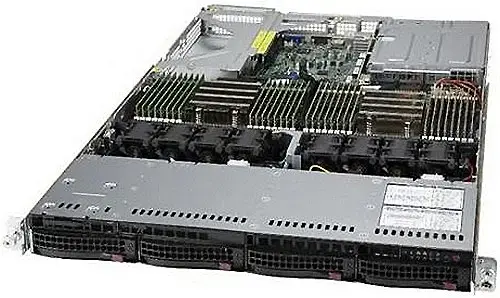

Supermicro AS-1024US-TRT
New
Specification
Manufacturer
Supermicro
Form factor
1U
Supported CPU
2 x AMD 3rd Generation
Supported RAM
DDR4 DIMM 32 slots (8 TB)
Supermicro AS-1024US-TRT — Specifications
- Processor
- 2 AMD EPYC 7003/7002 Up to 64 cores 10GBase-T
- Memory Capacity
- 32 slots ECC DDR4 3200 MHz SDRAM up to 8TB
- Chipset
- System on Chip (SoC)
- VGA
- ASPEED AST2500 BMC
- I/O Ports
- 4 SATA3 ports (6 Gb/s) 2 10GBase-T LAN ports via Intel® X710-AT2 1 dedicated IPMI LAN RJ45 port 1 RJ45 Dedicated IPMI LAN port 3 USB 3.0 ports (2 rear + 1 type A) 1 VGA port Support for 4 SAS3 ports with optional SAS kit 4 NVMe via optional drive tray 1 COM port (rear) 2 SATA DOM power connectors TPM 1.2 1U
- Form Factor
- 437 x 43 x 737mm (17.2" x 1.7" x 29") Net weight: 11.8 kg: gross weight: 18.6 kg
- Dimensions and Weight
- 2 x PCI-E 4.0 x16 (FH/HL 9.5") 1 x PCI-E 4.0 x16 (LP) 1 x PCI-E 4.0 x16 (internal proprietary LP slot) Both processors must be installed for full access to PCI-E slots and integrated controller.
- Expansion Slots
- 4 x 3.5" NVMe / SATA3 drives (hot-swap) Supports 4 SATA3, 4 NVMe or 4 SAS3 hard drives.
- Drive Bays
- Redundant 800W/1000W power supplies with PMBus
- Power Supply
- Operating temperature: 10°C to 35°C (50°F to 95°F) * Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Environmental Specifications
- 8 powerful PWM fans with optimal speed control
