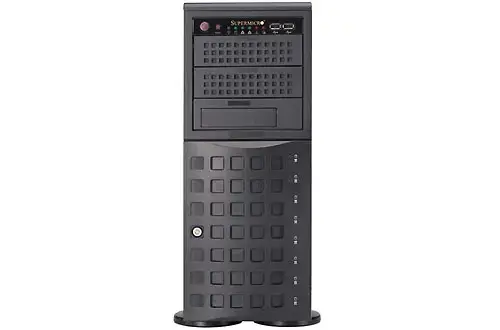

Server Supermicro AS 4023S-TRT
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
2 x AMD 1th Generation
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Incl shipping across EU
Supermicro AS 4023S-TRT — Specifications
- Processor
- Two AMD EPYC™ 7001/7002 series processors (board version 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W * Up to 32 cores (board version 1.x + 7001 processors) Up to 64 cores (board version 2.x + 7002 processors)
- Memory
- 16 DIMM slots Supports up to 2TB registered ECC DDR4 2666 MHz SDRAM (7001 processors) Supports up to 4TB registered ECC DDR4 3200 MHz SDRAM (requires board version 2.x + 7002 processors) 8-channel memory bus Memory type: DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMM modules (7001 processors) DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMM modules (requires board version 2.x + 7002 processors) DIMM module sizes: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * requires board version 2.x + 7002 processors )
- Chipset
- System on Chip (SoC)
- I/O Ports
- 10 SATA3 ports (6 Gb/s) 2 10G LAN ports 1 dedicated IPMI LAN RJ45 port 2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 VGA port Support for 8 SAS3 ports via optional expansion card 2 NVMe support with optional cables 1 COM port (rear) 2 SATA DOM power connectors TPM 1.2 Tower / 4U rackmount Model CSE-745BTS-R1K28BP2
- Chassis
- Height 17.8 inches (452 mm) x Width 7 inches (178 mm) x Depth 25.5 inches (647 mm) Net weight: 59 lbs (26.76 kg) Gross weight: 62 lbs (28.12 kg)
- Dimensions and Weight
- PCI Express: 2 PCI-E x16 slots
- Expansion Slots
- 3 PCI-E x8 slots M.2 Interface: 1 SATA/PCI-E 3.0 x2 (EPYC 7002 processor platform supports only PCI-E M.2 type module) Form factor: 2280, 22110 Key: M-key
- Drive Bays
- 8 hot-swap 3.5-inch drive bays: 8 SATA3 by default or 8 SAS3 3 5.25-inch peripheral bays Supports 8 SATA3 or 8 SAS3 hard drives
- Power Supply
- Redundant high-efficiency 1280W digital power supplies with PMBus 1.2 Platinum
- Operating Environment
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Network Controllers
- 2 Intel® X550 10GBase-T Ethernet controllers 1 Realtek RTL8211E PHY (dedicated IPMI)
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
- SATA3
- SATA3 (6 Gb/s)
- Video
- ASPEED AST2500 BMC
- Fans
- 3 built-in 9400 RPM hot-swap fans 2 external rear 9400 RPM hot-swap fans
- PC Health Monitoring
- Monitors CPU core voltage, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator Tachometer status monitoring for up to 8 fans Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulation (PWM) fan connectors CPU and chassis environment monitoring CPU thermal trip support Temperature control for 8 fan connectors I 2 C temperature sensing logic CPU/System overheat indicator Chassis intrusion detection Chassis intrusion header
- Motherboard
- H11DSi-NT
- BIOS
- BIOS type: AMI 128Mb SPI Flash EEPROM BIOS features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
