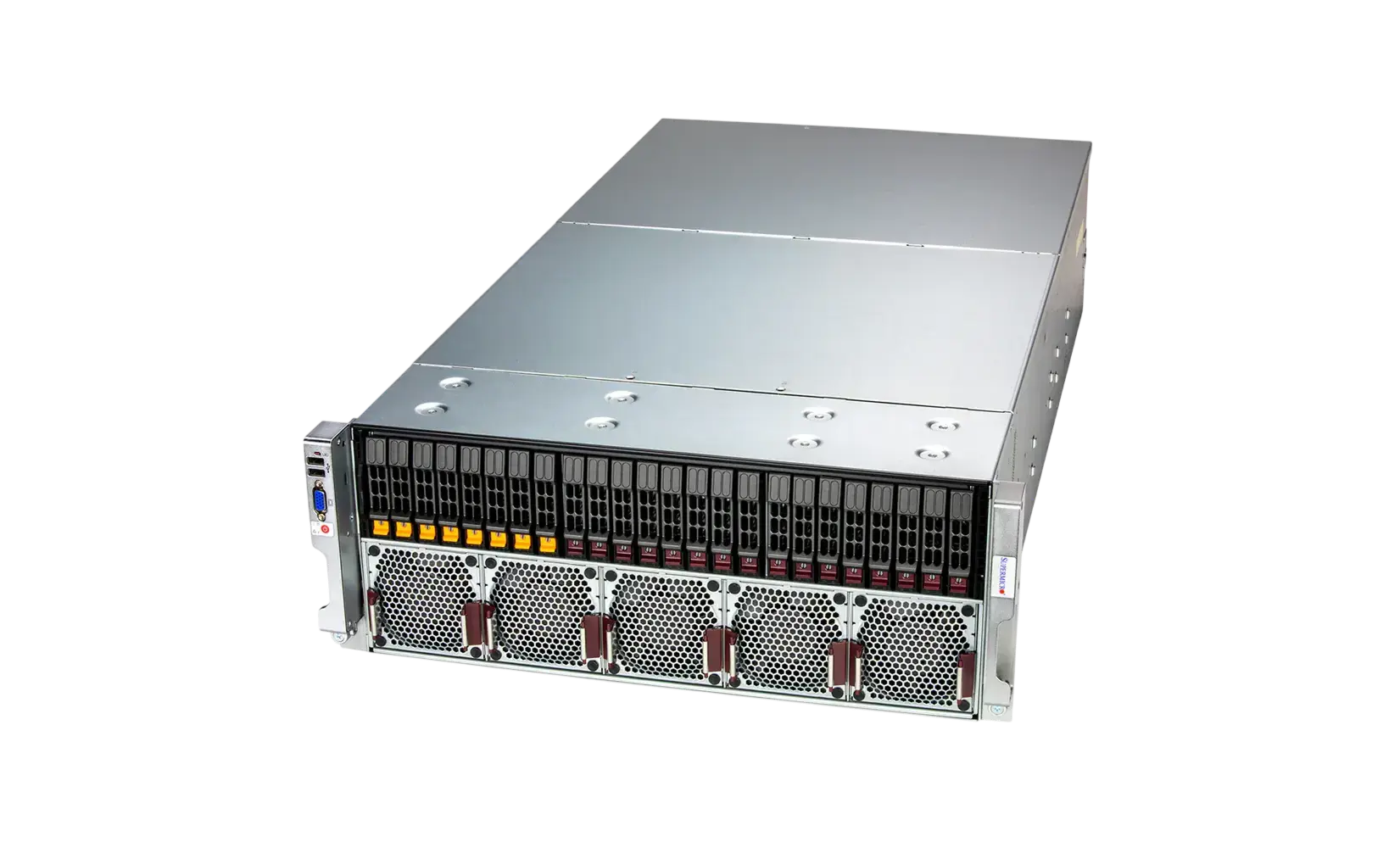

Supermicro AS-4145GH-TNMR 8SFF/NVMe
- Condition
- New
- Manufacturer
- Supermicro
- Form factor
- 4U
- RAM
- 512GB (HBM3)
- GPU
- 4 x AMD Instinct MI300A
- Accelerator manufacturer
- AMD
- Accelerator model
- AMD Instinct MI300A
- Installed GPU/APU count
- 4 onboard accelerators
- Maximum GPU/APU count
- 4 onboard accelerators
- Memory per accelerator
- 128GB
- Total accelerator memory
- 512GB
- GPU memory type
- HBM3 unified memory
- Accelerator memory bandwidth
- Up to 5.3 TB/s per APU
- Accelerator form factor
- APU SH5 socket
- Accelerator interconnect
- AMD Infinity Fabric Link
- Accelerator-to-CPU interface
- Integrated coherent CPU-GPU architecture with unified HBM3
- Supported compute data types
- FP64, FP32, TF32, BF16, FP16, FP8, INT8
- Accelerator virtualization
- SR-IOV, GPU passthrough
- MIG support
- Not supported
- Software ecosystem
- AMD ROCm
- Maximum system power
- 8.1kW
- Cooling
- Air cooling with up to 10 heavy-duty counter-rotating 80 mm fans
- Recommended workloads
- AI and large language models, HPC, scientific research, simulation and analytics
- Dimensions
- 177 x 438.4 x 848.7 mm (H x W x D)
- Weight
- 54.7 kg
Need a technical consultation on choosing a server?
Submit a requestSupermicro AS-4145GH-TNMR 8SFF/NVMe is a 4U enterprise server storage configuration with eight front fixed 2.5-inch NVMe positions. It is designed for AI factories, research centers, cloud providers and enterprise data centers that need fast local storage for AI and HPC workloads.
Key features:
-
Storage basket and service access: The selected storage basket comprises eight front fixed 2.5-inch NVMe positions. Front placement keeps the drives accessible during planned maintenance without describing the fixed positions as hot-swap.
-
Installed accelerator subsystem: The installed accelerator subsystem contains 4 x AMD Instinct MI300A APU. It provides 512GB ECC HBM3 unified memory in aggregate. AMD Infinity Fabric links the four MI300A APUs.
-
Storage topology and data path: Eight front fixed NVMe positions form the local data tier, while two internal M.2 NVMe slots support boot or service storage. A separate 24-bay SAS/SATA topology is a different platform option.
-
Enterprise compute platform: The compute platform uses four AMD Instinct MI300A APUs in SH5 sockets; CPU and GPU resources share 512GB of ECC HBM3 unified memory. This unified-memory design supports data-intensive AI and HPC workflows without a separate host-memory tier.
-
Management and availability: Dedicated BMC connectivity and Supermicro lifecycle-management tools, together with 4 x 2700W redundant (3+1) 80 PLUS Titanium power supplies, support remote administration, component monitoring, planned service operations and resilient data-center operation.
Use cases:
-
AI model development: Uses the installed AMD Instinct MI300A APU subsystem for model development, training and fine-tuning workloads suited to the accelerator architecture.
-
Inference and production services: Provides parallel compute and accelerator memory for LLM, multimodal and enterprise inference services.
-
HPC, simulation and analytics: Accelerates scientific computing, numerical simulation, engineering, analytics and other parallel workloads supported by the installed accelerator subsystem.
-
Data-intensive pipelines: Combines the specified 8SFF/NVMe storage basket with high-bandwidth accelerator and network paths for datasets, checkpoints, staging and local scratch storage.
Supermicro AS-4145GH-TNMR 8SFF/NVMe is a precisely defined 8SFF/NVMe storage configuration for organizations that need this drive basket, installed AMD Instinct MI300A APU acceleration and dependable enterprise lifecycle management.
