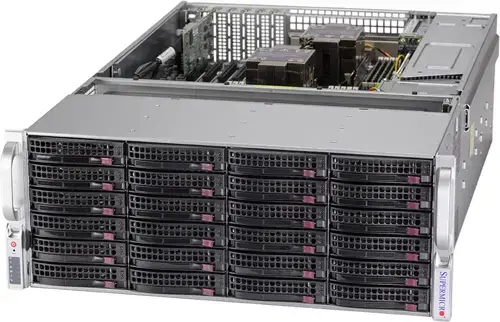

Supermicro SSG-640P-E1CR36L
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
2 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Supermicro SSG-640P-E1CR36L — Specifications
- Condition
- New
- Manufacturer
- Supermicro
- Form factor
- 4U
- Supported CPU
- 2 x Intel Xeon Scalable 3rd Gen
- Supported RAM
- DDR4 DIMM 16 slots (4 TB)
- Processor
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 120-270W cores up to 38C/96T
- Memory Capacity
- Up to 57MB cache Memory capacity: 16 DIMM slots Up to 4TB: 16x 256GB DRAM Memory type: 3200 MHz ECC DDR4 RDIMM LRDIMM DCPMM Memory voltage 1.2V Error detection ECC
- Chipset
- Intel® C621A
- I/O Ports
- 1 dedicated IPMI LAN RJ45 port 4 USB 3.0 ports (4 rear_USB) 1 VGA port(s) 1 COM port(s) (1 rear) 2 Super DOM (Disk on Module) ports
- Chassis
- 4U rackmount Model CSE-847BTS-R1K68LPBP4
- Dimensions and Weight
- Height 7 inches Width 17.2 inches Depth 27.5 inches Package 15 inches (H) x 27 inches (W) x 39 inches (D) Net weight: 65.5 lbs (29.7 kg) Gross weight: 102.5 lbs (46.4 kg)
- PCI-Express (PCI-E) Expansion Slots
- Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x8 LP Note PCIe slot 1/2 occupied by JBOD expansion/storage controller.
- Drive Bays
- 36 hot-swap 3.5-inch SATA3/SAS3 drive bays (4 hybrid 3.5-inch NVMe) 1 M.2 NVMe slot
- Power Supply
- Redundant 1600W power supplies with PMBus
- Operating Environment
- Operating temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating temperature: -40°C to 60°C (-40°F to 140°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Network Connection
- 2x 10GbE BaseT with Intel® X550
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- BIOS Type
- AMI 128 MB SPI Flash EEPROM
- Fans
- 7 high-performance 8 cm fans
- Motherboard
- Super X12DPi-NT6
- PC Health Monitoring
- 4+1 phase voltage regulator Monitors for CPU cores, chipset voltages, memory Fans with tachometer Pulse Width Modulation (PWM) fan connectors Status monitor for speed control CPU and chassis environment monitoring Thermal control for fan connectors
- Software
- IPMI 2.0 SUM NMI Watch Dog SuperDoctor® 5
- Power Configurations
- ACPI power management Power-on mode for AC power recovery
