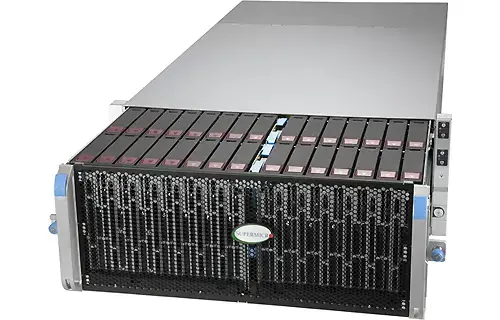

Server Supermicro SSG-640SP-E1CR60
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
2 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Incl shipping across EU
Supermicro SSG-640SP-E1CR60 — Specifications
- Processor
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 120-205W
- Memory Capacity
- Memory capacity: 16 DIMM slots Up to 4TB: 16x 256GB DRAM Memory type: 3200 MHz ECC DDR4 RDIMM LRDIMM Memory voltage 1.2V ECC
- Chipset
- Intel® C621A
- I/O Ports
- 1 dedicated IPMI LAN RJ45 port 2 RJ-45 10Gbase-T ports 2 USB 3.0 ports (2 rear_USB) 1 VGA port(s) 1 COM port(s) (1 rear) 2 Super DOM (Disk on Module) ports
- Chassis
- 4U rackmount Model CSV-947STS-R2K05P
- Dimensions and Weight
- Height 7 inches Width 17.6 inches Depth 34.1 inches Package 29.92 inches (H) x 31.89 inches (W) x 44.88 inches (D) Net weight: 118 lbs (53.5 kg) Gross weight: 170.5 lbs (77.3 kg)
- PCI-Express (PCI-E) Expansion Slots
- Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP
- Drive Bays
- 60 hot-swap 3.5-inch SATA3/SAS3 drive bays (4 dedicated 2.5-inch NVMe) 2 2.5-inch 7mm drive bays 2 M.2 NVMe slots
- Power Supply
- Redundant 2000W power supplies with PMBus AC input 100–127V AC / 50–60Hz 200–240V AC / 50–60Hz +12V Max: 83.3A / Min: 0A (100–127V AC) Max: 166.7A / Min: 0A (200–240V AC) 12V SB: Max: 2.1A / Min: 0A
- Operating Environment
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 60°C (-40°F to 140°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Network Connection
- 2x 10GbE BaseT with X550
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- BIOS Type
- AMI 128 MB SPI Flash EEPROM
- Fans
- 6 high-performance 8 cm fans
- Motherboard
- Super X12DSC-6
- PC Health Monitoring
- 4+1 phase voltage regulator Monitors for CPU cores, chipset voltages, memory Fans with tachometer Pulse Width Modulation (PWM) fan connectors Status monitor for speed control CPU and chassis environment monitoring Thermal control for fan connectors
- Software
- IPMI 2.0 SUM NMI Watch Dog SuperDoctor® 5
