Server Supermicro SYS-212HA-TN
New
Specification
Manufacturer
Supermicro
Form factor
2U
Supported CPU
1 x Intel Xeon 6900
Supported RAM
DDR5 DIMM 12 slots (3 TB)
Supermicro SYS-212HA-TN — Specifications
- Processor
- Intel® Xeon® 6900 series processors with P-cores Core count: Up to 128C/256T, Cache up to 504MB Supports CPU TDP up to 500W (with air cooling)
- Memory Capacity
- Slot count: 12 DIMM slots Maximum memory (1DPC): up to 3TB 8800 MT/s ECC DDR5 MRDIMM Maximum memory (1DPC): up to 3TB 6400 MT/s ECC DDR5 RDIMM
- BIOS Type
- AMI 64 MB SPI Flash
- On-Board Devices
- NVMe, RAID 0/1/5/10 support (Intel® VROC RAID key required) Network Connection Via AIOM

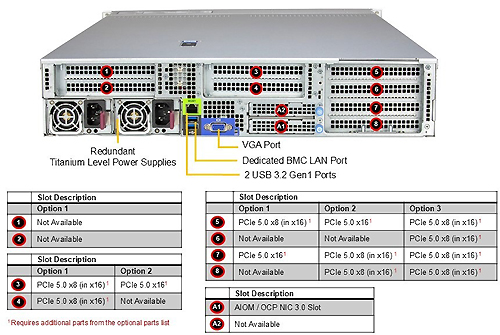

- I/O Ports
- LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.2 Gen1 ports (rear) Video: 1 VGA port
- Software
- SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
- Form Factor
- 2U Rackmount
- Expansion Slots
- PCI-Express (PCIe) Configuration Option A: 1 double-width PCIe 5.0 x16 FH/10.5"L slot 1 PCIe 5.0 x8 FHFL slot 1 double-width PCIe 5.0 x16 HHFL slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B: 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x8 FHHL slot 1 double-width PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

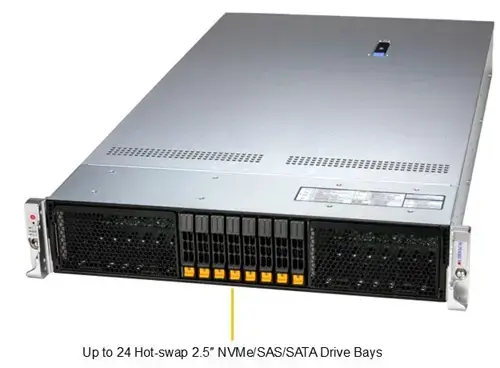

- Drive Bays
- Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 24 bays 24 front hot-swap 2.5" SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) 2 M.2 NVMe slots (M-key 2280/22110/25110, VROC required for RAID)
- Power Supply
- 2 redundant 1200W (1 + 1) Titanium (96%) power supplies 2 x 1300W redundant (1 + 1) Gold (certification pending) power supplies 2x 1600W redundant (1 + 1) Titanium (96%) power supplies 2x 2600W redundant (1 + 1) Titanium (96%) power supplies 2x 2600W redundant (1 + 1) Titanium (96%) power supplies 2 redundant 2000W (1 + 1) Titanium (96%) power supplies
- Security
- Hardware: Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 compliant Features: Cryptographically signed firmware Secure boot Secure firmware updates Automatic firmware recovery Supply chain security: Remote attestation Runtime BMC protection System lockdown
- Monitoring
- CPU: Monitors for CPU cores, chipset voltages, memory Fans: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulation (PWM) fan connectors Temperature: CPU and chassis environment monitoring Thermal control for fan connectors
- Dimensions and Weight
- Height: 3.5" (88.9 mm) Width: 17.2" (437 mm) Depth: 31.74" (806.2 mm) Package: 9.96" (H) x 26.46" (W) x 43.31" (D) Weight: Gross weight: 75 lbs (34 kg) Net weight: 45 lbs (20.5 kg)

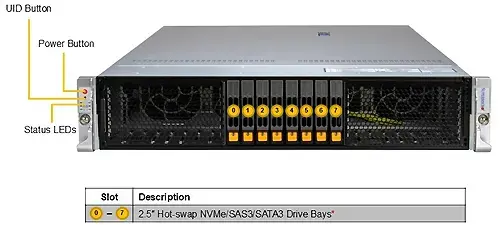

- Front Panel
- LED HDD Activity LAN1 Activity Power Status System Information Buttons Power on/off button UID button
- Fans
- 6 counter-rotating 60x60x56 mm fans
- Environmental Conditions
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
