Server Supermicro SYS-220P-C9RT
New
Specification
Manufacturer
Supermicro
Form factor
2U
Supported CPU
1 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Supermicro SYS-220P-C9RT — Specifications

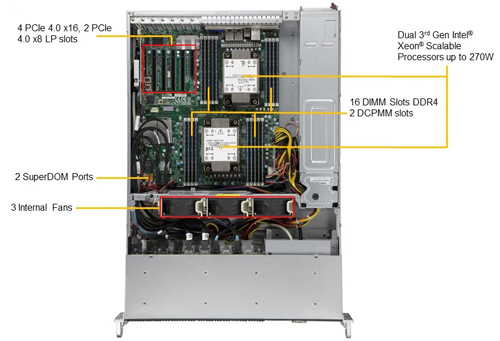

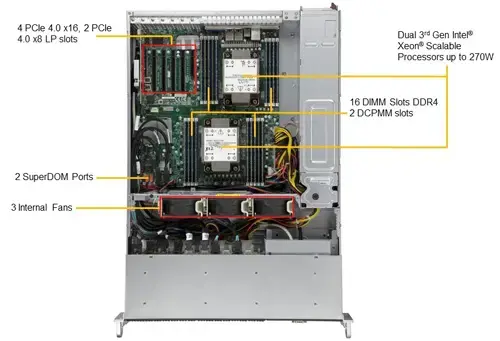

- Processor
- 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 270W
- Memory Capacity
- 16 DIMM slots Up to 4TB: PMem and DRAM
- Chipset
- Intel® C621A
- On-Board Devices
- 2 10GbE ports Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

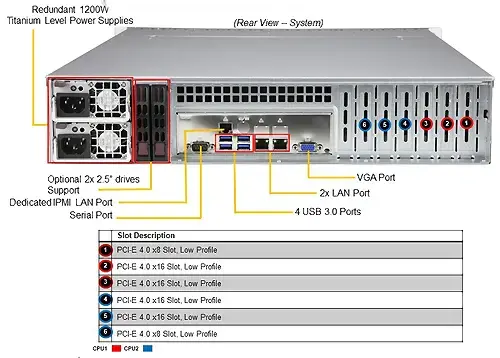

- I/O Ports
- 1 dedicated IPMI LAN port 2 USB 2.0 ports (2 front) 4 USB 3.0 ports (4 rear) 1 VGA port 2 COM ports (1 front, 1 rear) 2 Super DOM (Disk on Module) ports
- Software
- Supermicro Out of Band (OOB) License (included in the unit) IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI
- Form Factor
- 2U Rackmount
- Dimensions and Weight
- Height 3.5 inches (89 mm) Width 17.2 inches (437 mm) Depth 24.8 inches (630 mm) Net weight: 38 lbs (17.4 kg)
- Expansion Slots
- PCI-Express (PCI-E) Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x8 LP

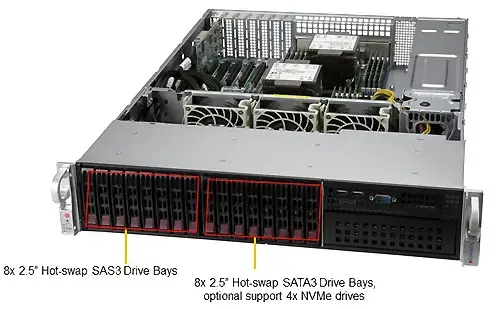

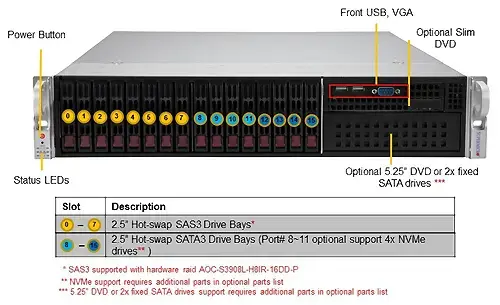

- Drive Bays
- 16 hot-swap 2.5-inch drive bays (8 SAS drive bays with Broadcom® 3908 HW RAID controller (port # 0 ~ 7 on backplane) and 8 SATA drive bays (port # 8 ~ 15 on backplane) with Intel® C621A (4 SATA drive bays (backplane port # 8 ~ 11) can be converted to NVMe drives with additional 2x CBL-SAST-0821-1) 1 M.2 NVMe 1x (slim or 5.25-inch) DVD drive bay (optional)
- Power Supply
- Redundant 1200W Titanium power supplies, levels 100–240V AC and 200–240V DC
- Environmental Specifications
- Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 60 ° C (-40 ° F to 140 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
- Fans
- 3 high-performance medium cooling fans at 13.5 thousand rpm with hot-swap capability and optimal speed control 1 air shroud
