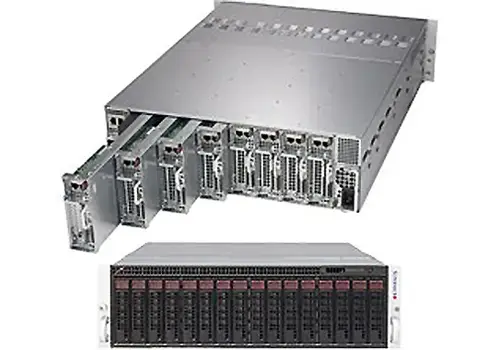

Supermicro SYS-5039MC-H8TRF MicroCloud
/

Server Supermicro SYS-5039MC-H8TRF MicroCloud

Name: Server Supermicro SYS-5039MC-H8TRFMicroCloud
Brand: Supermicro
SKU: SYS-5039MC-H8TRF MicroCloud
Availability: BackOrder

Ask manager

New

Specification

Manufacturer

Supermicro

Form factor

Supported CPU

1 x Intel Xeon E-2100

Supported RAM

DDR4 DIMM 4 slots (128 GB)

Full Specs

Price

Ask manager

Incl shipping across EU

Contact manager

Whats App

info@servermall.com

Supermicro SYS-5039MC-H8TRF MicroCloud — Specifications

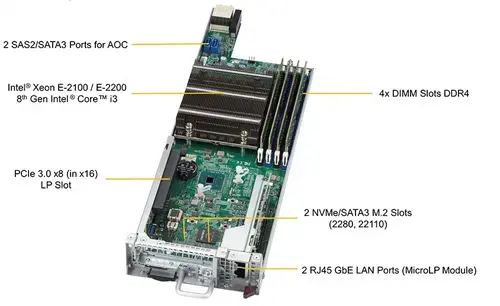

Processor: Supports Intel® Xeon® E-2100 / E-2200 series processors, 8th Gen Intel® Core ™ i3 / Pentium® / Celeron® processors Max 8 cores
Memory Capacity: Up to 128GB unbuffered ECC, up to DDR4-2666 MHz 4 DIMM slots
Chipset: Intel® C246
On-Board Devices: SATA3 (6 Gb / s) via Intel® C246 controller RAID 0, 1, 5, 10 Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2500 BMC Dual LAN with Intel® i350 Graphics Aspeed AST2500
I/O Ports: 2 SATA3 ports (6 Gb / s) 2 RJ45 Gigabit Ethernet LAN ports 1 dedicated IPMI LAN port with RJ45 connector
Form Factor: 3U
Dimensions and Weight: Height 5.21 inches (132.5 mm) Width 17.26 inches (438.4 mm) Depth 23.2 inches (589 mm) Net weight: 28.21 kg (62.2 lbs)
Expansion Slots: Micro-LP 1 PCI-E 3.0 x8 LP slot 1 Micro-LP slot (upgradable to MicroLP) M.2 M.2 interface: 2 PCI-E 3.0 x4 M.2 form factor: 2280, 22110 M.2 key: M key

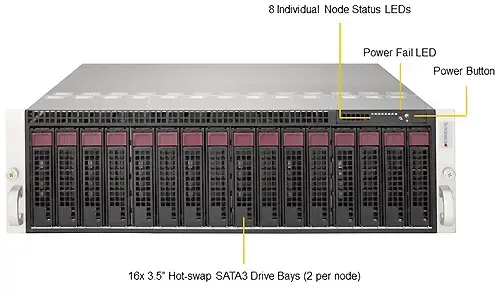

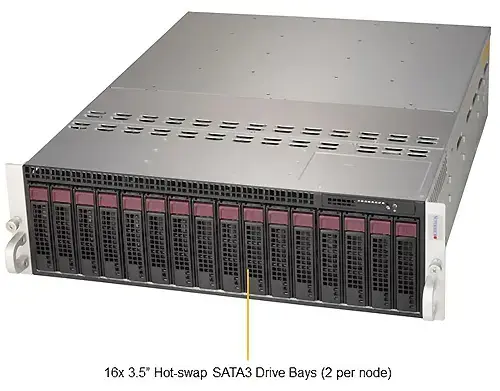

Drive Bays: 2 3.5-inch SATA3 drives or 2 2.5-inch SATA3 drives with optional kits

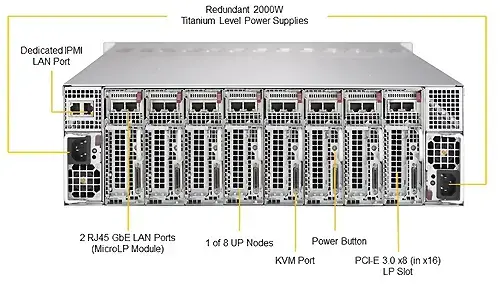

Power Supply: Redundant 2000W power supplies
Environmental Specifications: Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 70 ° C (-40 ° F to 158 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
Fans: 4 heavy-duty 8 cm fans with optimal cooling zone
