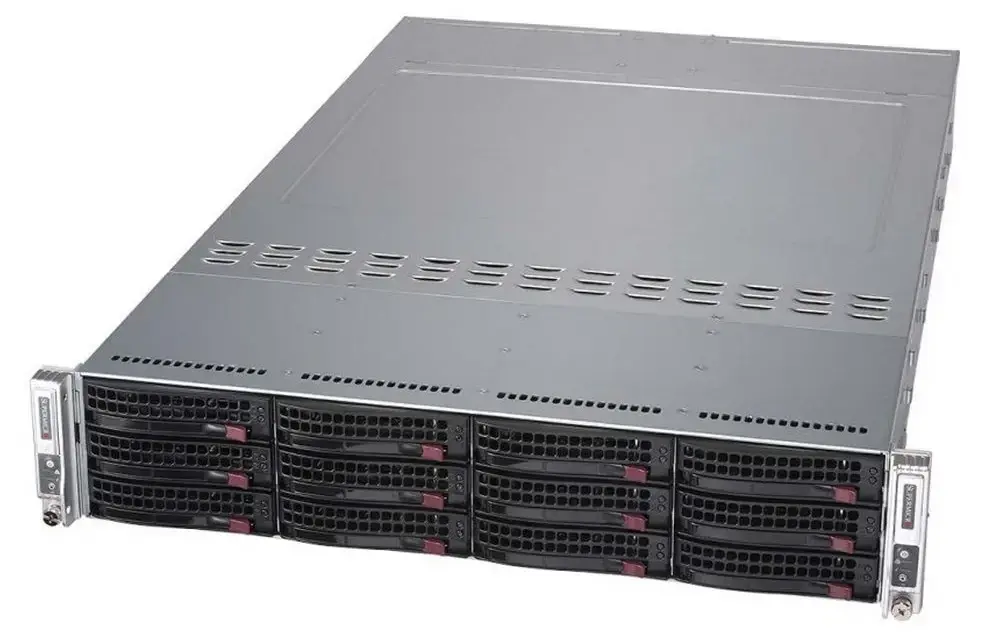

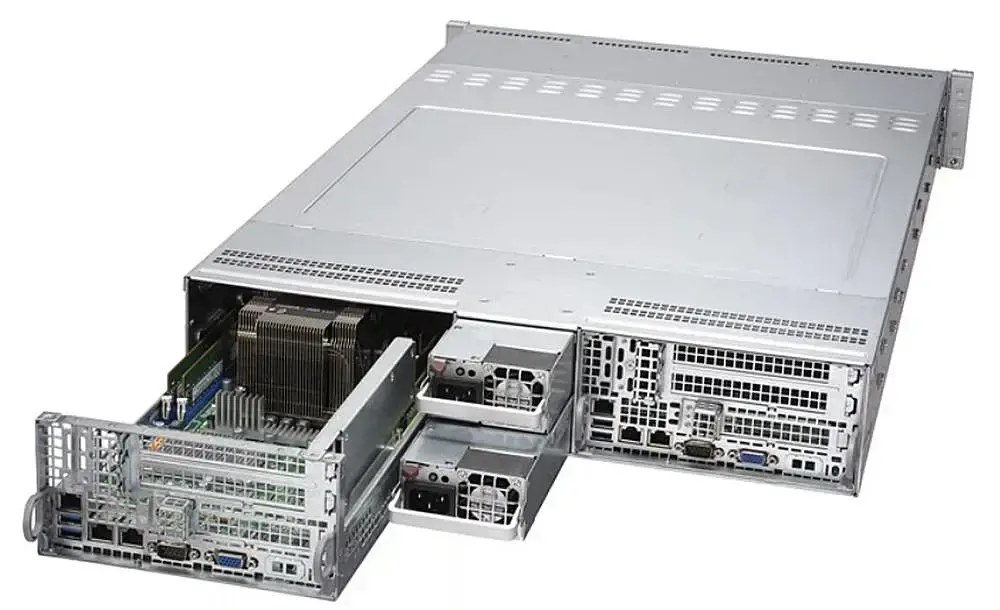

Server Supermicro SYS-6029TR-DTR
New
Specification
Manufacturer
Supermicro
Form factor
2U
Supported CPU
2 x Intel Xeon Scalable 2nd Gen
Supported RAM
DDR4 DIMM 8 slots (2 TB)
Supermicro SYS-6029TR-DTR — Specifications
- Form Factor
- 2U
- Motherboard
- Super X11DPT-L, TDP 70-140W
- Processors
- 2 x 2nd Gen Intel Xeon Scalable (Cascade Lake/Skylake).br> Socket LGA 3647
- Chipset
- Intel® C621
- Memory
- 8 DIMM slots, up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
- PCIe Expansion Slots
- 2x PCI-E 3.0 x8 (FH/HL) or various configurations with PCI-E 3.0 x4.
- Drive Bays
- 6 hot-swap 3.5" SATA3 drive bays. Support for 2x SATA DOM + 1x SATA/NVMe M.2 (22110/2280)
- Network Controllers
- 2x RJ45 Gigabit Ethernet LAN ports
- Management
- Dedicated IPMI 2.0 LAN port

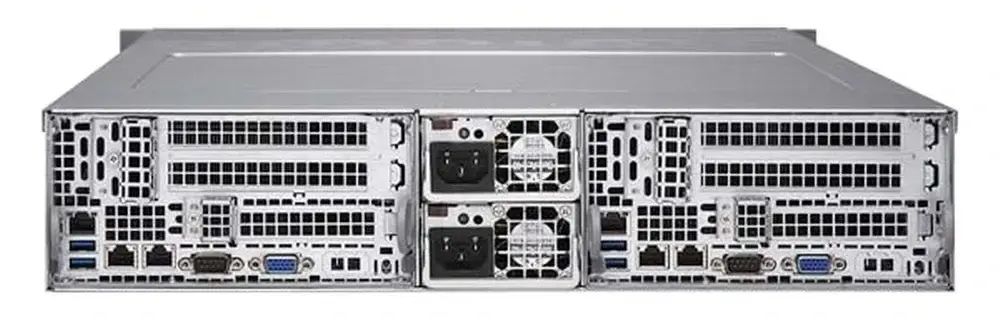

- I/O Ports
- SATA: 6 SATA3 ports (6 Gb/s) LAN: 2 RJ45 Gigabit Ethernet LAN ports 1 dedicated IPMI LAN RJ45 port Total 2 USB 3.0 ports (rear) 1 VGA port 1 COM Port (1 rear) TPM 2.0 Header
- Graphics
- ASPEED AST2500 BMC
- Power Supplies
- 2 x 1200W redundant, Titanium level
- Dimensions and Weight
- Width 17.25" (438 mm) Height 3.47" (88 mm) Depth 28.5" (724 mm) Gross weight: 61.1 lbs (27.71 kg) Net weight: 42.1 lbs (19.1 kg)
