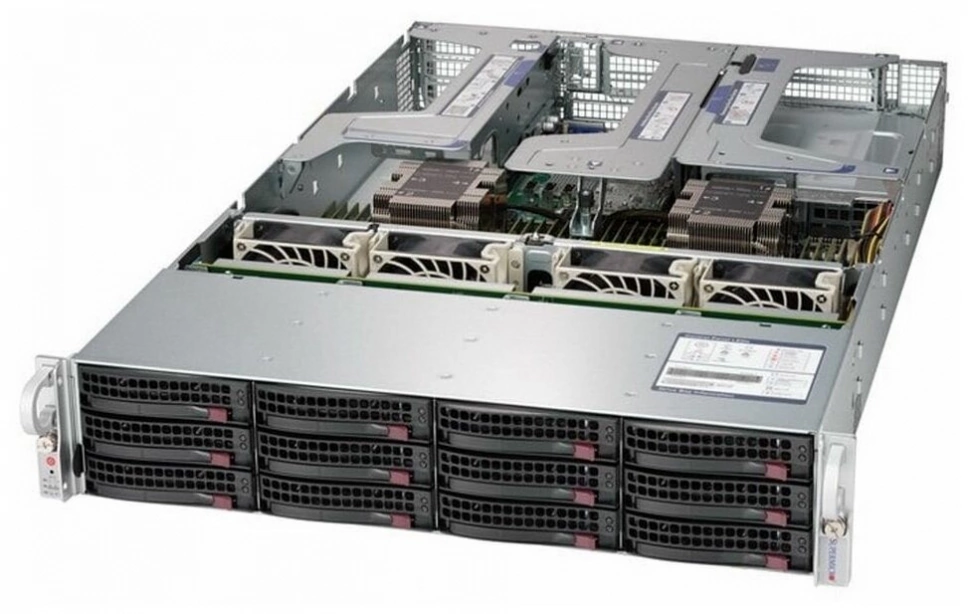

Server Supermicro SYS-6029U-E1CR4
New
Specification
Manufacturer
Supermicro
Form factor
2U
Supported CPU
2 x Intel Xeon Scalable 2nd Gen
Supported RAM
DDR4 DIMM 24 slots (6 TB)
Supermicro SYS-6029U-E1CR4 — Specifications
- Motherboard
- Super X11DPU
- Processor/Cache
- Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable processors and Intel® Xeon® Scalable processors, Dual UPI up to 10.4 Gb/s CPU TDP support 70-205W Up to 28 cores Note: To support 2nd Gen Intel® Xeon® Scalable processors (codename Cascade Lake-R), BIOS version 3.2 or higher required.
- System Memory

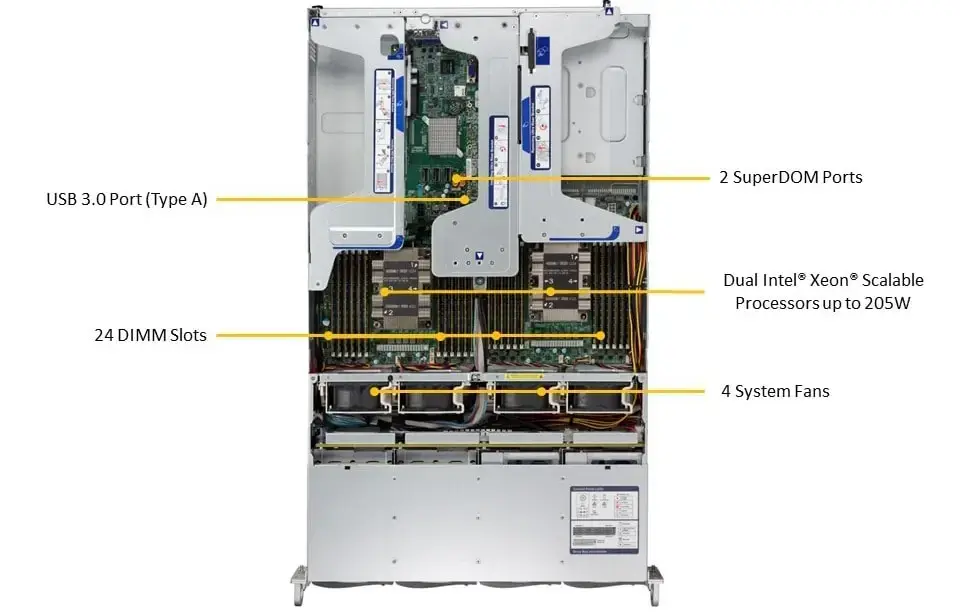

- 24 DIMM slots up to&nbsp, 6TB 3DS ECC DDR4-2933 MHz† RDIMM/LRDIMM memory Intel® Optane™ DCPMM†† support Memory type: 2933/2666/2400/ 2133 MHz ECC DDR4 RDIMM/LRDIMM 2666 MHz ECC DDR4 NVDIMM Note: 2933 MHz in two DIMMs per channel can be achieved using memory purchased from Supermicro Cascade Lake only.
- On-Board Devices
- Intel® C621 Chipset SATA3 (6 Gb/s) with RAID 0, 1, 5, 10 Network connection: 4 GbE ports via AOC-2UR68-i4G (Intel i350) IPMI Intelligent Platform Management Interface version 2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics: ASPEED AST2500 BMC
- I/O

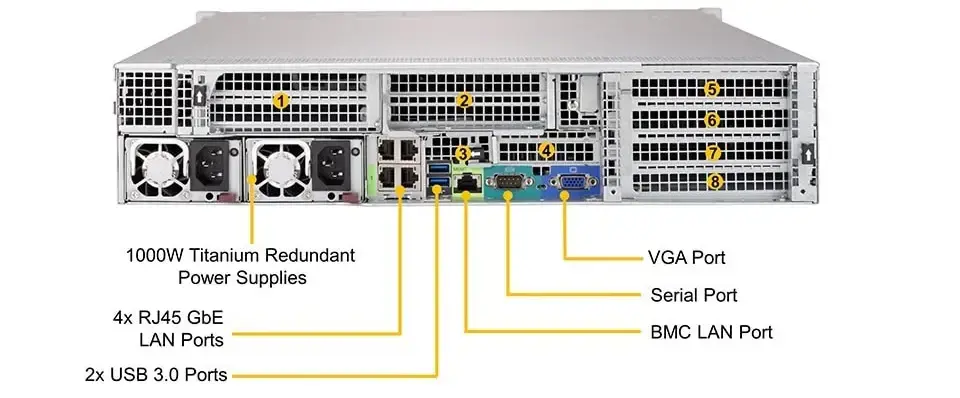

- 12 SAS3 ports via expander and AOC 4 RJ45 Gigabit Ethernet LAN ports 1 dedicated IPMI LAN RJ45 port 3 USB 3.0 ports (2 rear, 1 type A) 2 VGA ports (1 rear, 1 built-in) 1 Serial header 2 SuperDOM (Disk on Module) ports
- BIOS Type
- AMI 32Mb SPI Flash ROM
- Management
- Software:&nbsp, Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Power configurations: ACPI Power Management
- Health Monitoring
- CPU: Monitors CPU core status, chipset voltages, memory. 4+1 phase switching voltage regulator Fans with tachometer control Status monitor for speed control Pulse Width Modulation (PWM) fan connectors CPU and chassis status monitoring Thermal control for fan connectors
- Chassis
- Form Factor: 2U Rackmount Model: CSE-829U2E1C4-R1K02-T
- Dimensions and Weight

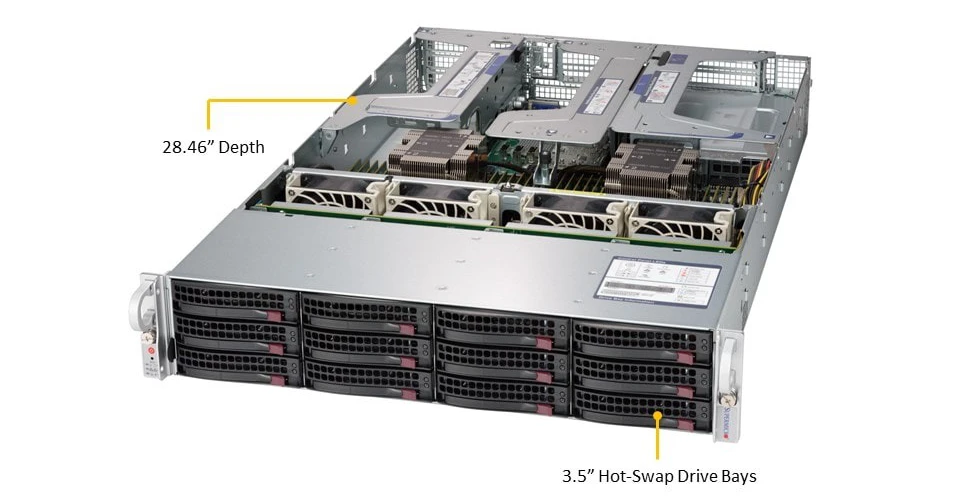

- Height: 3.5" (88.9 mm) Width: 17.2" (437 mm) Depth: 28.46" (723 mm) Package: 10.4" (H) x 23.8" (W) x 43.6" (D) Weight Net weight: 36 lbs (16.4 kg) Gross weight: 72 lbs (32.7 kg)
- Front Panel

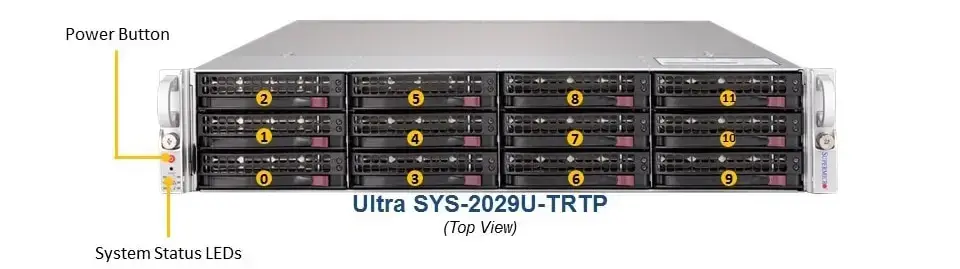

- LED: Power status indicator Hard drive activity indicator Network activity LEDs System information overheat/UID indicator Buttons: Power on/off button System reset button
- Expansion Slots
- 1 PCI-E 3.0 x16 (FH, 10.5" L) 5 PCI-E 3.0 x8 (FH, 10.5" L) 1 PCI-E 3.0 x8 (LP) 1 PCI-E 3.0 x8 (internal LP)
- Drive Bays
- 12 hot-swap 3.5-inch drive bays 12 SAS3 connectors via AOC option (4 hybrid ports - option 4 NVMe) Note: additional memory card required M.2 1 x M.2 PCI-E 3, 0x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) using optional riser card (see optional components list) 2 x M.2 PCI-E 3, 0x4 M-key NVMe (2260/2280/22110) using optional AOC-SLG3-2M2 card
- System Cooling
- 4 powerful 8 cm PWM fans
- Power Supply
- Redundant 1000W power supplies with PMBus Total output power 800W: 100-127V AC 1000W: 200-240V AC 1000W: 200-240V DC (CCC only) (W x H x D): 73.5 x 40 x 203 mm Input 100-127V AC / 9.8 - 7A / 50-60Hz 200-240V AC / 7-5A / 50-60Hz 200-240V DC / 7-5A (CCC only) +12V Max.: 66.7A / Min: 0A (100-127V AC) Max.: 83A / min: 0A (200-240V AC) Max.: 83A / Min: 0A (200-240V DC) 12Vsb Max.: 2.1A / min: 0A Output type 25-pair gold finger connectors
- Operating Conditions
- RoHS compliant Environmental requirements. Operating temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
