Server Supermicro SYS-740A-T
New
Specification
Manufacturer
Supermicro
Form factor
Tower
Supported CPU
1 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 16 slots (6 TB)
Supermicro SYS-740A-T — Specifications
- Processor
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 270W
- Memory Capacity
- 16 DIMM slots Up to 4TB: 16x 256GB DRAM Up to 6TB: 8x 256GB DRAM and 8x 512GB PMem Memory type: 3200 MHz ECC DDR4 RDIMM, LRDIMM Intel® Optane™ persistent memory 200 series
- Chipset
- Intel® C621A
- On-Board Devices
- 2 1GbE ports Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

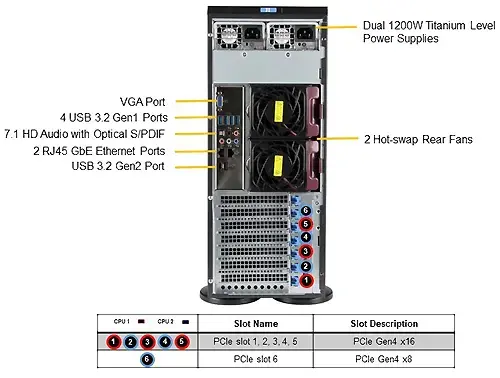

- I/O Ports
- 2 SuperDOM ports 2 RJ45 1GbE connectors (shared IPMI on LAN port 1) 6 USB 3.2 Gen1 ports (2 front_USB 4 rear_USB) 1 USB 3.2 Gen2 port(s) (1 rear_USB) 1 VGA port(s)
- Software
- Redfish API IPMI 2.0 SSM SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5
- Form Factor
- 4U Rackmount / Tower

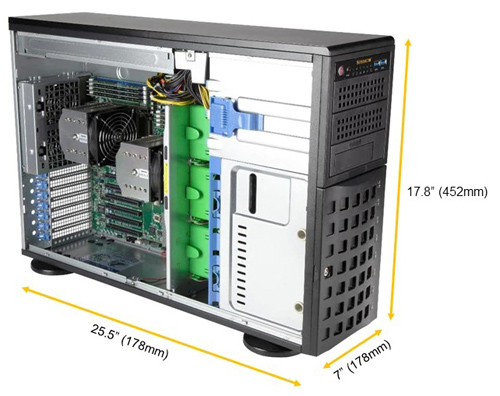

- Dimensions and Weight
- Height 17.8 inches (452 mm) Width 7 inches (178 mm) Depth 25.5 inches (647 mm) Net weight: 59 lbs (26.76 kg)

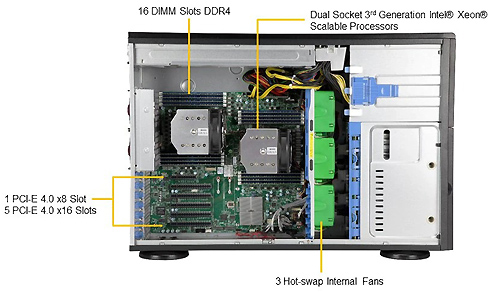

- Expansion Slots
- PCI-Express (PCI-E) Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 FHFL Slot 6: PCI-E 4.0 x8 FHHL

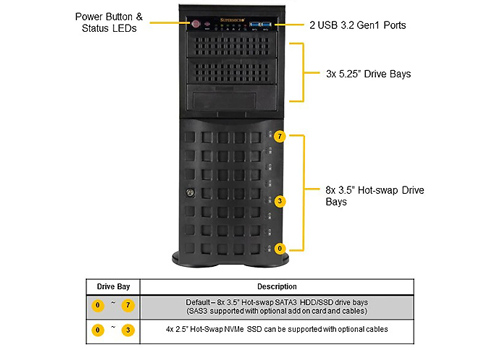

- Drive Bays
- 8 hot-swap 3.5-inch SATA drive bays (SAS/NVMe optional) (4 hybrid 2.5-inch NVMe) 2 M.2 NVMe slots 3 5.25-inch drive bays (optional)
- Power Supply
- 2 1200W power supplies
- Environmental Specifications
- Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 60 ° C (-40 ° F to 140 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
- Fans
- 5 heavy-duty 8 cm fans with optimal fan speed control
