DELL PowerEdge R530 Server
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
2 x Intel® Xeon® E5-2600 v4 processors, up to 18 cores per processor
Memory
DDR4: up to 12 x DIMM (384 GB), speed up to 2400 MT/s
Storage controllers
- Internal RAID: PERC S130, PERC H330, PERC H730, PERC H730P
- External RAID: PERC H830
- External HBA: 12Gbps SAS HBA
Drive bays
Front bays
- Up to 8 x 3.5-inch SAS/SATA/Nearline SAS/SSD
Rear bays
- N/A
Power supplies
- 450 W cabled PSU
- 495 W hot-plug PSU
- 750 W hot-plug PSU
- 1100 W hot-plug PSU
- 1100 W -48 VDC hot-plug PSU
Cooling and fans
Air cooling; Fresh Air 2.0 capable
Dimensions
- Height: 86.8 mm (3.4 inches)
- Width: 434 mm (17.1 inches) without ears
- Depth: 648 mm (25.5 inches) without bezel; 646 mm (25.4 inches) with bezel
- Weight: up to 28.2 kg (62 lb)
Form factor
2U rack server
Embedded management
- IPMI 2.0
- Dell OpenManage Essentials
- Dell OpenManage Mobile
- Dell OpenManage Power Center
- iDRAC8 with Lifecycle Controller
- iDRAC8 Express
- iDRAC8 Enterprise
Security
- TPM
- ECC memory
- Optional security bezel
- Dual internal SD module
- Hot-plug redundant power supplies
- Hot-plug redundant fans
Networking
- 4 x 1GbE LOM
GPU options
Not specified in the provided spec sheet
Ports

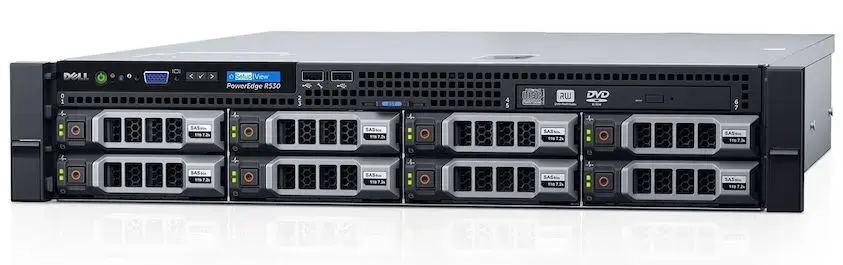

Front ports
- 1 x USB 2.0
- 1 x USB management / iDRAC Direct
- 1 x VGA
Internal ports
- 1 x USB

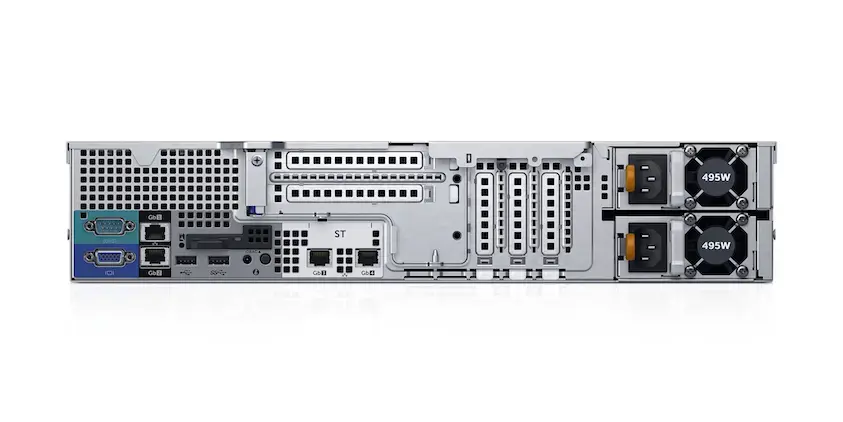

Rear ports
- 2 x USB
- 1 x Serial
- 1 x VGA
- 1 x Dedicated iDRAC Ethernet
PCIe
Up to 5 x PCIe slots: 3 x PCIe 3.0, 2 x PCIe 2.0
Operating systems
- Microsoft Windows Server 2008 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2012 R2
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware vSphere ESXi
- Citrix XenServer
- Red Hat Enterprise Virtualization
I/O configurations
Standard rear I/O
Dell PowerEdge R530 Review
Dell EMC PowerEdge R530 is a two-processor medium-level 2U server mounted in a 19″ cabinet or rack. The server is designed to be a flexible tool for a wide range of tasks. It also strikes the perfect balance between cost and performance. Dell R530 is suitable for databases, e-commerce, high performance computing (HPC), virtualization, video streaming, data storage and analysis, e-mail server, and many others.
Scaleability
Dell R530 is a general-purpose highly scalable server to maximize application performance. For that, Dell Technologies engineers gave R530 the following characteristics:
- Support of up to two Intel Xeon E5-2600 v4 (up to 18 cores per processor) processors,
- Up to 12 DDR4 slots, up to 512 GB RDIMM, 1 TB LRDIMM, 2400 MT/s,
- Support of PCIe 2.0 and PCIe 3.0 standards with ability to scale to 2 × PCIe 2.0 (x1/x4) and 4 × PCIe 3.0 (x8/x16/x16),
- Support of various network parameters:
- 4 RJ-45 × 1 Gbps — standard,
- 2 RJ-45 × 1 Gbps — option,
- 4 RJ-45 × 1 Gbps — option,
- 2 RJ-45 × 10 Gbps — option,
- 2 SFP+ × 10 Gbps — option.
- Hot-swappable disks:
- Up to 8 × 2.5 or 3.5 SAS/SATA/NL-SAS.
- S130 software controller and RAID hardware controller support: PERC H330, PERC H730, PERC H730P, and PERC H830 main bus front end adapter,
- Up to two hot-swappable supply units:
- AC: 495W, 750W, 1100W, 1100W,
- DC: 750W.
- Cable-connected: 450W.
Control and automation
Dell R530 supports iDRAC 8 Basic out-of-the-box technology: it is a proprietary implementation of IPMI 2.0 protocol to control the server as if it is right in front of you. Fee-based Enterprise and Express level license includes additional functionality.
Dell OpenManage to easily control equipment and automate routine processes.
OpenManage Essentials to save system administrators' time spent on implementation, update, monitoring and maintenance of IT infrastructure. You can centralize control and decrease labour payment expenses.
IDRAC Quick Sync technology with wireless NFC module and OpenManage Mobile app to get important notifications and monitor and control the server using your smartphone.
Security
Dell R530 is based on Dell Technologies cybersecure architecture. The server receives firmware updates and security patches during its whole lifecycle. That's why your system administrator can reliably implement critical business processes and cybersecure them.
- Secure logistics ensure that the server will travel from the manufacturing plant to the end-client safely,
- Cryptographic signature and Secure Boot protocol (part of UEFI specification) ensure data security,
- Cryptoprocessor (TPM 2.0) installed in a motherboard chipset is available as an option,
- iDRAC 9 Server Lockdown function prevents any unauthorized access and protects the server from malware (requires Enterprise-level or Datacenter-level fee-based license),
- System Erase function to remove all data (including cache and logs) from any drives (HDD, SSD, system memory) remotely, quickly, and securely. Thanks to that, you can reset the server to factory settings, dispose it or sell it on the secondary market without any risks of confidential data leak,
- Software and hardware RAID controllers.
