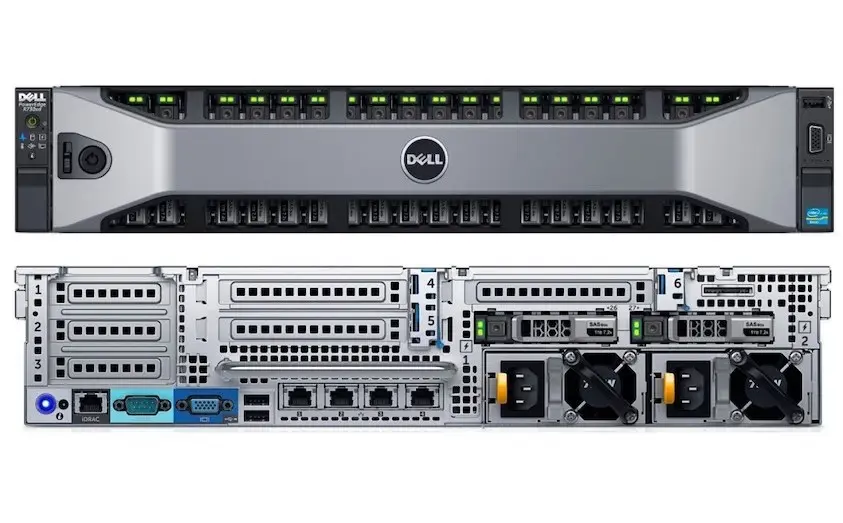

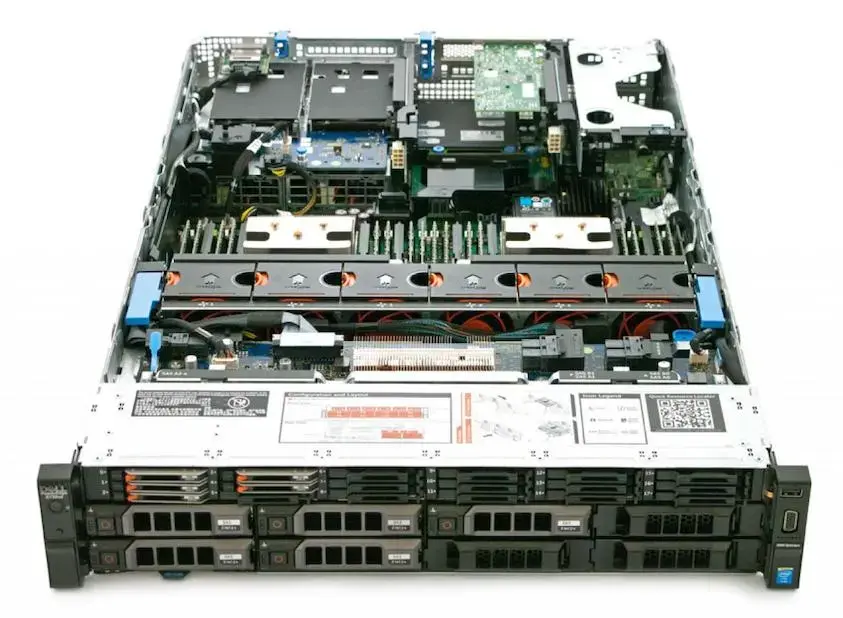

DELL PowerEdge R730xd Server
You might be interested in
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
- Form factor
- 2U rack
- Processor
- Intel® Xeon® processor E5-2600 v3 product family
- Processor sockets
- 2
- Dimensions
- H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
- Cache
- 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18
- Chipset
- Intel C610 series chipset
- Memory
- Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
- I/O slots
- Up to 6 x PCIe 3.0 slots plus dedicated RAID card slot
- RAID controllers
- Internal controllers: PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA - Drive bays
- Internal hard drive bay and hot-plug backplane:
Up to 16 x 3.5” SAS, SATA, nearline SAS, SSD + 2 x 2.5” drives
Up to 18 x 1.8” SAS, SATA, nearline SAS, SSD drives + 8 x 3.5” SAS, SATA, nearline SAS, SSD drives, + 2 x 2.5” HDD
Up to 26 x 2.5” SAS, SATA, nearline SAS, SSD, PCIe SSD drives - Maximum internal storage
- SAS, SATA, nearline SAS, SSD, PCIe SSD:
Up to 68.5TB with 18 x 1.8” 960GB SATA SSD + 8 x 3.5” 1.8TB SAS HDD
Up to 47.5TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
Up to 99.6TB with 12 x 3.5 6TB NL SAS HDD or SSD +4 x 3.5 6TB SAS + 2 x 2.5 1.8TB SAS HDD or SSD - Embedded NIC
- 4 x 1GbE, 2x10+2GbE, 4 x 10GbE NDC
- Power supplies
- Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W AC power supply;
- Availability
- ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, tool-less chassis, support for high availability clustering and virtualization, proactive systems management alerts, iDRAC8 with Lifecycle Controller
- Remote management
- iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
- Systems management
- IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft®
System Center
• Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool®
and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database
Manager - Rack support
- ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
- Operating systems
- Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64
includes Hyper-V®)
Microsoft Windows Server 2008/2012 R2, x64 (includes
Hyper-V)
Microsoft Windows HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
Optional embedded hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Dell PowerEdge R730xd Review
Dell EMC PowerEdge R730xd is a two-processor 2U server mounted in a 19″ cabinet or rack. R730xd gives you exceptional scaleability and computation capabilities. It is perfect for a wide variety of enterprise-level tasks which require high computing powers, storage, scalability, graphics, and other resources. You can use it to work with Big Data, analyze, store, process and transfer data (including tiered storage), as well as to implement software-defined storage (SDS): Microsoft Storage Spaces, VMware Virtual SAN (vSAN) and OpenStack Ceph.
Scaleability
Dell R730xd is a highly-scaleable server: you won't have to choose between high computing powers or large storage. To make Dell R730xd highly effective solution, Dell Technologies engineers gave it the following characteristics:
- Support of up to two Intel Xeon E5-2600 v4 (up to 22 cores and 56 thread per processor) processors,
- Up to 24 DDR4 slots, RDIMM and LRDIMM support, up to 3.072 TB, 2400 MT/s,
- Suuport of PCIe 3.0 with scaleability to 7 × PCIe 3.0 (x8/x16/x16/x16/x16/x16/x16) + 1 for RAID controller,
- Support of various network parameters:
- 4 RJ-45 × 1 Gbps — standard,
- 2 RJ-45 × 1 Gbps — option,
- 2 RJ-45 × 10 Gbps and 2 RJ-45 × 1 Gbps — option,
- 4 RJ-45 × 10 Gbps — option,
- 2 RJ-45 × 1 Gbps and 2 SFP+ × 10 Gbps — option,
- 4 SFP+ × 10 Gbps — option,
- 2 SFP+ × 10 Gbps — option,
- 2 SFP28 × 25 Gbps — option.
- Hot-swappable disks and various bins:
- Up to 24 + 2(HDD) × 2.5 SAS/SATA/Near-line SAS/SSD or PCIe SSD, as well as up to 4 NVMe Express Flash PCIe,
- Up to 16 × 2.5 SAS/SATA/Near-line SAS/SSD or PCIe SSD + 2 × 2.5 (HDD),
- Up to 18 × 1.8 SATA SSD.
- GPGPU can be installed as an option. The list of supported accelerator cards is available at the Dell.com/GPU.
- S130 software controller and RAID hardware controller support: PERC H330, PERC H730, PERC H730P, and PERC H830 main bus front end adapter,
- Hot-swappable supply units: Gold 1100W DC, Platinum 495W, 750W, Platinum+ 1100W, 1600W, Diamond 750W.
Control and automation
Dell R730xd supports iDRAC 8 Express out-of-the-box technology: it is a proprietary implementation of IPMI 2.0 protocol to control the server as if it is right in front of you. Express level license is part of rack-mounted server, tower server and modular 600-series (and above) system scope of supply. Fee-based Enterprise license includes additional functionality.
Dell EMC OpenManage to easily control equipment and automate routine processes.
OpenManage Essentials to save system administrators' time spent on implementation, update, monitoring and maintenance of IT infrastructure. You can centralize control and decrease labour payment expenses.
IDRAC Quick Sync technology with wireless NFC module and OpenManage Mobile app to get important notifications and monitor and control the server using your smartphone.
Security
Dell R730xd is based on Dell Technologies cybersecure architecture. The server receives firmware updates and security patches during its whole lifecycle. That's why your system administrator can reliably implement critical business processes and cybersecure them.
- Secure logistics ensure that the server will travel from the manufacturing plant to the end-client safely,
- Cryptographic signature and Secure Boot protocol (part of UEFI specification) ensure data security,
- Cryptoprocessor (TPM 2.0) installed in a motherboard chipset is available as an option,
- iDRAC 9 Server Lockdown function prevents any unauthorized access and protects the server from malware (requires Enterprise-level or Datacenter-level fee-based license),
- System Erase function to remove all data (including cache and logs) from any drives (HDD, SSD, system memory) remotely, quickly, and securely. Thanks to that, you can reset the server to factory settings, dispose it or sell it on the secondary market without any risks of confidential data leak,
- Software and hardware RAID controllers.
