Dell PowerEdge R670 8SFF
Free shipping on orders over £500 in the EU, £500 in the UK, and $3,000 in the USA
You might be interested in
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
2 x Intel® Xeon® 6 processors, up to 144 E-cores or 86 P-cores per processor
Memory
DDR5: up to 32 x RDIMM (8 TB), speed up to 6400 MT/s, registered ECC only
Storage controllers
- Internal RAID: Front PERC H365i/H965i/H975i
- Boot: BOSS-N1 DC-MHS HWRAID 1 with 2 x M.2 NVMe SSDs, M.2 interposer or USB
Drive bays
Front bays
- Up to 20 x EDSFF E3.S Gen5 NVMe SSD
- Up to 8 x 2.5-inch SAS/SATA/NVMe SSD
- Up to 10 x 2.5-inch SAS/SATA SSD
Rear bays
- Up to 2 x EDSFF E3.S Gen5 NVMe SSD
Power supplies
- 800 W / 1100 W Platinum
- 800 W / 1100 W / 1500 W / 1800 W Titanium
- 1500 W 277 VAC/HVDC Titanium
- 1400 W -48 VDC
Cooling and fans
Air cooling or Direct Liquid Cooling; up to 4 hot-swappable dual-fan modules
Dimensions
- Height: 42.8 mm (1.69 inches)
- Width: 482 mm (18.98 inches)
- Depth: up to 829.44 mm (32.66 inches)
- Weight: up to 20.42 kg (45.02 lb)
Form factor
1U rack server
Embedded management
- iDRAC
- iDRAC Direct
- iDRAC RESTful API with Redfish
Security
- Cryptographically signed firmware
- Data at Rest Encryption with SEDs and local or external key management
- Secure Boot
- Secured Component Verification with hardware integrity check
- Secure Erase
- Silicon Root of Trust
- System Lockdown
- TPM 2.0 FIPS, CC-TCG certified
- Chassis Intrusion Detection
Networking
- OCP NIC 3.0: up to 4 cards, front or rear
- Network options include 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
GPU options
Up to 3 x 75 W single-width GPUs
Ports
Front ports
- 1 x USB 2.0 Type-C
- 1 x USB 2.0 Type-A, optional
- 1 x Mini-DisplayPort, optional
- 1 x DB9 Serial with front I/O
- 1 x Dedicated Ethernet port for iDRAC management
Internal ports
- 1 x USB 3.1 Type-A
Rear ports
- 1 x Dedicated Ethernet port for iDRAC management
- 2 x USB 3.1 Type-A
- 1 x VGA
PCIe
Up to 3 x16 Gen5 PCIe slots
Operating systems
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
I/O configurations
Rear I/O hot aisle or front I/O cold aisle
- Condition
- New
- Manufacturer
- Dell
- Form factor
- 2U
- Remote-Control-Modul
- iDRAC 9 Express
- Supported CPU
- 2 x Intel Xeon 6-E or 6-P
- Supported RAM
- DDR5 DIMM 16 slots (4096 GB)
- Power supply unit
- 1x Dell 800W Hot-Plug
- RAID controller
- RAID Dell S160
- HDD bays
- noHDD (up to Array HDD 2.5'' SFF)
- NIC card
- 2 port 1Gb/s (Integrated)
Need a technical consultation on choosing a server?

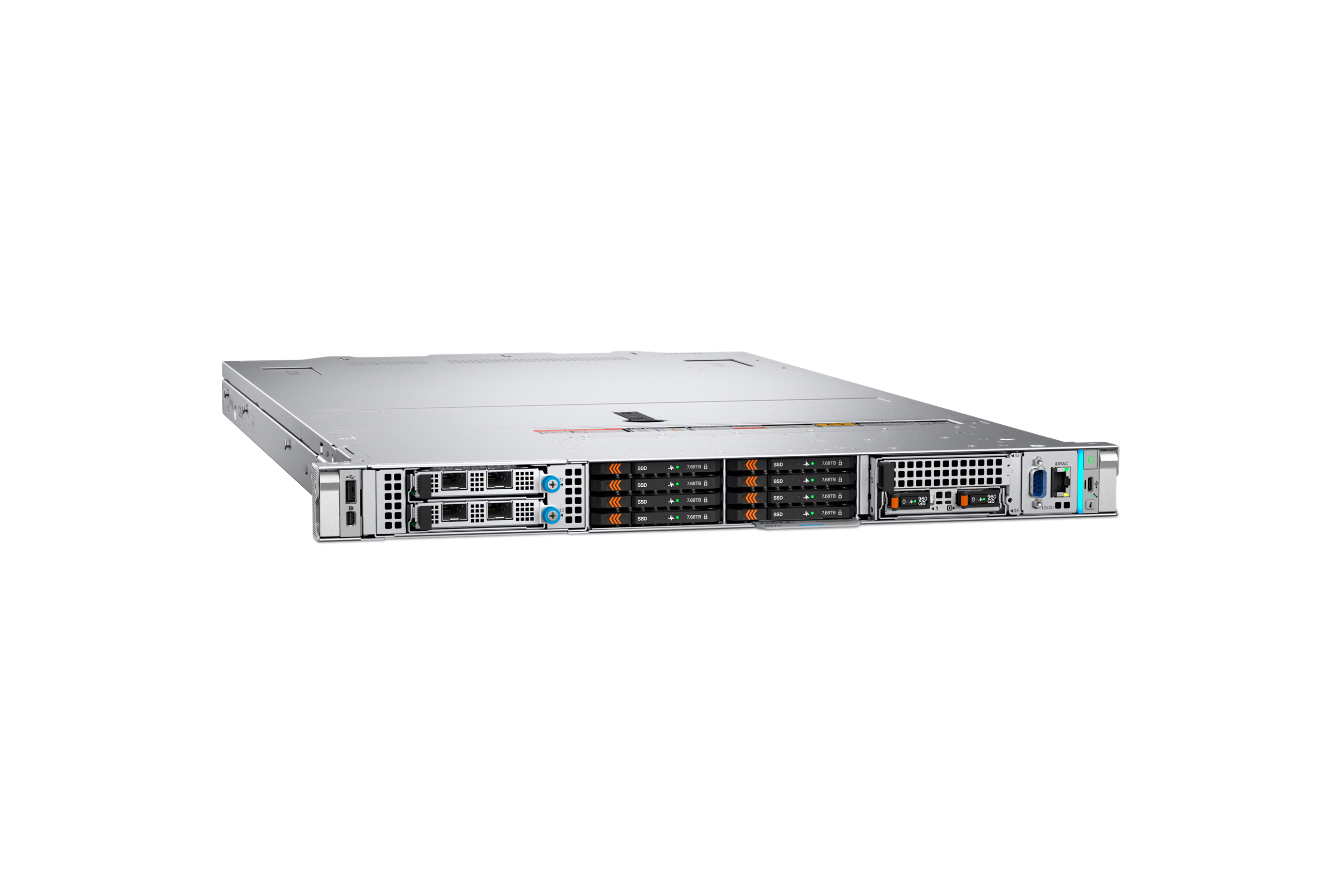

Submit a requestDell PowerEdge R670 8SFF is an 8-bay 2.5-inch SFF storage configuration for Dell’s compact 1U two-socket PowerEdge R670. It is designed for virtualization, cloud-native services, scale-out databases, and high-I/O enterprise workloads that require dense compute and flexible local storage.
Key features:
-

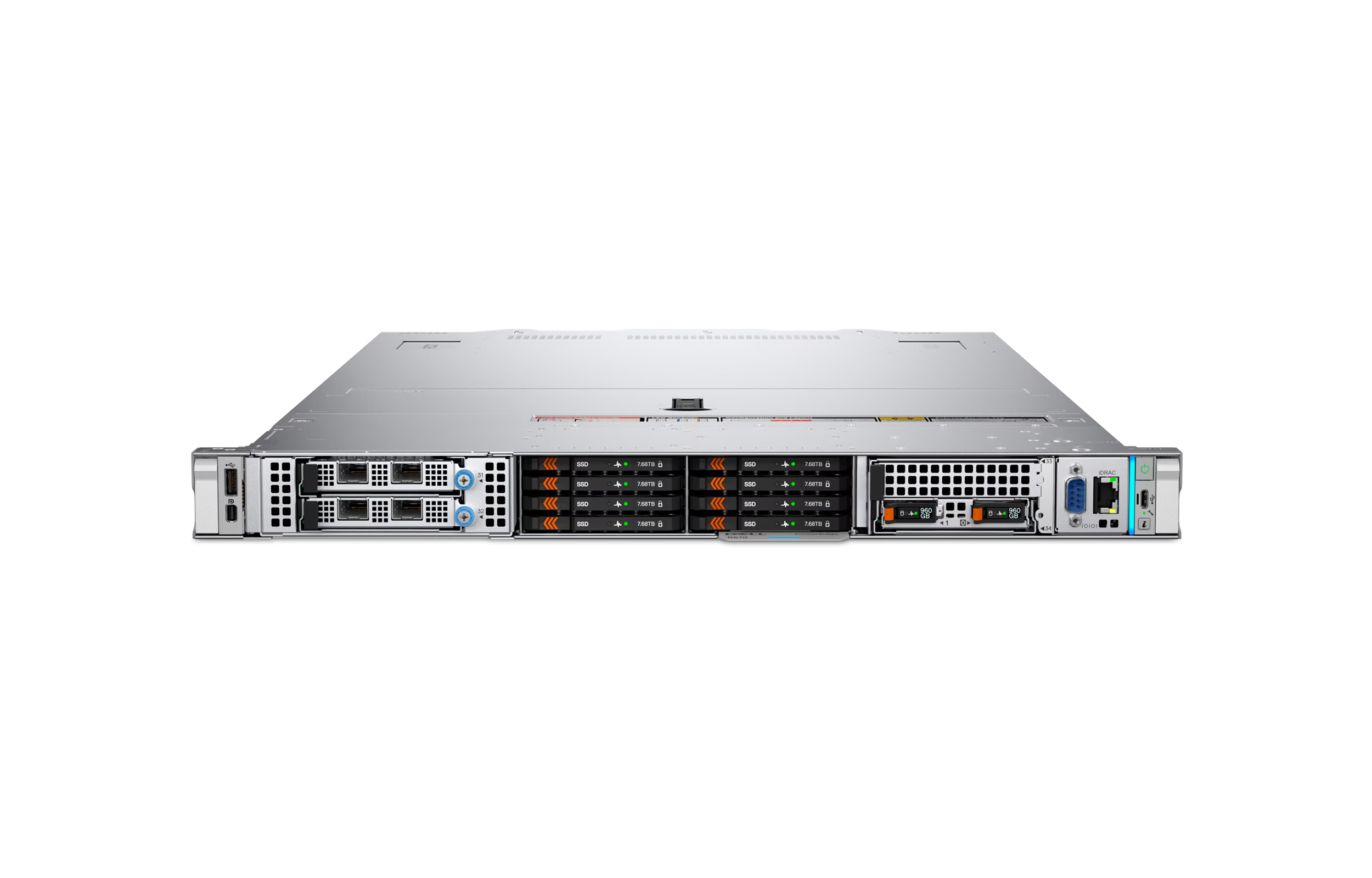

8 front 2.5-inch SFF bays: Provides eight front-accessible 2.5-inch SFF hot-swap bays, delivering serviceable local storage in a compact rack chassis.
-
SAS4/SATA, NVMe, or Universal: Dell offers separate 8-bay configurations for SAS4/SATA, NVMe direct or hardware RAID, and Universal storage. A Universal backplane can support SAS/SATA and NVMe; full Dell factory validation requires at least one drive from each family.
-
Dell PERC 12 controller options: Depending on the selected backplane, PERC H365i or H965i can provide hardware RAID for SAS4/SATA and supported NVMe builds, while direct-NVMe configurations bypass the PERC data path.
-
High-density two-socket 1U platform: Two Intel Xeon 6 processors, 32 DDR5 DIMM slots, and PCIe Gen5 I/O deliver high compute and memory density in a compact rack footprint.
-
Enterprise serviceability and management: Hot-swap drive access, iDRAC10, and Dell OpenManage tools simplify remote monitoring, lifecycle management, and planned maintenance.
Use cases:
-
Virtualization and private cloud: Provides dense local storage for virtual machines, hypervisors, and private cloud nodes.
-
Cloud-native and microservices: Suitable for Kubernetes, web services, DevOps platforms, and distributed applications that benefit from dense 1U infrastructure.
-
AI and high-performance I/O: NVMe configurations are well suited to model files, active datasets, caches, and temporary data that require fast local access.
-
Scale-out databases: Supports nodes where storage throughput, compute density, and predictable horizontal scaling are important.
Dell PowerEdge R670 8SFF is a versatile SFF configuration for businesses that need dense 1U compute and a validated choice of SAS4/SATA, NVMe, or Universal front storage.
