Dell PowerEdge R7725 24SFF
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
2 x 5th Generation AMD EPYC 9005 Series processors, up to 192 cores per processor
Memory
DDR5: up to 24 x RDIMM (6 TB), speed up to 6000 MT/s, registered ECC only
Storage controllers
- Internal RAID: PERC H365i/H965i/H975i
- Boot: BOSS-N1 DC-MHS
- External HBA: N/A
Drive bays
Front bays
- Up to 40 x EDSFF E3.S Gen5 NVMe
- Up to 24 x 2.5-inch SAS/SATA
- Up to 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
- Up to 12 x 3.5-inch SAS/SATA
Rear bays
- N/A
Power supplies
- 800 W / 1100 W Platinum
- 800 W / 1100 W / 1500 W / 1800 W / 2400 W / 3200 W Titanium
- 1500 W / 3200 W 277 VAC/HVDC Titanium
- 1400 W -48 VDC
Cooling and fans
Air cooling or Direct Liquid Cooling; up to 6 hot-plug fans
Dimensions
- Height: 86.8 mm (3.42 inches)
- Width: 482 mm (18.98 inches)
- Depth: up to 802.4 mm (31.59 inches)
- Weight: up to 36.1 kg (79.59 lb)
Form factor
2U rack server
Embedded management
- iDRAC10
- iDRAC Direct
- iDRAC RESTful API with Redfish
Security
- Cryptographically signed firmware
- Data at Rest Encryption with SEDs and local or external key management
- Secure Boot
- Secured Component Verification with hardware integrity check
- Secure Erase
- Silicon Root of Trust
- System Lockdown
- TPM 2.0 FIPS, CC-TCG certified
- Chassis Intrusion Detection
Networking
- 1 Gb dedicated BMC Ethernet port
- OCP NIC 3.0: up to 2 cards
GPU options
Up to 2 x 400 W double-width or 6 x 75 W single-width GPUs
Ports
Front ports
- 1 x USB 2.0 Type-A, optional LCP KVM
- 1 x USB 2.0 Type-C, HOST/BMC Direct
- 1 x Mini-DisplayPort, optional LCP KVM
Internal ports
- 1 x USB 3.1 Type-A

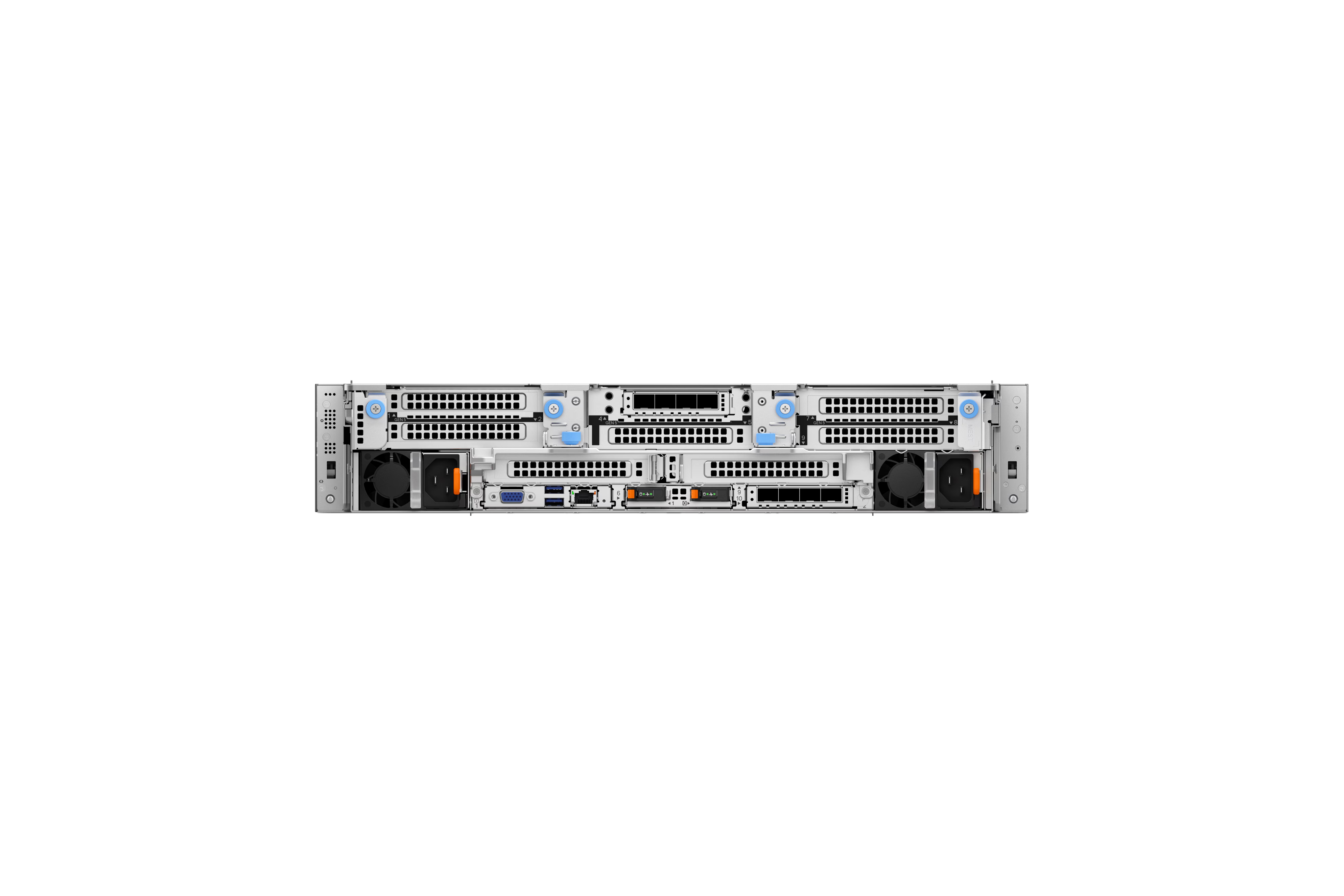

Rear ports
- 1 x Dedicated BMC Ethernet
- 2 x USB 3.1 Type-A
- 1 x VGA
PCIe
Up to 8 x PCIe Gen5 slots with x8 or x16 connectors
Operating systems
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux
- VMware ESXi
I/O configurations
Rear I/O
Need a technical consultation on choosing a server?

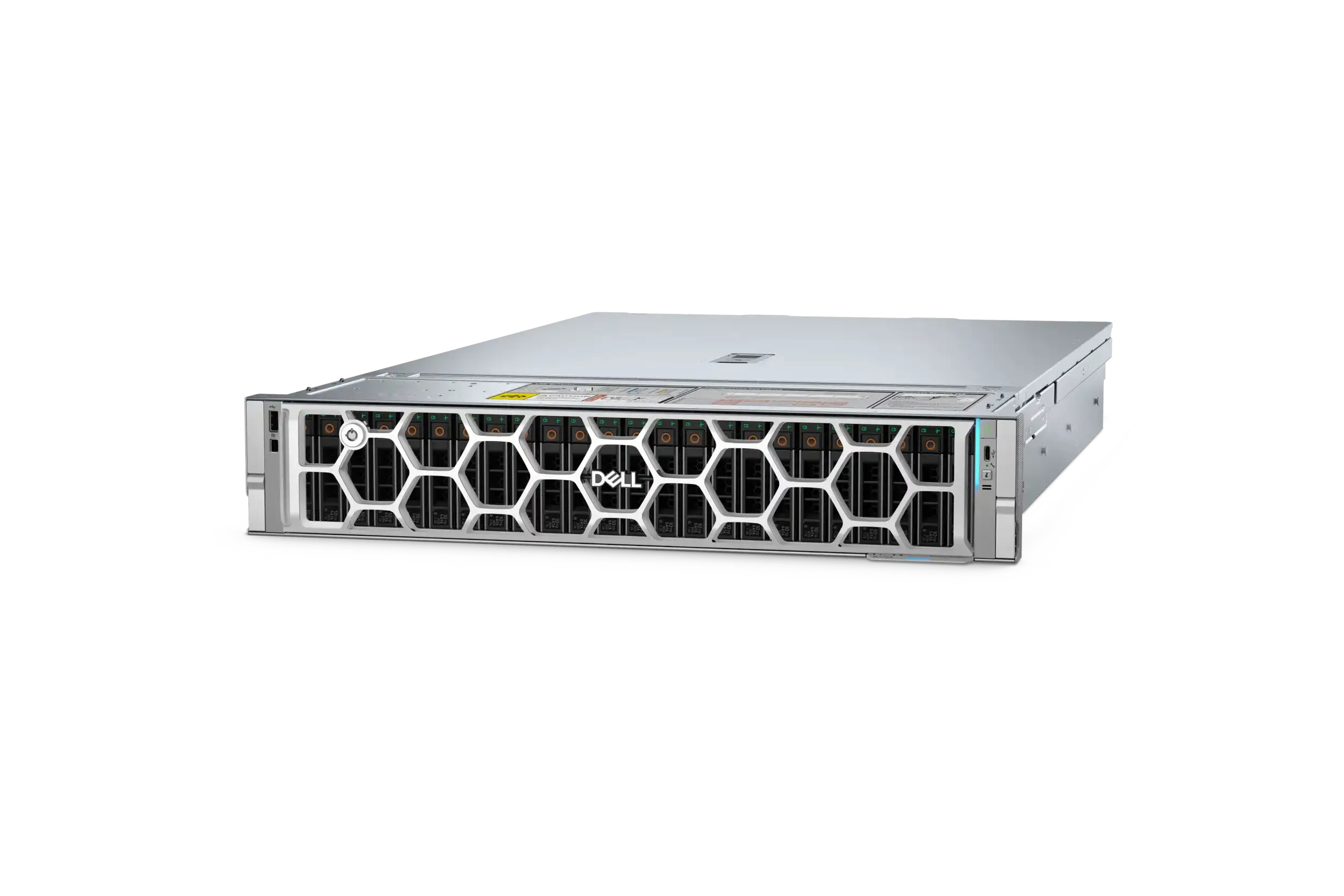

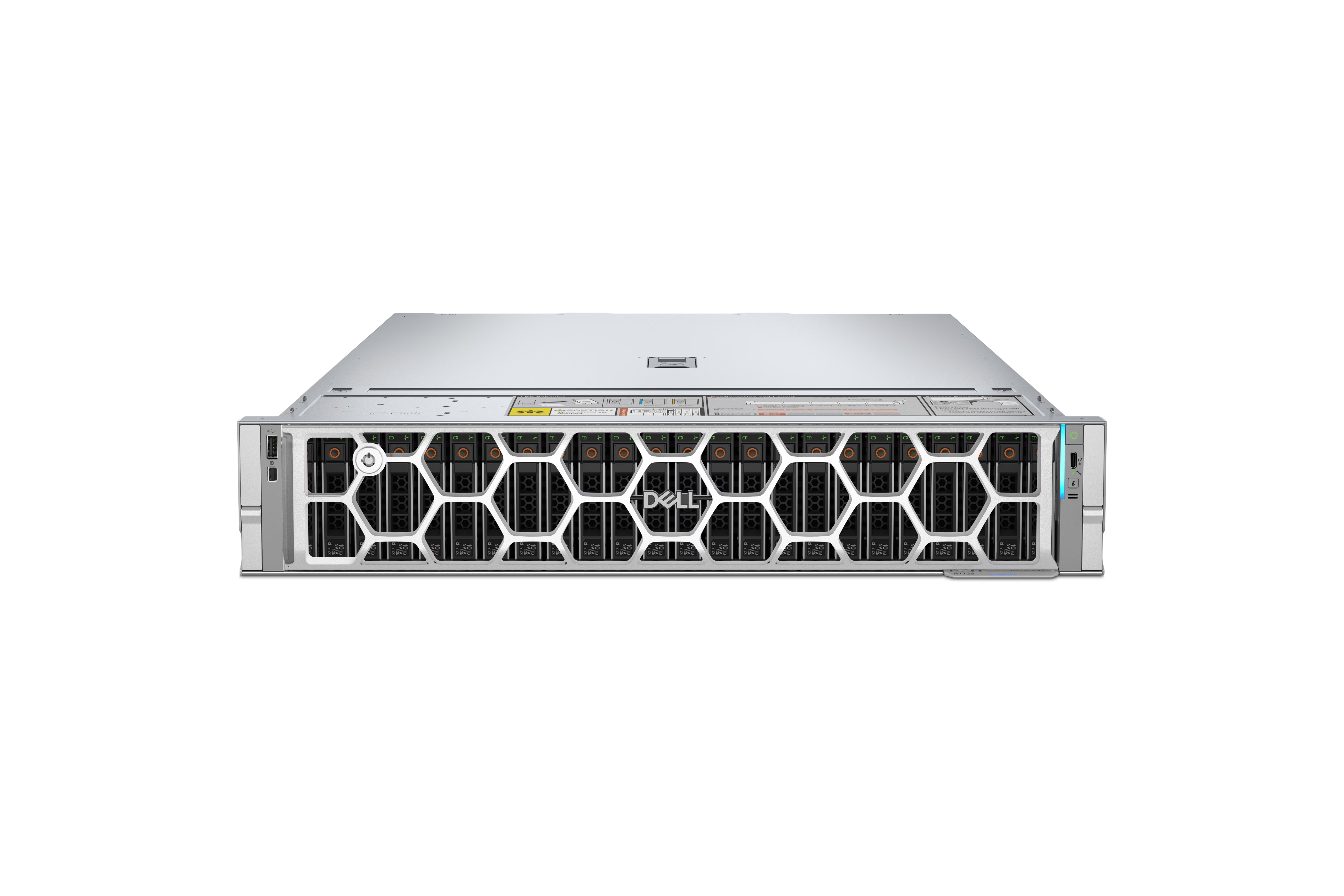

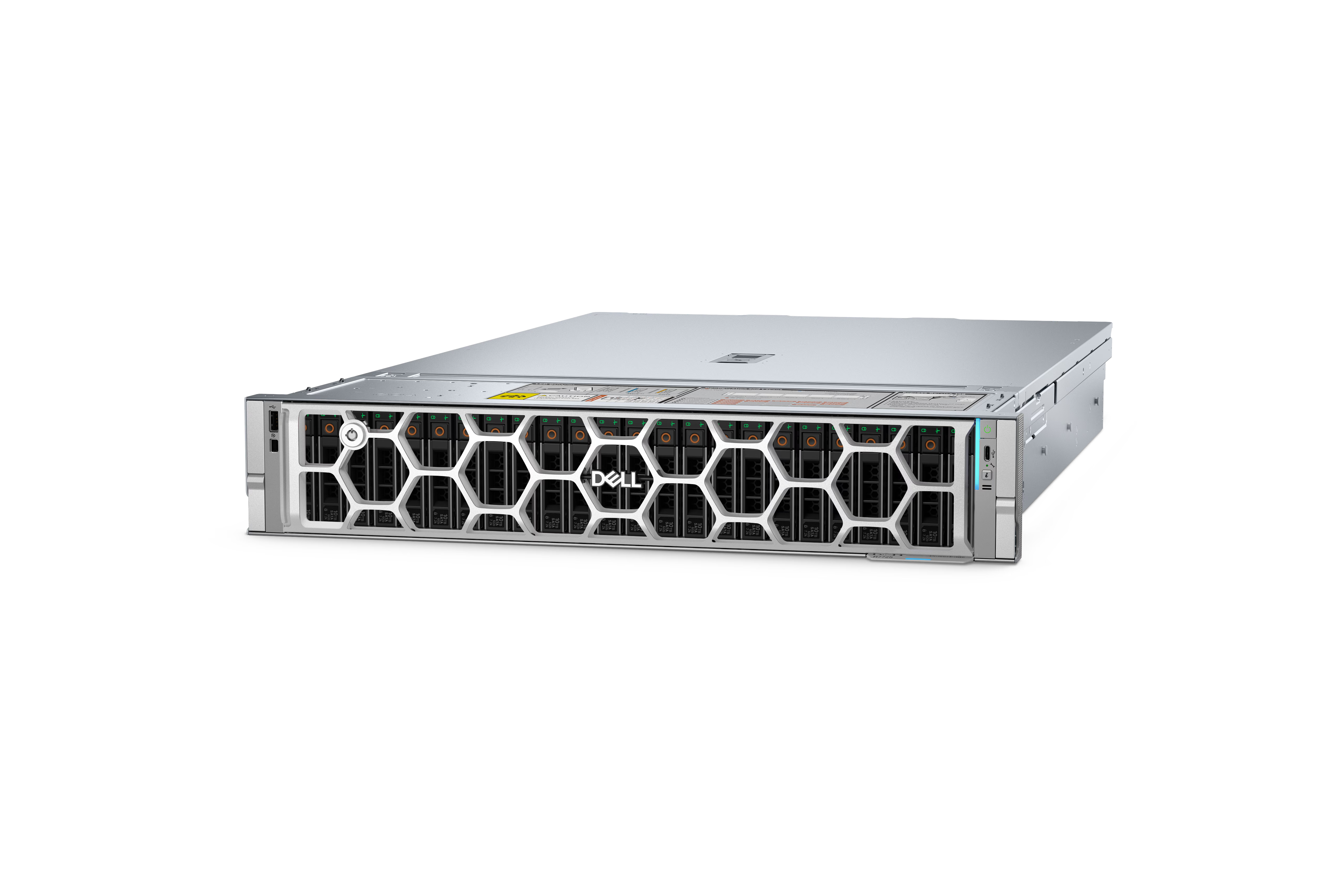

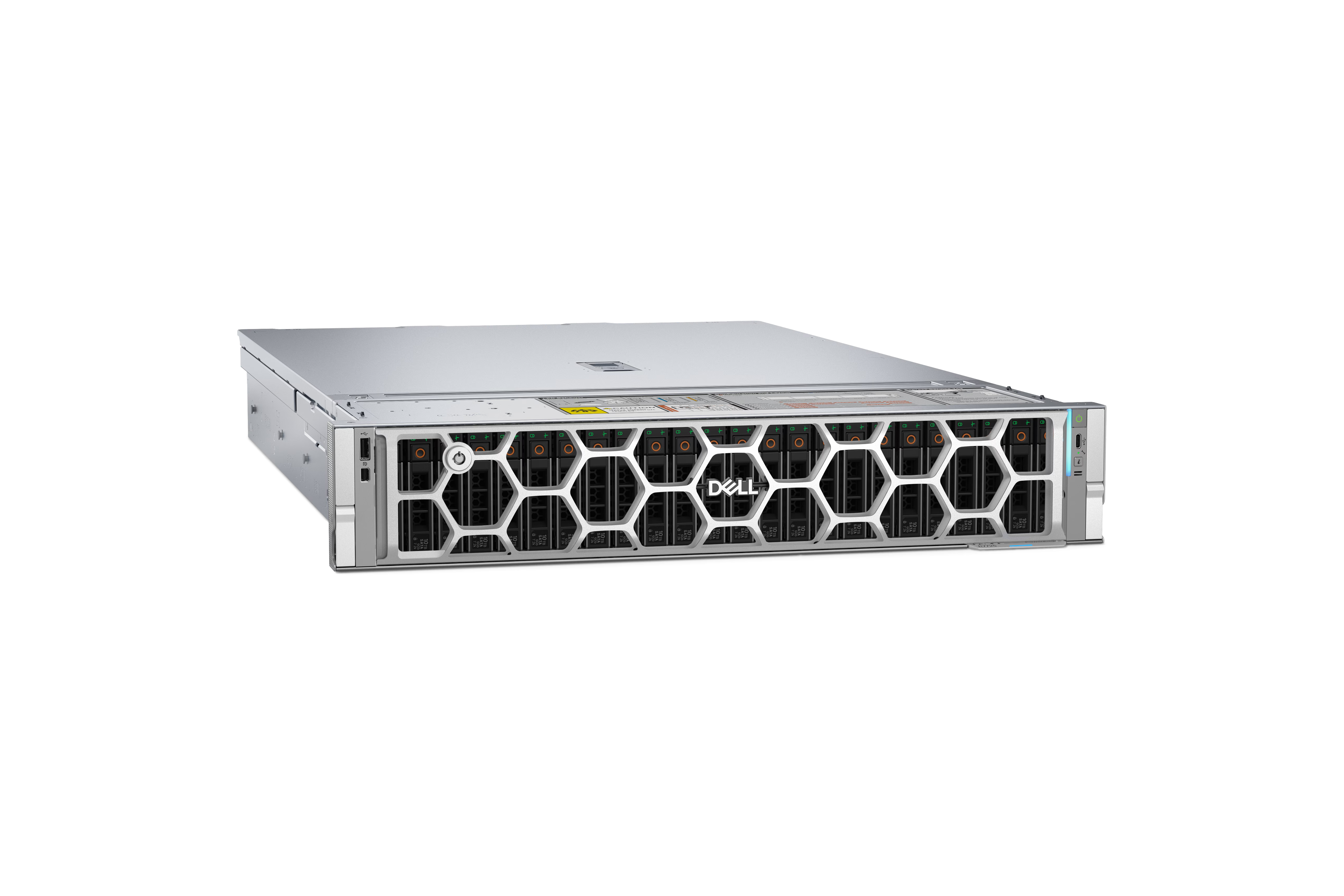

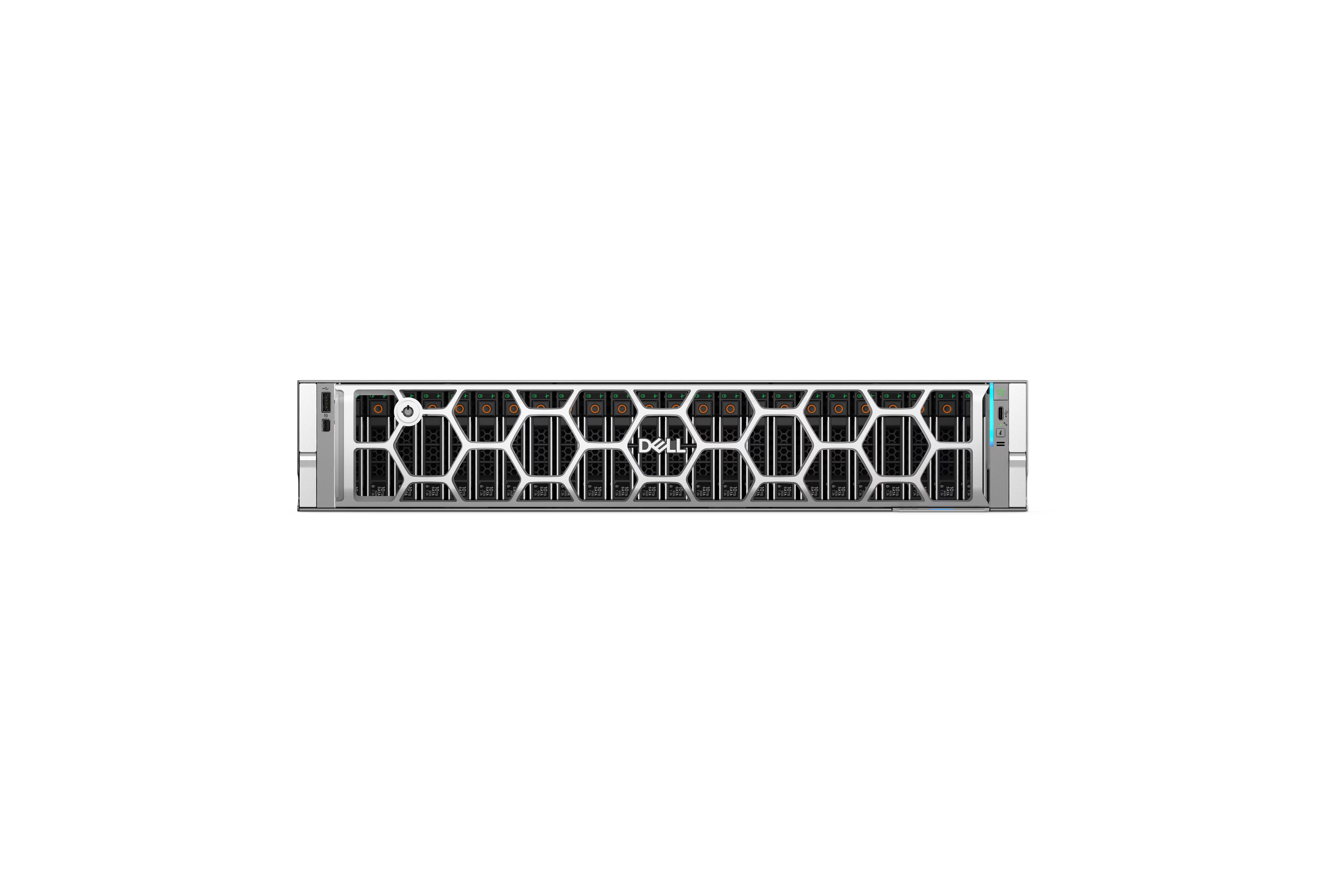

Submit a requestDell PowerEdge R7725 24SFF is a high-density 2U two-socket storage configuration with twenty-four front 2.5-inch SFF drive bays. It is designed for virtualization, VDI, databases, HPC, and software-defined storage workloads that need strong AMD compute performance and a large local SAS4/SATA drive count.
Key features:
-
24 front 2.5-inch SFF bays: Provides twenty-four front-accessible 2.5-inch SFF hot-swap bays for high drive density in a 2U rack chassis.
-
Full 24SFF SAS4/SATA topology: This description refers to the all-24 2.5-inch SAS4/SATA layout. Dell also offers a separate hybrid configuration with 16 SAS4/SATA drives plus 8 U.2 or 2.5-inch NVMe drives, which uses a different storage topology.
-
Dell PERC 12 controller options: Front PERC 12 options, including H365i or H965i depending on the build, provide RAID and drive management for the 24-bay SAS4/SATA configuration.
-
AMD EPYC 9005 two-socket platform: Two 5th Generation AMD EPYC 9005 processors, 24 DDR5 DIMM slots, and PCIe Gen5 I/O deliver high core density and bandwidth for demanding enterprise and technical workloads.
-
Enterprise serviceability and management: Hot-swap drive access, iDRAC10, and Dell OpenManage tools simplify remote monitoring, lifecycle management, and planned maintenance.
Use cases:
-
Virtualization and VDI: Offers dense local storage for virtual machines, virtual desktops, and mixed enterprise workloads.
-
High-performance computing: Combines high core density and flexible local storage for technical computing, simulation, and research workloads.
-
Data warehousing and databases: Supports storage-dense nodes for data warehouses, e-commerce platforms, and business databases.
-
Software-defined storage: Can serve as a storage-rich node for software-defined and hyperconverged infrastructure when configured with validated drives and controllers.
Dell PowerEdge R7725 24SFF is a storage-dense AMD platform for organizations that need twenty-four hot-swap SFF SAS4/SATA bays, PERC 12 protection, and strong 2U compute scalability.
