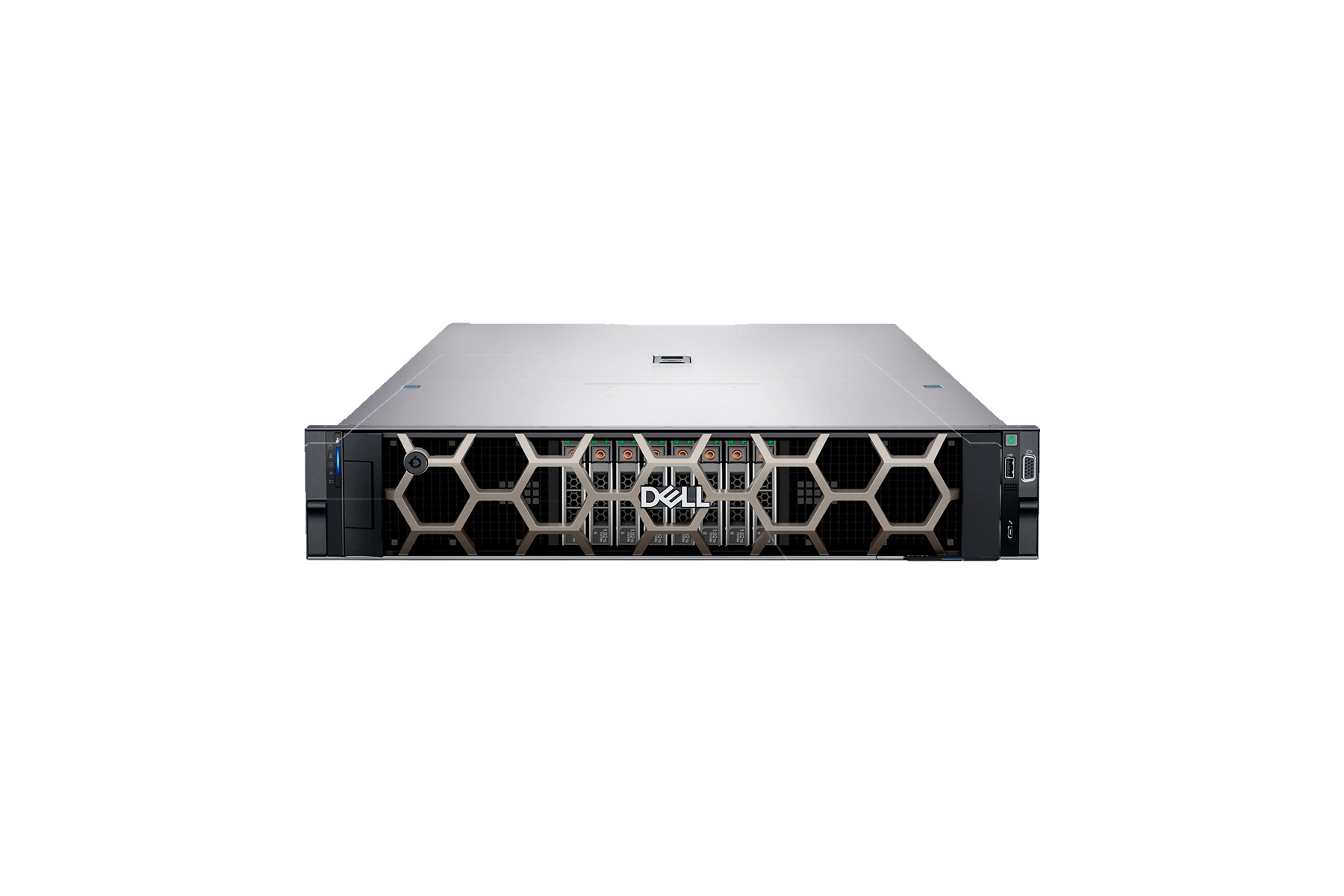

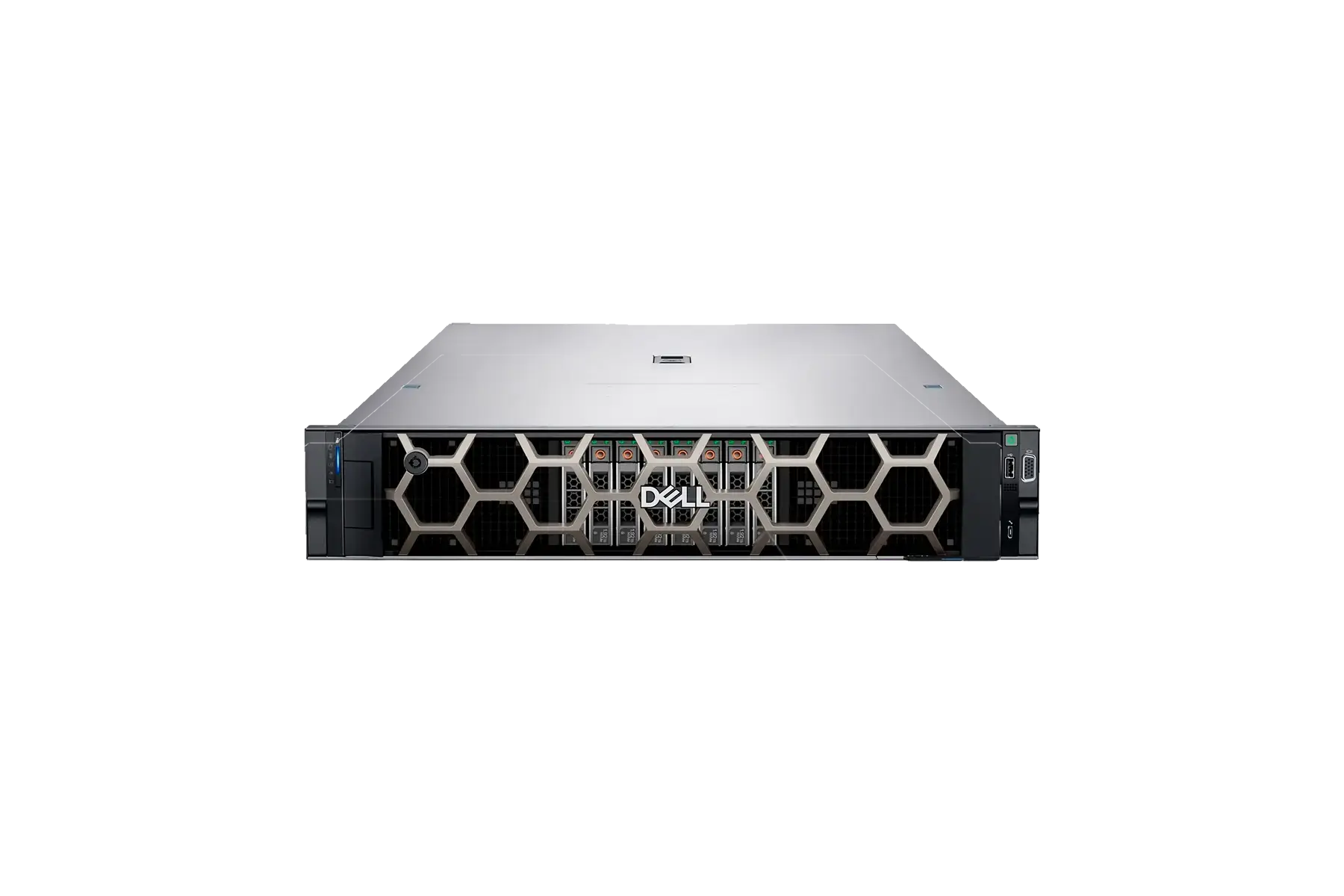

Server Dell PowerEdge R760xa 8SFF
Free shipping on orders over 2200 zł in the EU, £500 in the UK, and $3,000 in the USA
You might be interested in
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
Up to 2 x 4th Generation Intel® Xeon® Scalable or Intel® Xeon® Max processors with up to 56 cores, or 5th Generation Intel® Xeon® Scalable processors with up to 64 cores per processor
Memory
DDR5: up to 32 x RDIMM (8 TB), speed up to 5600 MT/s, registered ECC only
Storage controllers
- Internal RAID: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External HBA: HBA355e, H965e
- Boot: BOSS-N1 HWRAID 2 x M.2 NVMe SSDs or USB
- Software RAID: S160
Drive bays
Front bays
- Up to 6 x EDSFF E3.S Gen5 NVMe
- Up to 6 x 2.5-inch NVMe
- Up to 8 x 2.5-inch SAS/SATA/NVMe
Power supplies
- 3200 W Titanium
- 2800 W Titanium
- 2400 W Platinum
Cooling and fans
Air cooling or Direct Liquid Cooling; up to 6 hot-plug fans
Dimensions
- Height: 86.8 mm (3.41 inches)
- Width: 482 mm (18.97 inches)
- Depth: up to 946.73 mm (37.27 inches)
- Weight: not specified in the provided spec sheet
Form factor
2U rack server
Embedded management
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
- Quick Sync 2 wireless module
Security
- Cryptographically signed firmware
- Data at Rest Encryption with SEDs and local or external key management
- Secure Boot
- Secured Component Verification with hardware integrity check
- Secure Erase
- Silicon Root of Trust
- System Lockdown, requires iDRAC9 Enterprise or Datacenter
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Networking
- 2 x 1GbE LOM card (optional)
- 1 x OCP NIC 3.0 card (optional)
GPU options
Up to 4 x 350 W double-width or 12 x 75 W single-width GPUs
Ports
Front ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 1 x USB 2.0
- 1 x VGA
Internal ports
- 1 x USB 3.0 (optional)
Rear ports
- 1 x Dedicated iDRAC Ethernet port
- 1 x USB 2.0
- 1 x USB 3.0
- 1 x Serial (optional)
- 1 x VGA (optional for Direct Liquid Cooling)
PCIe
Up to 12 x PCIe Gen5 slots
Operating systems
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Condition
- New
- Manufacturer
- Dell
- Form factor
- 2U
- Remote-Control-Modul
- iDRAC 9 Express
- Supported CPU
- 2 x 4th or 5th Generation Intel Xeon Scalableor
- Supported RAM
- DDR5 DIMM 32 slots (8192 GB)
- RAID controller
- RAID DELL PCI-e H745 (4GB+FBWC)
- HDD bays
- noHDD (up to Array HDD 2.5'' SFF)
- NIC card
- 2 port 1Gb/s (Integrated)
