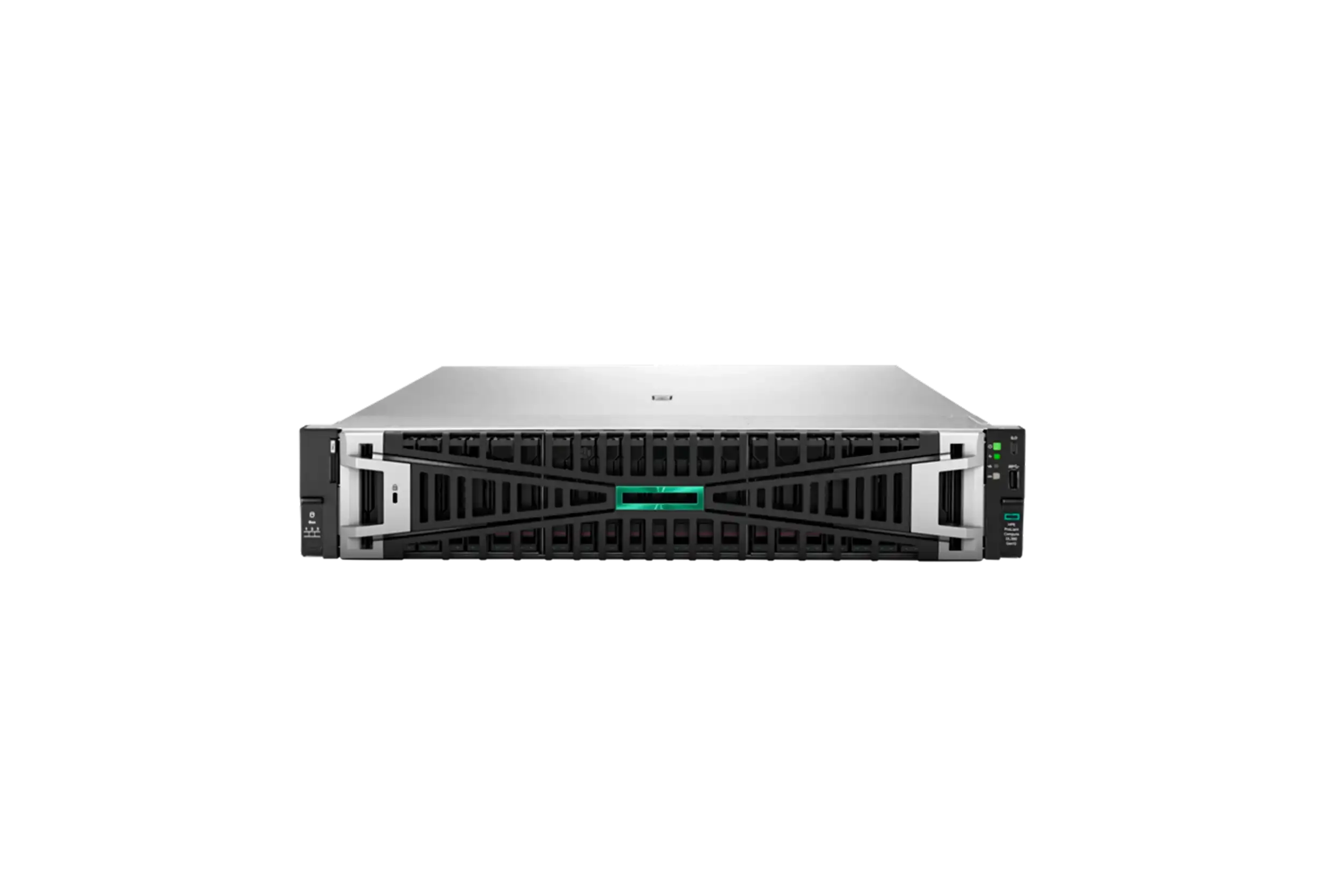

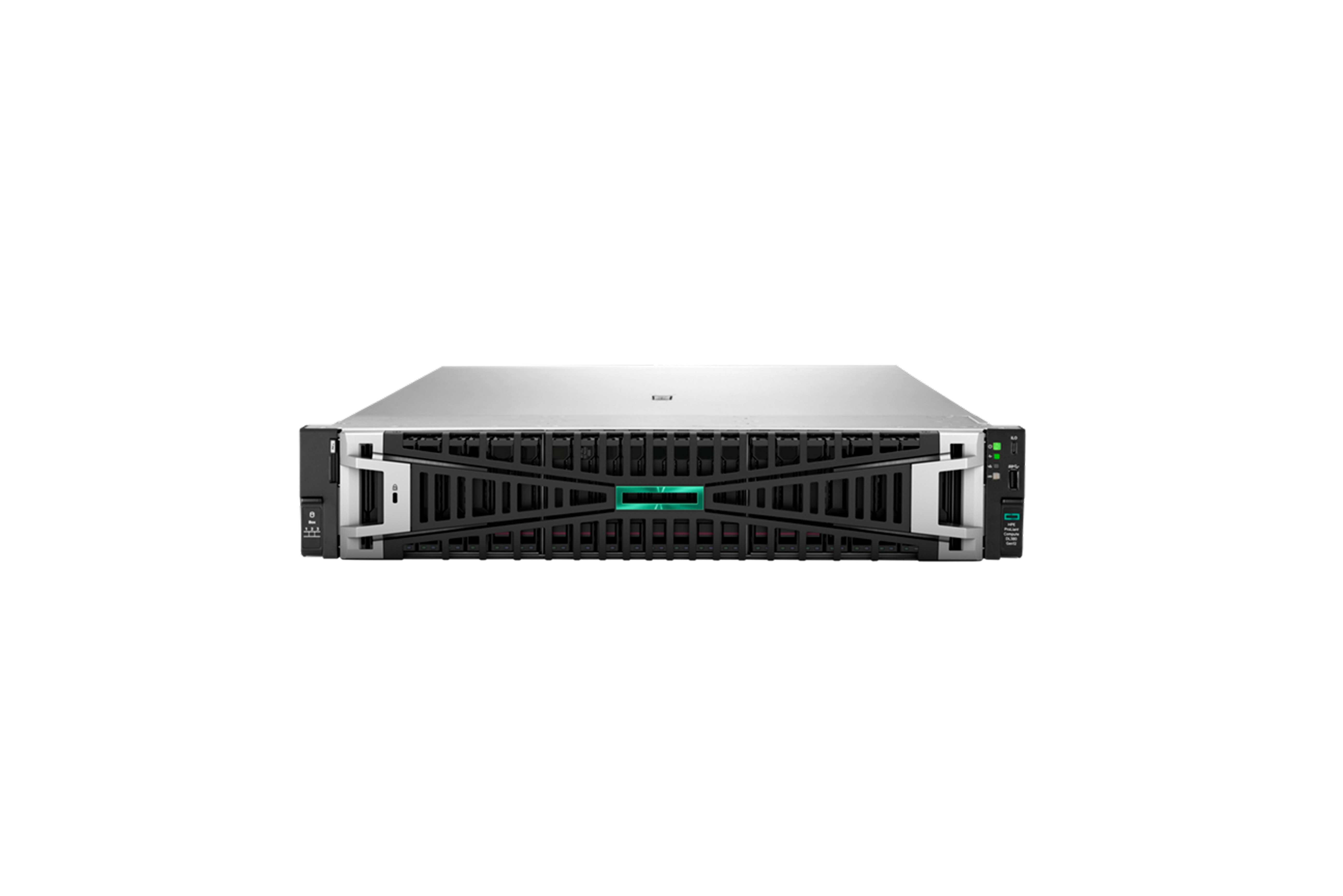

HPE ProLiant DL380 Gen12 8SFF
You might be interested in
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
1 or 2 Intel® Xeon® 6 processors, 8 to 144 cores depending on processor, up to 3.9 GHz
Memory
DDR5 RDIMM: up to 32 x HPE DDR5 Smart Memory DIMMs (8 TB), speeds up to 6400 MT/s depending on processor and population
Storage controllers
- HPE MR216i-o / MR216i-p
- HPE MR408i-o / MR408i-p / MR408e-p
- HPE MR416i-o / MR416i-p
- Intel® VROC for HPE ProLiant, depending on configuration
Drive bays
Front drive support
- Up to 8 or 12 x LFF SAS/SATA HDD or SSD
- Up to 8, 16 or 24 x SFF SAS/SATA HDD or SSD
- Up to 20 x SFF NVMe drives, depending on model
- Up to 36 x EDSFF E3.S NVMe drives
Rear drive support
- Up to 6 x SFF rear drives or up to 2 x SFF rear drives, depending on configuration
Power supplies
- 800 W Flex Slot Platinum hot-plug
- 1000 W Flex Slot Titanium hot-plug
- 1600 W Flex Slot Platinum hot-plug
- 1600 W Flex Slot -48 VDC hot-plug
- 1800 W-2200 W Flex Slot Titanium hot-plug
Cooling and fans
Air cooling or Direct Liquid Cooling; hot-plug redundant fans, standard or high-performance fan kit depending on model
Dimensions
- Height: 87.5 mm (3.44 inches)
- Width: 448.0 mm (17.64 inches)
- Depth: up to 732.5 mm (28.84 inches)
- Weight: up to 37 kg (81.57 lb)
Form factor
2U rack server
Embedded management
- HPE iLO 7 Standard with Intelligent Provisioning
- HPE OneView Standard
- HPE iLO Advanced, optional
- HPE OneView Advanced, optional
- HPE Compute Ops Management
- Redfish API support
Security
- UEFI Secure Boot and Secure Start
- Immutable Silicon Root of Trust
- Intel® Software Guard Extensions
- Intel® Trust Domain Extensions
- TPM 2.0 embedded on motherboard
- HPE iLO 7 quantum-resistant algorithms and CNSA 2.0 firmware signing
- Optional locking bezel and chassis intrusion detection kit
Networking
- No standard network controller
- PCIe adapter and OCP 3.0 options
- 1 Gb, 10 Gb, 10/25 Gb, 100 Gb or 200 Gb options, depending on model
Ports
Front ports
- 1 x USB-C iLO Service Port
- 1 x USB 3.2 Gen1
- 1 x DisplayPort, optional
- 2 x USB 2.0, optional via Universal Media Bay
Internal ports
- 2 x USB 3.0

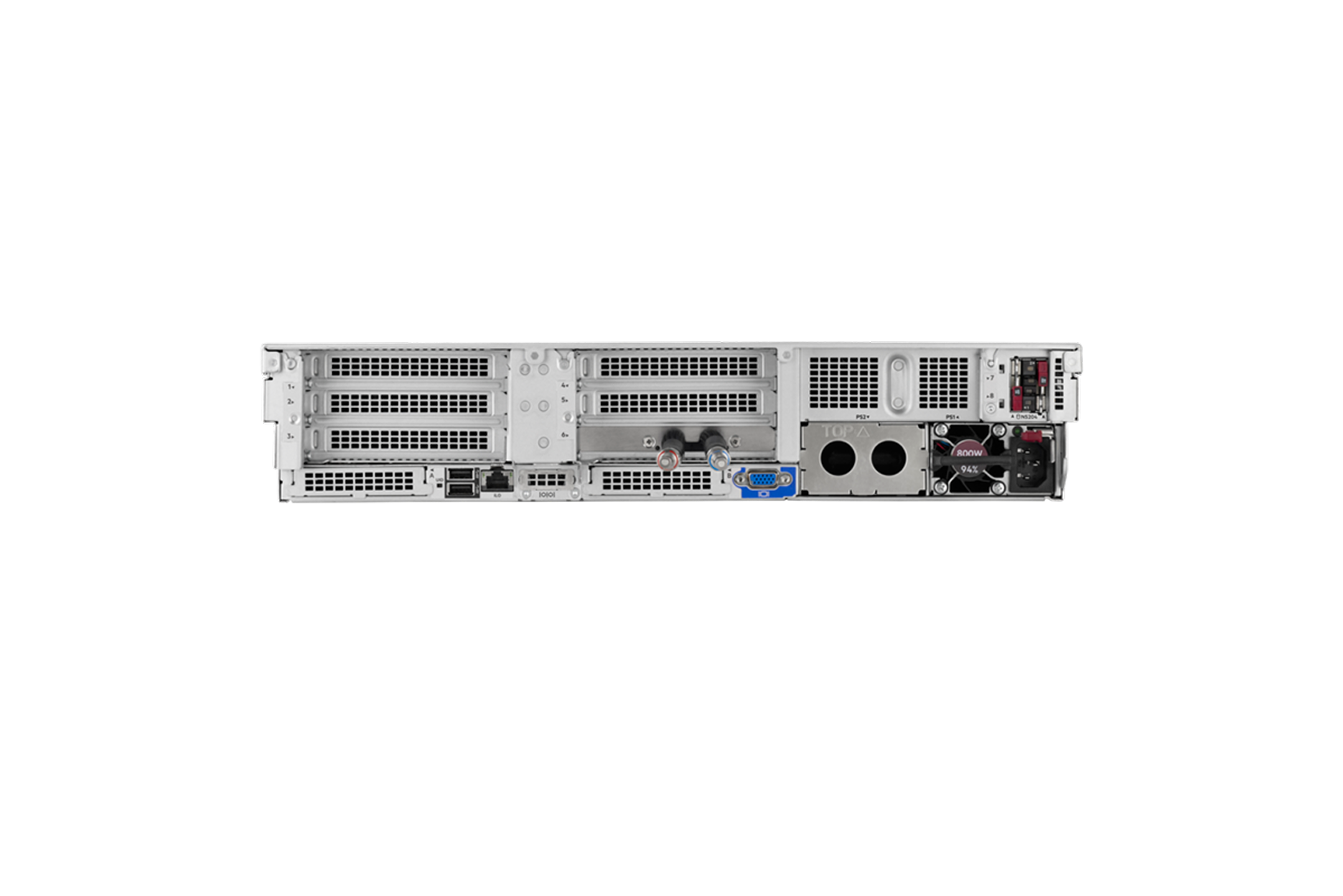

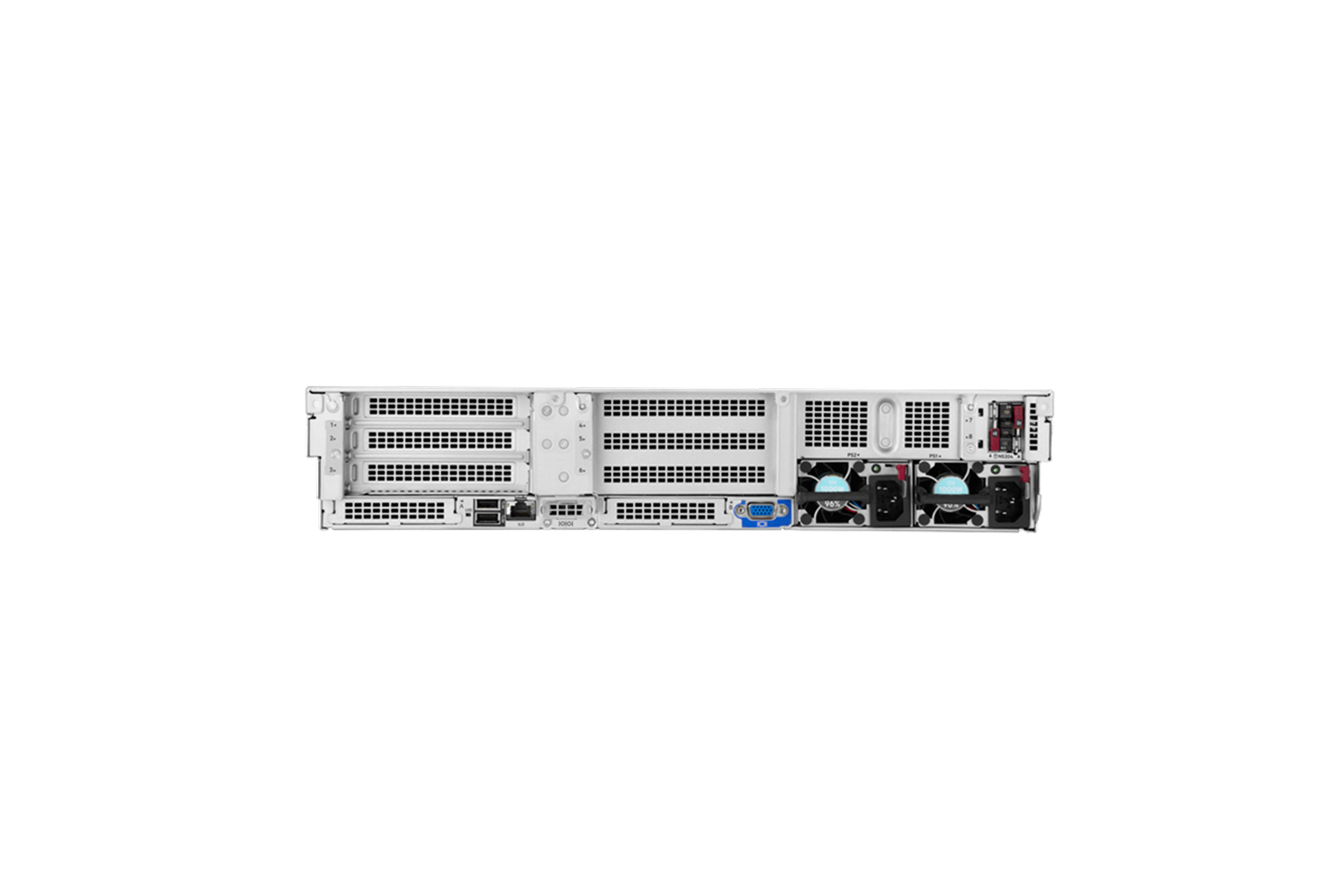

Rear ports
- 1 x dedicated 1 GbE iLO Management Port
- 2 x USB 3.2 Gen1
- 1 x VGA
- 1 x Serial port, optional
PCIe expansion
Up to 8 x PCIe Gen5 slots and 2 x OCP 3.0 slots, front or rear
Optical drive
Optional DVD-ROM or DVD-RW through Universal Media Bay, or external support only
- Condition
- New
- Manufacturer
- HPE
- Form factor
- 2U
- Remote-Control-Modul
- iLO 6 Standard
- Supported RAM
- DDR5 DIMM 32 slots (8192 GB)
- Power supply unit
- 1 × HPE 800W
- RAID controller
- RAID HPE MR216i-o
- HDD bays
- noHDD (up to Array HDD 2.5'' SFF)
- NIC card
- 2 ports 10GB Base-T RJ-45 PCI-e
Need a technical consultation on choosing a server?
Submit a requestHPE ProLiant Compute DL380 Gen12 8SFF is a versatile 2U two-socket server storage configuration with eight front-accessible Small Form Factor drive bays. It provides a scalable starting point for enterprise applications, virtualization, databases, and hybrid infrastructure that require flexible local storage and long-term expansion headroom.
Key features:
-
8 SFF front drive bays: A single eight-bay front cage provides a practical 2.5-inch storage foundation with convenient front access for supported enterprise drives.
-
x1 U.3 Tri-Mode storage path: An 8SFF x1 U.3 Tri-Mode cage can support SAS, SATA, and NVMe media when connected to a compatible HPE MR storage controller and the required cabling.
-
x4 U.3 high-bandwidth option: An 8SFF x4 U.3 cage is available for performance-oriented NVMe designs using validated direct-attach or controller-based connectivity, with x4 or x2 lane configurations depending on the build.
-
Scalable SFF architecture: The SFF CTO chassis can expand to as many as twenty-four front SFF bays and supports optional rear SFF drive cages, allowing storage density to grow with workload demand.
-
Resilient Gen12 management platform: Intel Xeon 6 processors, PCIe Gen5, HPE iLO 7, and HPE Compute Ops Management support secure remote administration and standardized enterprise operations.
Use cases:
-
Virtualization and private cloud: Provides a flexible local storage base for virtual machines, hypervisors, and private cloud services.
-
Database platforms: Supports HDD, SSD, and NVMe-oriented designs for transactional databases, analytics, and data processing.
-
Enterprise application consolidation: Suitable for consolidating ERP, CRM, middleware, collaboration, and other business-critical applications.
-
Infrastructure and data services: Can host file services, monitoring, logging, backup staging, and other shared IT services with room for future storage expansion.
HPE ProLiant Compute DL380 Gen12 8SFF is a scalable enterprise storage configuration for organizations that need an eight-bay SFF starting point, multiple validated U.3 connectivity paths, and the expansion flexibility of the proven 2U DL380 platform.
