HPE ProLiant ML110 Gen11 4LFF
You might be interested in
Processor
1 x 4th or 5th Gen Intel® Xeon® Scalable processor, 8 to 32 cores depending on processor, up to 3.2 GHz, up to 60 MB L3 cache
Memory
DDR5 RDIMM: up to 16 x HPE DDR5 Smart Memory DIMMs (1.5 TB), speeds up to 5600 MT/s depending on processor and population
Storage controllers
- Embedded Intel® VROC SATA/NVMe
- Optional HPE Smart Array storage controllers depending on configuration
Drive bays
Front drive support
- Up to 4 to 8 x LFF SAS/SATA drives

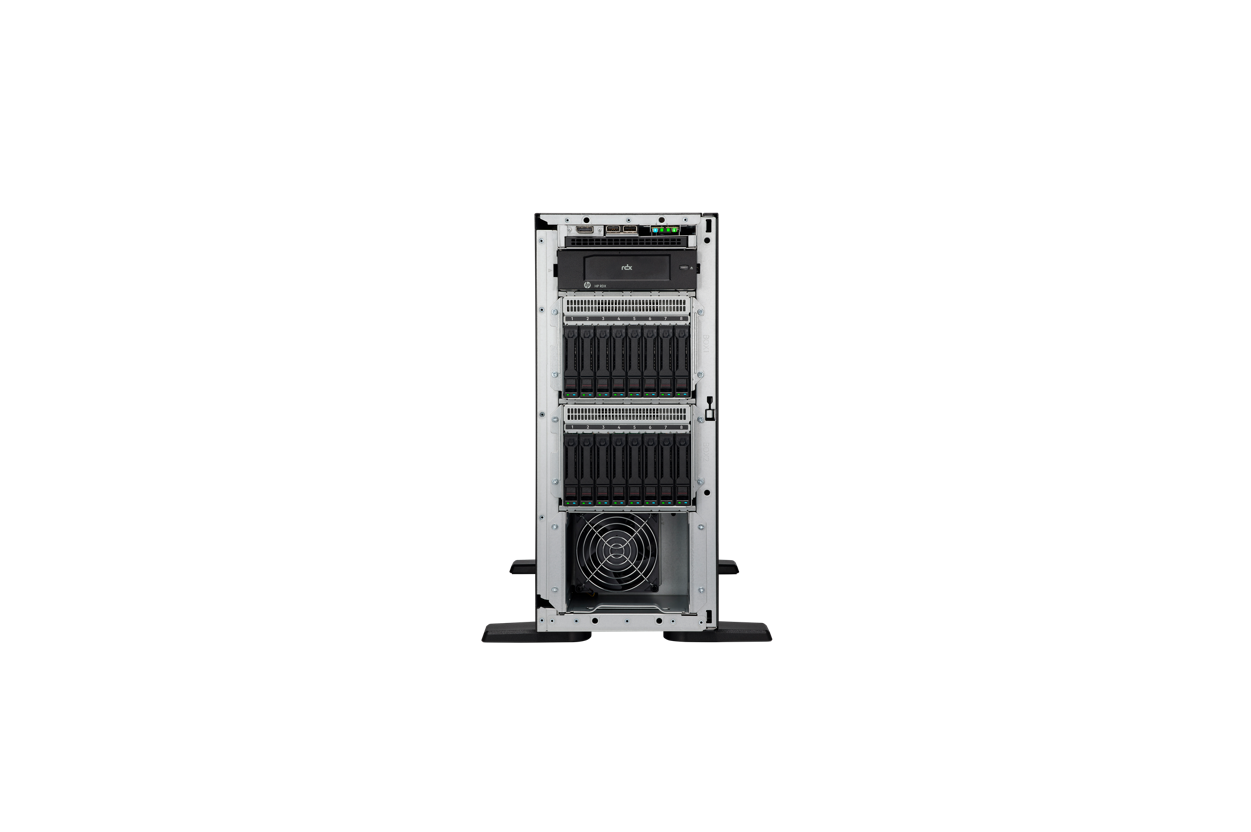

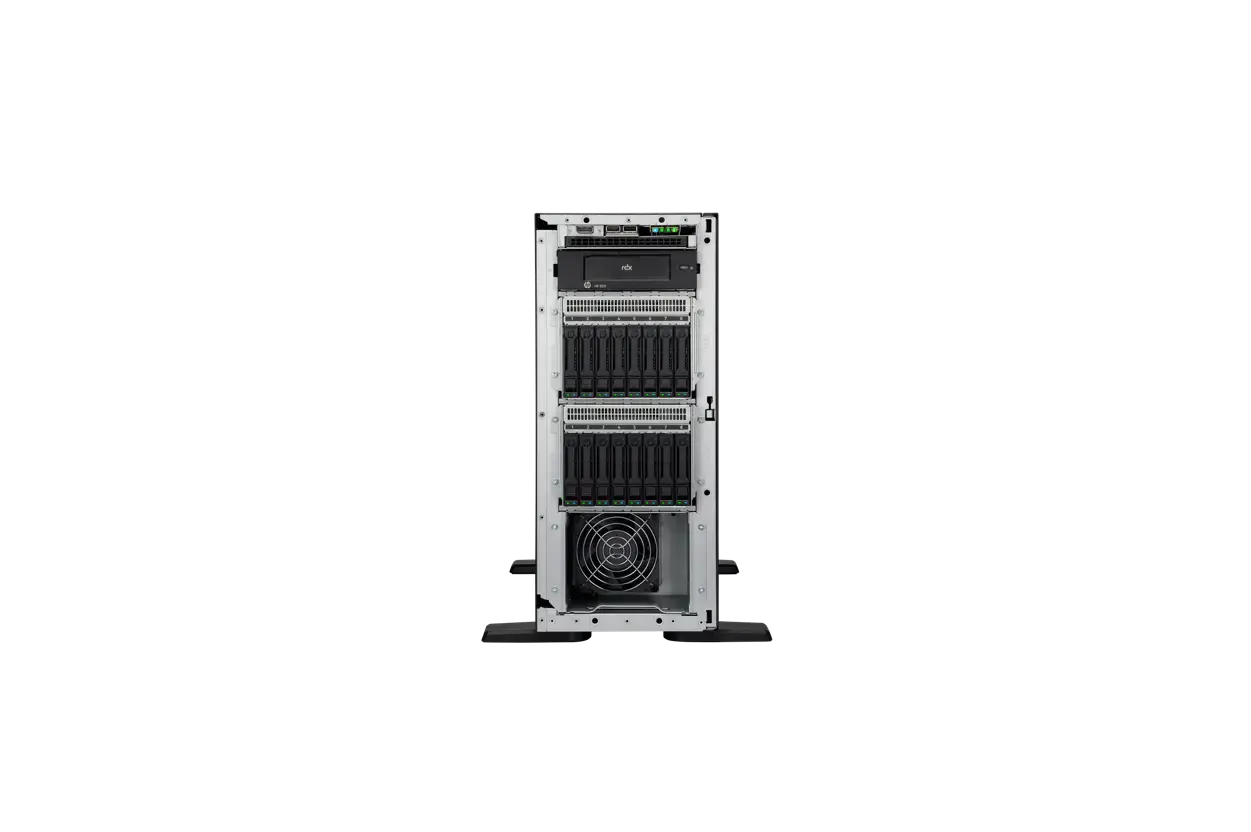

- Up to 8 to 16 x SFF SAS/SATA HDD/SSD
Power supplies
- 500 W Flex Slot Platinum
- 800 W Flex Slot Platinum
- 1000 W Flex Slot Titanium
- 1600 W Flex Slot Titanium
Cooling and fans
Standard 2 non-hot-plug fans; optional 2 additional fans for N+1 redundancy depending on model
Dimensions
- Height: 462 mm (18.19 inches)
- Width: 195 mm (7.68 inches)
- Depth: 587 mm (23.1 inches)
- Weight: up to 33.2 kg (73.19 lb)
Form factor
4.5U tower server; optional 5.5U rack conversion kit
Embedded management
- HPE iLO 6 Standard with Intelligent Provisioning
- HPE OneView Standard
- HPE iLO Advanced, optional
- HPE OneView Advanced, optional
- HPE Compute Ops Management
- Redfish API support
Security
- UEFI Secure Boot and Secure Start
- Immutable Silicon Root of Trust
- Intel® Software Guard Extensions (SGX), where supported
- TPM 2.0 support
- IDevID certificates installed by default
- Secure Recovery and Runtime Firmware Verification with HPE iLO Advanced Premium Security Edition
- Optional Trusted Supply Chain, iLO security modes, chassis intrusion detection and bezel locking kits
Networking
- Embedded 2 x 1GbE BCM5720 network ports
- Choice of OCP or PCIe stand-up network adapters
- Dedicated 1GbE iLO Management Port
Ports
Front ports
- 1 x Front iLO Service Port
- 1 x USB 3.2 Gen1
- 1 x DisplayPort
Internal ports
- 1 x USB 3.2 Gen1
- 1 x USB 2.0

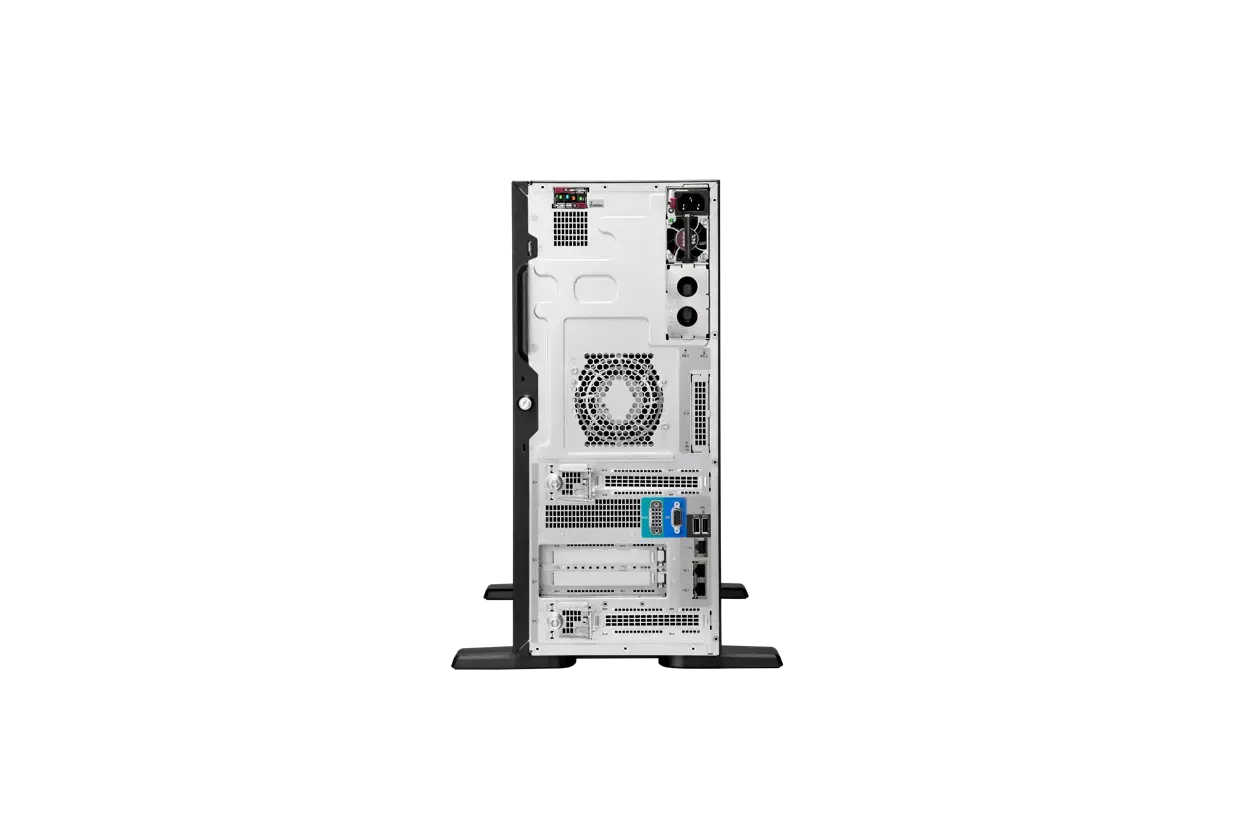

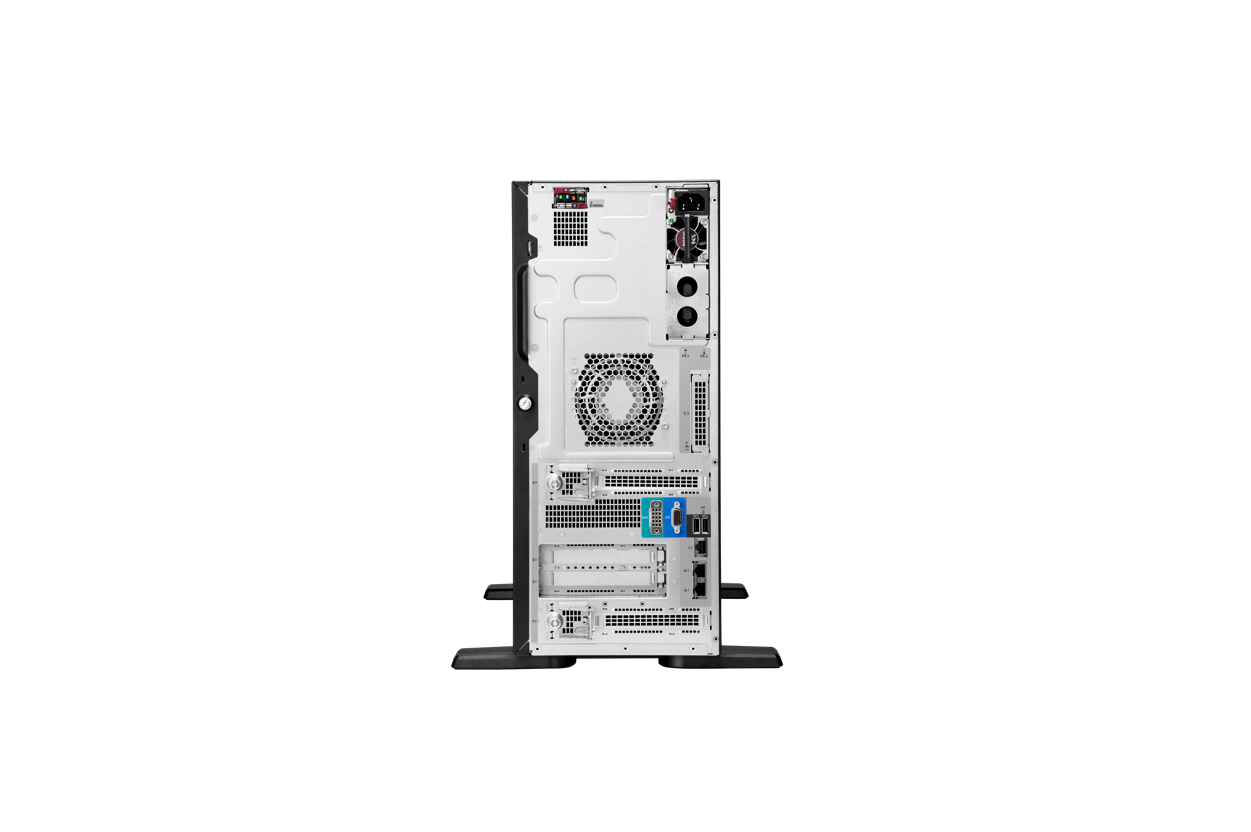

Rear ports
- 1 x dedicated 1GbE iLO Management Port
- 2 x USB 3.2 Gen1
- 1 x VGA
- 1 x Serial port, optional
PCIe expansion
Up to 4 x PCIe Gen5 x16 slots and 1 x OCP 3.0 x16 slot
Optical drive
Optional DVD-ROM or DVD-RW optical drive; optional Half-Height RDX
Operating systems and virtualization
- Microsoft Windows Server 2019, 2022, 2025
- VMware ESXi 7.0 U3; VMware ESXi 8.0, 8.0 U1, 8.0 U2, 8.0 U3; VMware ESX 9.0, 9.1
- Red Hat Enterprise Linux 8.6, 9.0, 10.0; 5th Gen Intel® Xeon® Scalable configurations require RHEL 8.8 or RHEL 9.2 minimum
- SUSE Linux Enterprise Server 15 SP4; SLES 16 and SLES 15 SP5 QU1 for 5th Gen Intel® Xeon® Scalable configurations
- SUSE Linux Enterprise Micro 5.3; SUSE Linux Micro 6.2 and SLE Micro 5.5 for 5th Gen Intel® Xeon® Scalable configurations
- Canonical Ubuntu 22.04 LTS, 24.04 LTS
- Oracle Linux 9.0 for 4th Gen Intel® Xeon® Scalable; Oracle Linux 9.3 for 5th Gen Intel® Xeon® Scalable
- Condition
- New
- Manufacturer
- HPE
- Form factor
- Tower
- Remote-Control-Modul
- iLO 6 ASIC
- Supported CPU
- 1 x 4th or 5th Intel Xeon Scalable
- Supported RAM
- DDR5 DIMM 16 slots (4096 GB)
- Power supply unit
- Power supply HP 1000w
- RAID controller
- RAID Embedded 8 SATA
- HDD bays
- noHDD (up to 4 HDD 3.5'' LFF)
Need a technical consultation on choosing a server?
Submit a requestHPE ProLiant ML110 Gen11 4LFF is a storage configuration with four front 3.5-inch LFF bays available in hot-plug and non-hot-plug configurations for a 4.5U single-socket tower platform with rack conversion capability. It is designed for SMB, ROBO, retail, and office deployments that need enterprise storage without a dedicated rack environment.
Key features:
-
4 front LFF bays: Four 3.5-inch bays provide economical local capacity. HPE offers distinct hot-plug and non-hot-plug versions, so the service method must be matched to the selected chassis.
-
Hot-plug or non-hot-plug storage: The hot-plug 4LFF model supports validated SAS and SATA HDD/SSD media. The non-hot-plug version uses cabled SATA drives and must not be described as hot-swap.
-
Embedded and hardware RAID choices: Non-hot-plug SATA models use the embedded Intel VROC SATA path. Hot-plug SAS/SATA configurations can use supported HPE storage controllers for hardware RAID, cache, and enterprise drive management.
-
Second 4LFF cage option: A second matching 4LFF cage can raise the system total to eight LFF drives. Mixing with an SFF cage is supported only on the hot-plug LFF chassis and must follow the ML110 configuration rules.
-
Rack-convertible enterprise tower: Fourth- and fifth-generation Intel Xeon Scalable processors, DDR5 memory, PCIe Gen5, HPE iLO 6, and optional rack conversion support distributed business and departmental infrastructure.
Use cases:
-
Branch-office services: Suitable for local identity, file, print, security, backup, and application services in remote or space-constrained offices.
-
File and shared storage: Provides local capacity for departmental data, shared business files, collaboration content, and internal repositories.
-
Backup and archive: Capacity-oriented LFF configurations are well suited to backup targets, retention pools, nearline data, and archive workflows.
-
Business applications: Provides a practical storage foundation for line-of-business software, directory services, security tools, and internal platforms.
HPE ProLiant ML110 Gen11 4LFF is a rack-convertible tower storage configuration for businesses that need dependable LFF capacity and a documented path for future expansion.
