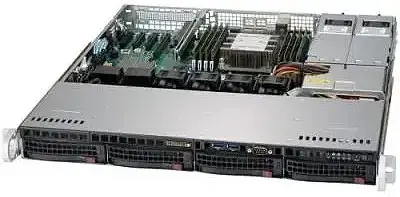

Server Supermicro 5019P-MTR
New
Specification
Manufacturer
Supermicro
Form factor
1U
Supported CPU
1 x Intel Xeon Scalable 2nd Gen
Supported RAM
DDR4 DIMM 8 slots (2 TB)
Incl shipping across EU
Supermicro 5019P-MTR — Specifications
- Processor
- Single Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable processors and Intel Xeon Scalable processors CPU TDP support 70-205W * Up to 28 cores
- Memory Capacity
- 8 DIMM slots Up to 2TB 3DS ECC DDR4-2933 MHz † RDIMM/LRDIMM 2933 /2666/2400/2133 MHz ECC DDR4 RDIMM/LRDIMM
- Chipset
- Intel® C622
- I/O Ports
- 10 SATA3 ports (6 Gb/s) 2 RJ45 10GBase-T LAN ports 1 dedicated IPMI LAN RJ45 port 5 USB 3.0 ports (2 rear + 2 headers + 1 type A) 6 USB 2.0 ports (2 rear + 4 headers) 1 VGA port 2 COM ports (1 rear, 1 front) 2 SuperDOM (Disk on Module) ports with built-in power
- Chassis
- 1U rackmount Model CSE-813MFTQC-R407CB
- Dimensions and Weight
- Height 9.45 inches (240 mm) x Width 8.27 inches (210 mm) x Depth 19.85 inches (503 mm) Gross weight: 30.4 lbs (13.8 kg) Net weight: 17.6 lbs (8 kg)
- Expansion Slots
- PCI-Express: 1 PCI-E 3.0 x16 slot M.2 M.2 interface: PCI-E 3.0 x4 and SATA M.2 form factor: 2280, 22110 M.2 Key: M-Key Double Height connector
- Drive Bays
- 4 hot-swap 3.5-inch SATA3 drive bays Peripheral drives: Additional slim optical drive bay, additional FDD/USB bay
- Power Supply
- Redundant 400W 1U power supplies with PMbus Platinum
- Environmental Specifications
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- BIOS Type
- AMI 32MB SPI Flash memory
- Network Controllers
- Dual 10GBase-T LAN with Intel® X722 + X557
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- RAID
- SATA3 (6 Gb/s) via C622 controller RAID 0, 1, 5, 10 support
- Video
- ASPEED AST2500 BMC
- Fans
- 4x 40mm PWM fans Additional 2 PWM fans for AOC
- PC Health Monitoring
- Monitors for CPU cores, chipset voltages, memory. 4+1 phase voltage regulator Fans with tachometer Status monitor for speed control Pulse Width Modulation (PWM) fan connectors CPU and chassis environment monitoring Thermal control for fan connectors
- Software
- Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
- Motherboard
- Super X11SPi-TF
