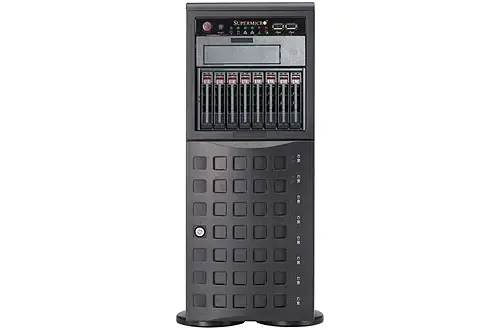

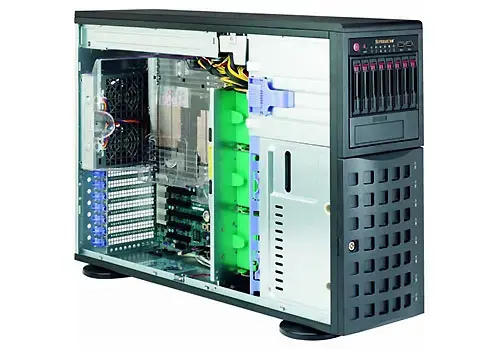

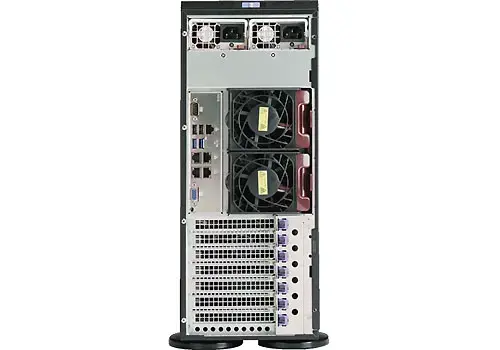

Server Supermicro 7048R-C1R4+
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
2 x Intel Xeon E5 v3/v4
Supported RAM
DDR4 DIMM 24 slots (3 TB)
Incl shipping across EU
Supermicro 7048R-C1R4+ — Specifications
- Processor
- Intel® Xeon® processor E5-2600 v4 / v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) Up to 22 cores / up to 55MB cache QPI system bus up to 9.6 GT/s
- Memory Capacity
- Memory capacity 24x 288-pin DDR4 DIMM slots Up to 3TB ECC 3DS LRDIMM, 768 ECC RDIMM Memory type 2400 /2133/1866/1600 MHz ECC DDR4 SDRAM 72-bit DIMM module sizes RDIMM: 32GB, 16GB, 8GB, 4GB
- Chipset
- LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB Memory voltage 1.2V Corrects single-bit errors
- I/O Ports
- Intel® C612
- Chassis
- 10 SATA3 ports (6 Gb/s) 8 SAS3 ports (12 Gb/s) SuperCap option support 4 RJ45 Gigabit Ethernet LAN ports 1x RJ45 dedicated IPMI LAN port 2 USB 3.0 ports (rear) 4 USB 2.0 ports (2 rear, 2 front) 1x USB type A 1 VGA port 1x COM/serial 2 Super DOM (Disk on Module) ports
- Dimensions and Weight
- 4U rackmount / tower Model CSE-745TQ-R920B
- Expansion Slots
- Height 17.2 inches (437 mm) Width 7.0 "(178 mm) Depth 25.5 inches (648 mm) Package 24 inches (H) x 14 inches (W) x 26.5 inches (D) Net weight: 57 lbs (25.9 kg) Gross weight: 74.5 lbs (33.8 kg)
- Drive Bays
- 2x PCI-E 3.0 x16 (full-size, full-height) 3x PCI-E 3.0 x8 (full-size, full-height) 1x PCI-E 2.0 x4 (in x8)
- Power Supply
- 8 x 3.5-inch hot-swap SATA3 drive trays 8x 2.5-inch hot-swap SAS3 drives in mobile rack Peripheral bay(s) [with 90° rotation 1x 5.25-inch drive bay (optional devices)
- Operating Environment
- High-efficiency (94%+) 920W AC-DC redundant power supply with PMBus and I2C
- Network Controllers
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- IPMI
- Quad-port Intel® i350 Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
- SATA \SAS
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
- Video
- SATA3 (6 Gb/s)
- Fans
- RAID 0, 1, 5, 10 Broadcom 3108 SAS3 (12 Gb/s) controller Hardware RAID 0, 1, 5, 6, 10, 50, 60
- BIOS
- ASPEED AST2400 BMC

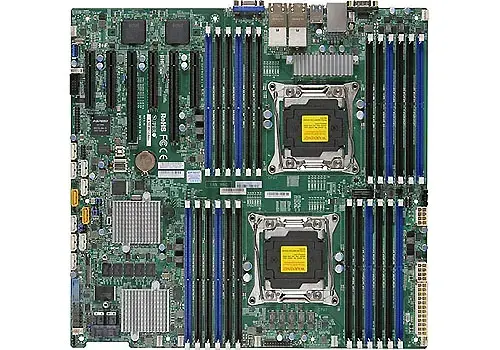

- Motherboard
- 3 x 8 cm redundant hot-swap PWM fans 2x 8 cm rear exhaust hot-swap PWM fans and air shroud
- PC Health Monitoring
- 128Mb SPI Flash EEPROM with UEFI BIOS BIOS features: Plug and Play (PnP) APM 1.2 DMI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI
