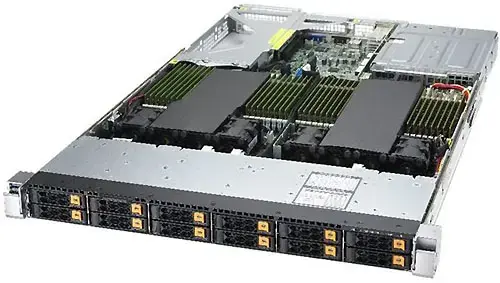

Server Supermicro AS-1124US-TNRP
New
Specification
Manufacturer
Supermicro
Form factor
1U
Supported CPU
2 x AMD 3rd Generation
Supported RAM
DDR4 DIMM 32 slots (8 TB)
Incl shipping across EU
Supermicro AS-1124US-TNRP — Specifications
- Processor
- 2 AMD EPYC 7003/7002 Up to 64 cores
- Memory Capacity
- up to 8TB 32 slots ECC DDR4 3200 MHz SDRAM
- Chipset
- System on Chip (SoC)
- VGA
- ASPEED AST2500 BMC
- I/O Ports
- 12 NVMe ports (default) Two 10GBase-T ports and two 10G SFP+ ports via Intel X710-TM4 1 dedicated IPMI LAN RJ45 port 4 USB 3.0 ports (2 rear + 1 type A + 1 front) 1 VGA port Support for 12 SAS3 ports with optional SAS kit Support for 12 SATA3 ports with optional kits 1 COM port (rear) 2 SATA DOM power connectors TPM 2.0
- Form Factor
- 1U
- Dimensions and Weight
- 437 x 43 x 739mm (17.2" x 1.7" x 29.1") Weight 21.8 kg
- Expansion Slots
- 2 x PCI-E 4.0 x16 (FHFL) 1 x PCI-E 4.0 x16 (LP) 2 x PCI-E×/×SATA 3.0 x2 NVMe M.2
- Drive Bays
- 12 hot-swap 2.5" U.2 NVMe drive bays Supports 12 NVMe or 12 SAS3 or 12 SATA3 hard drives
- Power Supply
- 2x Redundant 1200W power supplies with PMBus
- Environmental Specifications
- Operating temperature: 10°C ~ 30°C (50°F ~ 86°F) * Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Fans
- 8 fans with speed control
