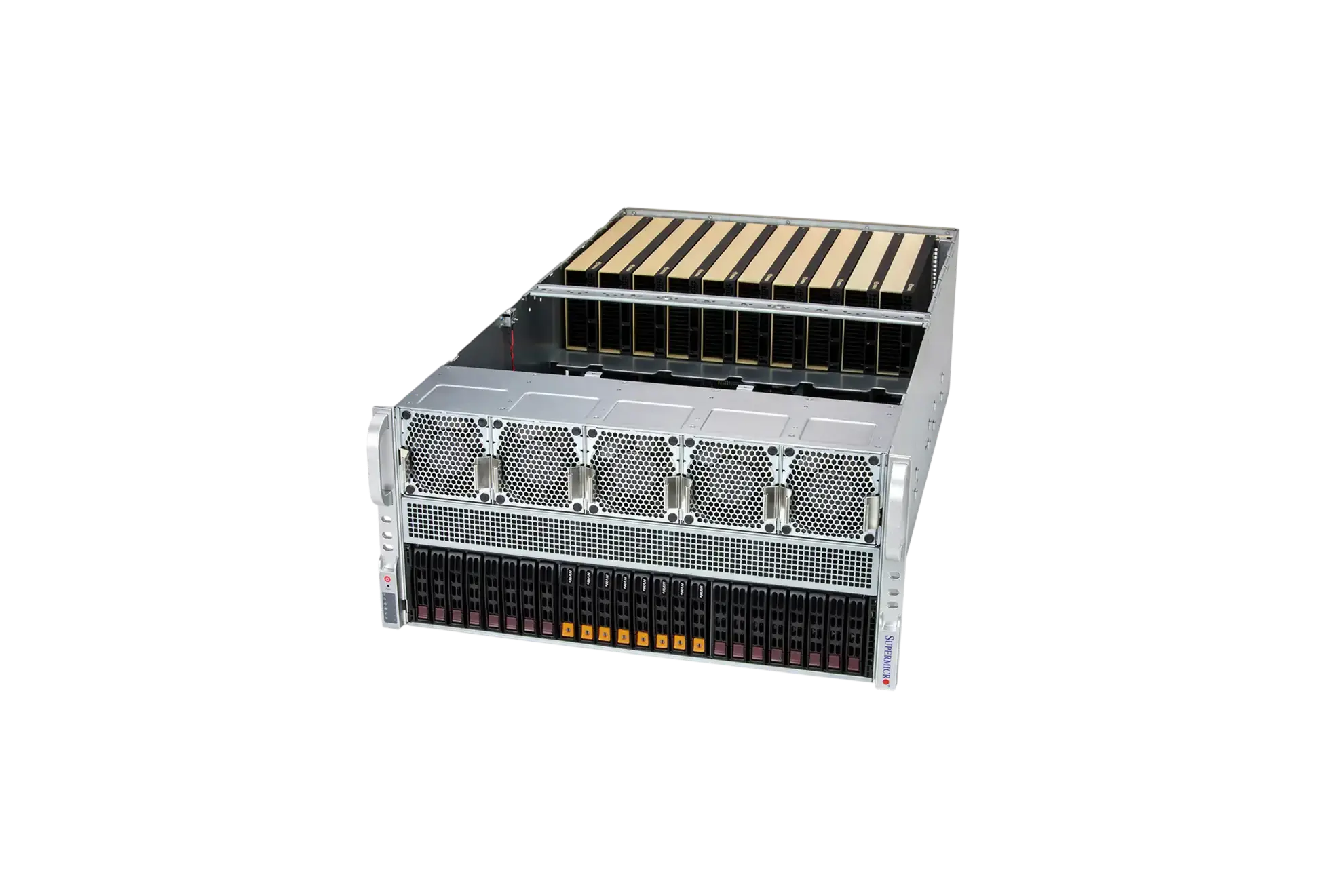

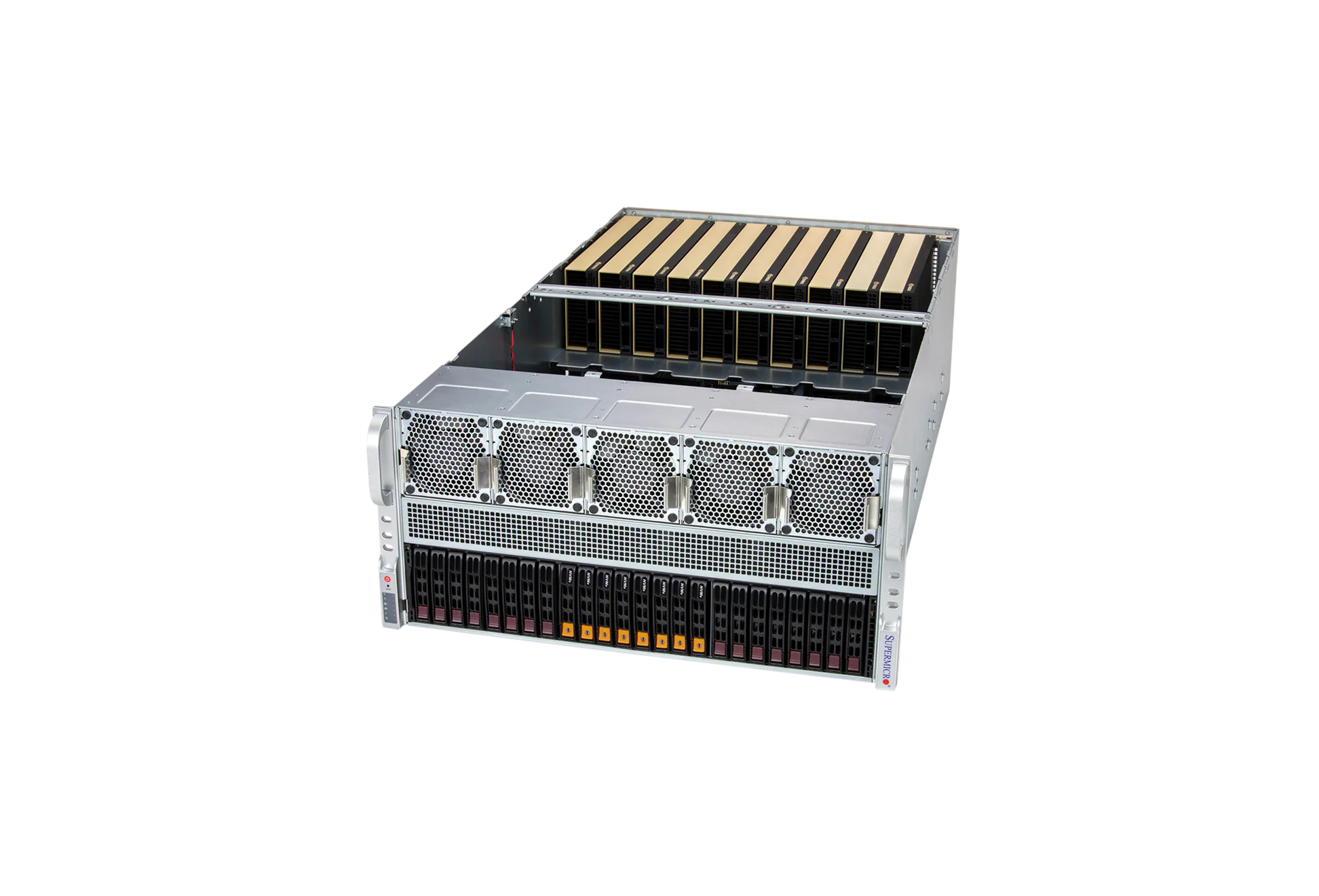

Supermicro AS-5126GS-TNRT2 2SFF+8NVMe
- Condition
- New
- Manufacturer
- Supermicro
- CPU
- 2x AMD EPYC 9554 (64/128, 3.1GHz-3.75GHz, 360W)
- RAM
- 1536GB (DDR5 ECC REG)
- GPU
- 8 x NVIDIA RTX PRO 6000 Blackwell
- Accelerator manufacturer
- NVIDIA
- Accelerator model
- NVIDIA RTX PRO 6000 Blackwell Server Edition
- Installed GPU/APU count
- 8
- Maximum GPU/APU count
- Up to 10 double-width GPUs
- Memory per accelerator
- 96GB
- Total accelerator memory
- 768GB
- GPU memory type
- GDDR7 with ECC
- Accelerator memory bandwidth
- 1597 GB/s per GPU
- Accelerator form factor
- PCIe FHFL
- Accelerator interconnect
- PCIe
- Accelerator-to-CPU interface
- PCIe 5.0 x16 switch
- Supported compute data types
- FP32, TF32, BF16, FP16, FP8, FP6, FP4, INT8
- Accelerator virtualization
- NVIDIA vGPU, SR-IOV, GPU passthrough
- MIG support
- Up to 4 isolated GPU instances per GPU
- Software ecosystem
- NVIDIA CUDA; NVIDIA AI Enterprise; NVIDIA Omniverse
- Maximum system power
- 10.8kW
- Cooling
- Air cooling with up to 10 heavy-duty fans and optimal fan-speed control
- Recommended workloads
- Enterprise AI, rendering, visualization, simulation, digital twins, video processing and data science
- Dimensions
- 222.5 x 438 x 786.1 mm (H x W x D)
- Weight
- 29.7 kg
Need a technical consultation on choosing a server?
Submit a requestSupermicro AS-5126GS-TNRT2 2SFF+8NVMe is a 5U enterprise server storage configuration with two front hot-swap 2.5-inch SATA bays plus eight front 2.5-inch NVMe positions. It is designed for AI factories, research centers, cloud providers and enterprise data centers that need fast local storage for AI and HPC workloads.
Key features:
-
Storage basket and service access: The selected storage basket comprises two front hot-swap 2.5-inch SATA bays plus eight front 2.5-inch NVMe positions. The SATA section supports hot-swap service, while the NVMe positions remain front-accessible for planned maintenance.
-
Installed accelerator subsystem: The installed accelerator subsystem contains 8 x NVIDIA RTX PRO 6000 Blackwell Server Edition. It provides 768GB GDDR7 ECC in aggregate (8 x 96GB). PCIe 5.0 x16 switch-based dual-root paths connect the accelerator and CPU subsystems.
-
Storage topology and data path: The two SATA bays provide hot-swap service for boot or utility drives, while eight front NVMe positions form the high-throughput data tier. One internal M.2 NVMe slot is available for additional boot or service storage.
-
Enterprise compute platform: The installed compute subsystem combines 2 x AMD EPYC 9554 with 1,536GB of DDR5 ECC registered memory. It supplies the CPU, memory and PCIe resources required to feed the accelerator subsystem and host production services.
-
Management and availability: Dedicated BMC connectivity and Supermicro lifecycle-management tools, together with 6 x 2700W redundant (4+2) 80 PLUS Titanium power supplies, support remote administration, component monitoring, planned service operations and resilient data-center operation.
Use cases:
-
AI model development: Uses the installed NVIDIA RTX PRO 6000 Blackwell Server Edition subsystem for model development, training and fine-tuning workloads suited to the accelerator architecture.
-
Inference and production services: Provides parallel compute and accelerator memory for LLM, multimodal and enterprise inference services.
-
HPC, simulation and analytics: Accelerates scientific computing, numerical simulation, engineering, analytics and other parallel workloads supported by the installed accelerator subsystem.
-
Data-intensive pipelines: Combines the specified 2SFF+8NVMe storage basket with high-bandwidth accelerator and network paths for datasets, checkpoints, staging and local scratch storage.
Supermicro AS-5126GS-TNRT2 2SFF+8NVMe is a precisely defined 2SFF+8NVMe storage configuration for organizations that need this drive basket, installed NVIDIA RTX PRO 6000 Blackwell Server Edition acceleration and dependable enterprise lifecycle management.
