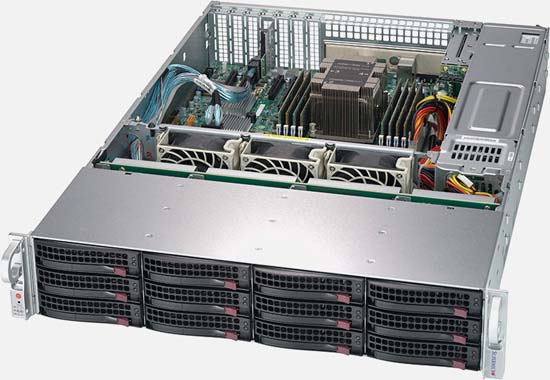

Server Supermicro SSG-5029P-E1CTR12L
New
Specification
Manufacturer
Supermicro
Form factor
2U
Supported CPU
1 x Intel Xeon Scalable 2nd Gen
Supported RAM
DDR4 DIMM 8 slots (2 TB)
Supermicro SSG-5029P-E1CTR12L — Specifications
- Processor
- 2nd Gen Intel® Xeon® Scalable processors and Intel® Xeon® Scalable processors CPU TDP support 70-205W Up to 28 cores
- System Memory
- Memory capacity 8 DIMM slots Up to 2TB 3DS ECC DDR4–2933 MHz † RDIMM / LRDIMM Supports Intel® Optane ™ DCPMM Memory type2933 † / 2666/2400/2133 MHz ECC DDR4 RDIMM / LRDIMM
- Chipset
- Intel® C622
- On-Board Devices
- SATA SATA3 (6 Gb / s) via C622 controller RAID 0, 1, 5, 10 support SAS3 (12 Gb / s) via Broadcom 3008 RAID 0, 1, 10 software Dual 10GBase-T LAN with Intel® X722 + X557 Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
- I/O Ports
- 10 SATA3 ports (6 Gb / s) 2 RJ45 10GBase-T LAN ports 1 dedicated IPMI LAN port with RJ45 connector 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) 8 USB 2.0 ports (2 rear + 6 headers) 1 VGA port 2 COM ports (1 rear, 1 front)
- Software
- Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
- Form Factor
- 1U Rackmount
- Dimensions and Weight
- Width 17.2 inches (437 mm) Height 3.5 inches (89 mm) Depth 25.6 inches (648 mm) Net weight: 15.4 kg (34 lbs)
- Expansion Slots
- PCI-Express: 1 PCI-E 3.0 x16 connector 1 PCI-E 3.0 x8 connector 1 PCI-E 3.0 x8 connector 1 PCI-E 2.0 x4 (in x8) connector M.2: 1x M.2 Interface: PCI-E 3.0 x4 and SATA Form factor: 2280 Key: M-Key Double Height connector
- Drive Bays
- 12 hot-swap 3.5-inch SAS / SATA drive bays with SES3 2 hot-swap 2.5-inch NVMe / SATA drive bays (rear) optional
- Power Supply
- Redundant 800W power supplies with PMBus Titanium efficiency
- Environmental Specifications
- Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 70 ° C (-40 ° F to 158 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
- Fans
- 1 AOC cooling fan (optional) 5 counter-rotating PWM fans
