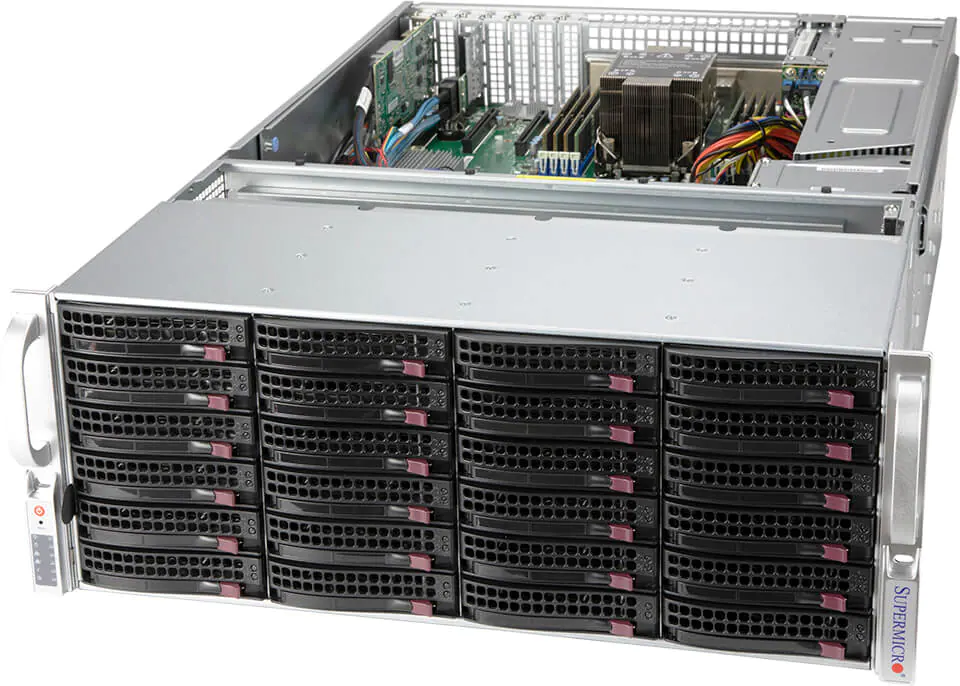

Supermicro SSG-540P-E1CTR36H
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
1 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 8 slots (2 TB)
Supermicro SSG-540P-E1CTR36H — Specifications
- Processor
- Single Socket P+ (LGA 4189) Support for 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 270W
- Memory Capacity
- Memory capacity: 8 DIMM slots Up to 2TB: 8x 256GB DRAM Up to 3TB: 4x 256GB DRAM and 4x 512GB PMem Memory type: 3200/2933/2666 MHz ECC DDR4 RDIMM LRDIMM Intel® Optane™ persistent memory 200 series
- Chipset
- Intel® C621A
- I/O Ports
- 1 dedicated IPMI LAN RJ45 port 2 RJ45 10GBase-T LAN ports 4 USB 2.0 ports (2 headers 2 rear) 5 USB 3.2 Gen 1 ports (2 headers, 2 rear, 1 type A) 1 VGA port(s) 1 COM port(s) (1 header) 2 Super DOM (Disk on Module) ports with built-in power
- Chassis
- 4U rackmount Model CSE-847BTS-R1K23LPBP4
- Dimensions and Weight
- Height 7 inches (178 mm) Width 17.2 inches (437 mm) Depth 27.5 inches (699 mm) Package 17.5 inches (H) x 27 inches (W) x 39.5 inches (D) Net weight: 66.5 lbs (29.7 kg) Gross weight: 102.5 lbs (46.4 kg)
- PCI-Express (PCI-E) Expansion Slots
- Slot 2: PCI-E 4.0 x8 LP Slot 4: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x16 LP Slot 7: PCI-E 4.0 x8 LP
- Drive Bays
- 36 hot-swap 3.5-inch SATA/SAS drive bays M.2 1x PCI-E 3.0 x4 and SATA Form factor: 2280, 22110 Key: M-key Peripheral bays: 2 2.5-inch SATA or NVMe drive bays (optional)
- Power Supply
- 1200W AC, Titanium, redundant, PMBUS 1.2, +12V/+5V, 360x76x40 mm, HF, RoHS/REACH
- Operating Environment
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Network Connection
- 2x 10GbE BaseT with Intel® X550
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- BIOS Type
- AMI 32 MB SPI Flash EEPROM
- Fans
- 7 powerful fans (8 cm x 8 cm x 3.8 cm) with optimal fan speed control 1 air shroud(s)
- Motherboard
- Super X12SPI-TF
- PC Health Monitoring
- 7+1 phase switching voltage regulator module (VRM) Monitors for CPU cores, chipset voltages, memory Fans with tachometer Pulse Width Modulation (PWM) fan connectors Status monitor for speed control CPU and chassis environment monitoring Thermal control for fan connectors
- Software
- IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI
- SATA\SAS
- SATA3 (6 Gb/s) via C621A chipset
