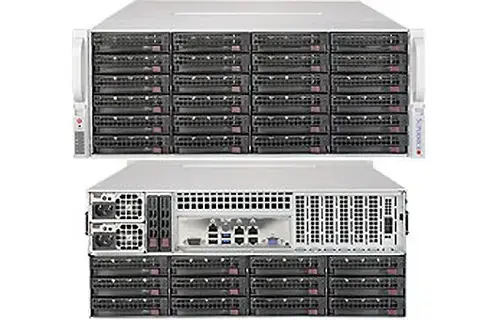

Server Supermicro SSG-6049P-E1CR36L
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
1 x Intel Xeon Scalable 2nd Gen
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Incl shipping across EU
Supermicro SSG-6049P-E1CR36L — Specifications
- Processor
- 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake / Skylake) CPU TDP support 70-205W
- Memory Capacity
- 16 DIMM modules up to 4TB 3DS ECC DDR4–2933 MHz supports Intel® Optane ™ DCPMM
- Chipset
- Intel® C622
- On-Board Devices
- SAS3 (12 Gb / s) via Broadcom 3008 AOC Broadcom 3008 controller SATA3 (6 Gb / s) with RAID 0, 1, 5, 10 2 10GBase-T LAN ports with Intel X722 + PHY Intel X557 Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
- I/O Ports
- 2 RJ45 10GBase-T LAN ports 1 dedicated IPMI LAN port with RJ45 connector 4 USB 3.0 ports (rear) 1 Type A 1 VGA port 1 fast UART 16550 port/1 front
- Software
- Intel® Node Manager IPMI 2.0 NMI SPM, SUM SuperDoctor® 5 Watchdog
- Form Factor
- 4U Rackmount
- Dimensions and Weight
- Width 17.2 inches (437 mm) Height 7 inches (178 mm) Depth 27.5 inches (699 mm) Net weight: 29.7 kg (65.5 lbs)
- Expansion Slots
- 3 PCI-E 3.0 x16 slots 4 PCI-E 3.0 x8 slots Slots 2 and 3 occupied by controller and JBOD expansion port
- Drive Bays
- 36 hot-swap 3.5-inch SAS3 / SATA3 drive bays 2 hot-swap 2.5-inch SATA3 drive bays (rear) Optional: 4 U.2 NVMe 2 M.2 NVMe
- Power Supply
- Redundant 1200W power supplies, Titanium
- Environmental Specifications
- Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 60 ° C (-40 ° F to 140 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
- Fans
- 3 redundant hot-swap 8 cm PWM cooling fans, 2 hot-swap rear 8 cm exhaust PWM fans.
