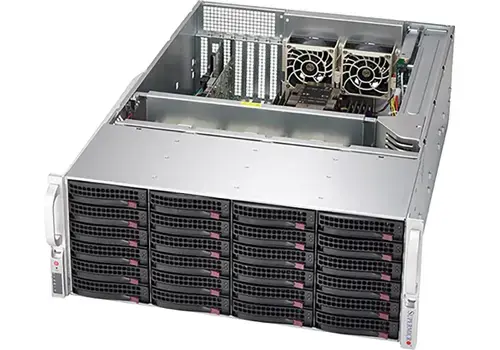

Server Supermicro SSG-640P-E1CR24L
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
2 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Incl shipping across EU
Supermicro SSG-640P-E1CR24L — Specifications
- Processor
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 120-270W cores up to 38C/96T
- Memory Capacity
- Up to 57MB cache Memory capacity: 16 DIMM slots Up to 4TB: 16x 256GB DRAM and 8x 512GB PMem Memory type: 3200 MHz ECC DDR4 RDIMM LRDIMM DCPMM Intel® Optane™ persistent memory 200 series
- Chipset
- Intel® C621A
- I/O Ports
- 1 dedicated IPMI LAN RJ45 port 4 USB 3.0 ports (4 rear_USB) 1 VGA port(s) 1 COM port(s) (1 rear) 2 Super DOM (Disk on Module) ports
- Chassis
- 4U rackmount Model CSE-846BE1C-R1K23B
- Dimensions and Weight
- Height 7 inches (178 mm) Width 17.2 inches (437 mm) Depth 26 inches (660 mm) Package 26.5 inches (H) x 34.3 inches (W) x 13.5 inches (D) Net weight: 86 lbs (39 kg) Gross weight: 118 lbs (53.52 kg)
- PCI-Express (PCI-E) Expansion Slots
- Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x8 LP Note PCIe slot 1/2 occupied by JBOD expansion/storage controller.
- Drive Bays
- 24 hot-swap 3.5-inch SATA3/SAS3 drive bays M.2: 1 M.2 NVMe slot
- Power Supply
- 1200W AC, Titanium level, redundant, PMBUS 1.2, +12V/+5V, 360x76x40 mm, HF, RoHS/REACH
- Operating Environment
- Operating temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating temperature: -40°C to 60°C (-40°F to 140°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Network Connection
- 2x 10GbE BaseT with Intel® X550
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- BIOS Type
- AMI 128 MB SPI Flash EEPROM
- Fans
- 5 high-performance 8 cm fans
- Motherboard
- Super X12DPi-NT6
- PC Health Monitoring
- 4+1 phase voltage regulator Monitors for CPU cores, chipset voltages, memory Fans with tachometer Pulse Width Modulation (PWM) fan connectors Status monitor for speed control CPU and chassis environment monitoring Thermal control for fan connectors
- Software
- IPMI 2.0 SUM NMI Watch Dog SuperDoctor® 5
- Power Configurations
- ACPI power management Power-on mode for AC power recovery
