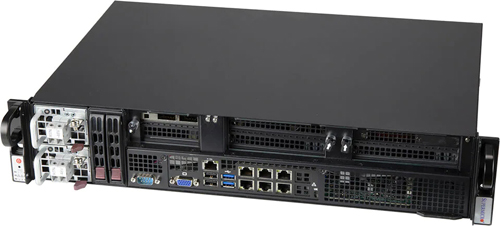

Server Supermicro SYS-210P-FRDN6T
New
Specification
Manufacturer
Supermicro
Form factor
2U
Supported CPU
1 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 8 slots (2 TB)
Supermicro SYS-210P-FRDN6T — Specifications
- Processor
- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 85-270W
- Memory Capacity
- Memory capacity: 8 DIMM slots Memory type: 3200 MHz ECC DDR4 RDIMM/LRDIMM Memory voltage 1.2V Error detection ECC
- Chipset
- Intel® C621A
- I/O Ports
- 2 USB 2.0 ports (2 front) 2 USB 3.0 ports (2 front) 1 VGA port(s) 1 COM port(s) (1 rear)
- Form Factor
- 2U Rackmount
- Dimensions and Weight
- Height 3.5 inches (89 mm) Width 17.2 inches (437 mm) Depth 11.8 inches (298.8 mm) Package 7.4 inches (H) x 19.3 inches (W) x 23.3 inches (D) Net weight: Net weight: 17 lbs (7.7 kg) Gross weight: 22 lbs (10 kg)
- PCI-Express (PCI-E) Expansion Slots
- Slot 1: PCIe 4.0 x16 or x8 slot (low-profile) Slot 2: PCIe 4.0 x16 x8 slot (low profile will be disabled if slot 1 is configured as PCIe 4.0 x16) Slot 3: 1 PCI-E 4.0 x8 FHHL (optional, if CPU less than 165W with 1U heatsink) Slot 5: 1 PCI-E 4.0 x16 FHHL Slot 6: 1 PCI-E 4.0 x16 FHHL
- Drive Bays
- 2x 2.5-inch hot-swap SATA hard drive bays 1 M.2 NVMe connector OR 1 M.2 SATA3 connector M-key, 2280/22110
- Power Supply
- Redundant -48V DC 600W power supplies with PMBus
- Operating Environment
- Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 60°C (-40°F to 140°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
- Network Connection
- 2 1/10GbE ports
- IPMI
- 4 1GbE ports
- SATA
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Fans
- SATA3 (6 Gb/s)
- Motherboard
- RAID 0/1 support
- PC Health Monitoring
- 4 powerful fans with optimal fan speed control
- Software
- Super X12SPM-LN6TF
