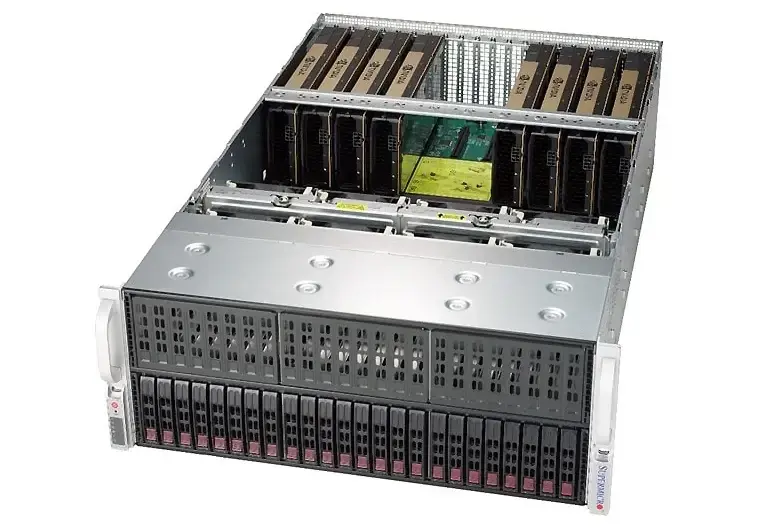

Server Supermicro SYS-4029GP-TRT2
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
1 x Intel Xeon Scalable 2nd Gen
Supported RAM
DDR4 DIMM 24 slots (6 TB)
Incl shipping across EU
Supermicro SYS-4029GP-TRT2 — Specifications
- Processor
- 2nd Gen Intel® Xeon® Scalable processors and Intel® Xeon® Scalable processors ‡ , 3 UPI up to 10.4 GT / s CPU TDP support 70-205W
- Memory Capacity
- 24 DIMM modules up to 6TB 3DS ECC DDR4–2933 MHz RDIMM / LRDIMM, supports Intel® Optane ™ DCPMM
- Chipset
- Intel® C622
- On-Board Devices
- SATA3 (6 Gb / s) with RAID 0, 1, 5, 10 Dual-port 10GbE from C622 Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
- I/O Ports
- 8 SATA3 ports (6 Gb / s) 2 RJ45 10GBase-T LAN ports 1 dedicated IPMI LAN port with RJ45 connector 4 USB 3.0 ports (rear) 1 VGA connector 1 COM port (front)
- Software
- Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog
- Form Factor
- 4U Rackmount
- Dimensions and Weight
- Height 7.0 "(178 mm) Width 17.2 inches (437 mm) Depth 29 inches (737 mm) Net weight: 29.7 kg (65.5 lbs)
- Expansion Slots
- PCI-Express 11 PCI-E 3.0 x16 slots (FHFL) - support for up to 10 GPUs 1 PCI-E 3.0 x8 slot (FH, FL, in x16)
- Drive Bays
- Up to 24 hot-swap 2.5-inch SAS / SATA drive bays Native support for 8x 2.5 "SATA 2x 2.5-inch NVMe supported natively 1 NVMe-based M.2 SSD Form factors: 2260, 2280, 22110
- Power Supply
- Redundant 2000W (2 + 2) Titanium Level (96% +) power supplies
- Environmental Specifications
- Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 60 ° C (-40 ° F to 140 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
- Fans
- 8 hot-swap 92 mm cooling fans
- Supported Graphics Processors
- 10 PCI-E 3.0 x16 double / single width (full height, full length) NVIDIA V100, P40, T4, Quadro, RTX
