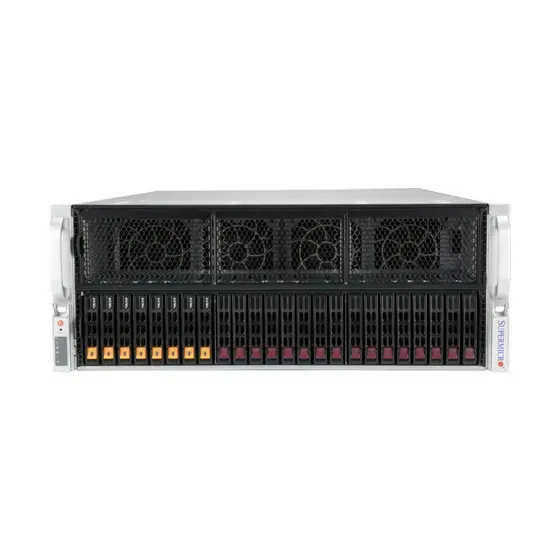

Server Supermicro SYS-420GP-TNR
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
2 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 32 slots (8 TB)
Incl shipping across EU
Supermicro SYS-420GP-TNR — Specifications
- Processor
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 270W cores Up to 40C/80T
- Memory Capacity
- Up to 60MB cache Memory capacity: 32 DIMM slots Up to 8TB: 32x 256GB DRAM Up to 12TB: 16x 512GB PMem Memory type: 3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series
- Chipset
- Intel® C621A
- Graphics Processor
- Supported GPU: Up to 10 PCI-E 3.0/4.0 x16 double/single width cards (full height and full length) NVIDIA A100, V100, A40, T4, Quadro RTX Intel® Data Center Flex 140/170 GPU Supports GPUs with active and passive cooling. Interprocessor-Graphics Processor: PCI-E 4.0 x16 dual-root switch GPU-GPU connection: NVIDIA® NVLink™ bridge (optional)
- Chassis
- 4U rackmount Model CSE-418G2TS-R4016BP
- Dimensions and Weight
- Height 7 inches (178 mm) Width 17.2 inches (437 mm) Depth 29 inches (737 mm) Package 26.57 inches (H) x 27 inches (W) x 41 inches (D) Net weight: 65.5 lbs (29.7 kg) Gross weight: 100 lbs (45.3 kg)
- PCI-Express (PCI-E) Expansion Slots
- Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 FHFL Slot 6: PCI-E 4.0 x16 FHFL Slot 7: PCI-E 4.0 x16 FHFL Slot 8: PCI-E 4.0 x16 FHFL Slot 9: PCI-E 4.0 x16 FHFL Slot 10: PCI-E 4.0 x16 FHFL Slot 11: PCI-E 4.0 x16 FHFL Slot 12: PCI-E 4.0 x16 FHFL
- Drive Bays
- 24 hot-swap 2.5-inch NVMe/SATA/SAS drive bays (8 dedicated 2.5-inch NVMe) M.2 2 M.2 NVMe connectors OR 2 M.2 SATA3 connectors
- Power Supply
- Redundant 2000W power supplies with PMBus
- Network Connection
- 2x 1GbE BaseT with Intel® I350
- IPMI
- Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- BIOS Type
- AMI 32 MB SPI Flash EEPROM
- Fans
- 8 powerful fans with optimal fan speed control
- Motherboard
- Super X12DPG-OA6
- PC Health Monitoring
- 7 +1 Phase switching voltage regulator Monitors for CPU cores, chipset voltages, memory Fans with tachometer Pulse Width Modulation (PWM) fan connectors Status monitor for speed control CPU and chassis environment monitoring Thermal control for fan connectors
- Software
- OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5
- Power Configurations
- ACPI power management Power-on mode for AC power recovery
- Operating Conditions
- Operating temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating temperature: -40°C to 60°C (-40°F to 140°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
