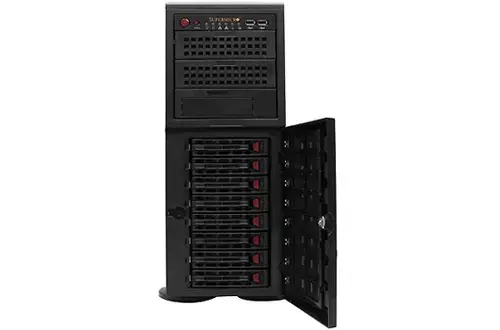

Server Supermicro SYS-7048R-TR
New
Specification
Manufacturer
Supermicro
Form factor
4U
Supported CPU
1 x Intel Xeon E-2100
Supported RAM
DDR4 DIMM 16 slots (8 TB)
Incl shipping across EU
Supermicro SYS-7048R-TR — Specifications
- Processor Family
- Intel Xeon E5-2600 v4/ v3
- Processor Core Count
- Up to 22
- Processor Cache
- Up to 55MB
- Graphics Controller
- ASPEED AST2400 BMC
- RAID Support
- 0, 1, 10, 5
- Memory Slots
- 16x 288-pin DDR4 DIMM slots up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
- Memory Type
- 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
- Maximum Memory Capacity
- 2TB
- Drive Bays
- 8x 3.5" SAS/SATA, hot-swap capable, 2x 5.25" peripheral drive bays, 1x 5.25" (fits 3.5" bay devices)
- Form Factor
- 4U Tower
- Power Supply
- 920W
- Chassis
- 452 x 178 x 648 mm
- Management
- SuperDoctor 5, Watch Dog, NMI, SPM, SUM, IPMI 2.0, Intel Node Manager
- Indicators
- Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED Power Fail LED
- PCI-Express Connectors
- 3x PCI-E 3,0 x8 (full-size, full-length) 3x PCI-E 3,0 x16 (full-size, full-length)
- Ports
- 2x RJ45 Gigabit Ethernet LAN ports
- Operating Temperature
- 1x RJ45 Dedicated IPMI LAN port Rear USB: 2x USB 3.0 + 2x USB 2.0
