Server Supermicro SYS-740GP-TNRT
New
Specification
Manufacturer
Supermicro
Form factor
Tower
Supported CPU
2 x Intel Xeon Scalable 3rd Gen
Supported RAM
DDR4 DIMM 16 slots (4 TB)
Supermicro SYS-740GP-TNRT — Specifications
- Processor
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP support 270W
- Memory Capacity
- Memory capacity: 16 DIMM slots Up to 4TB: 16x 256GB DRAM Up to 6TB: 8x 512GB PMem Memory type: 3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series
- Chipset
- Intel® C621A
- On-Board Devices
- 2 10GbE BaseT ports Intelligent Platform Management Interface v.2.0 support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- I/O Ports
- 1 VGA port(s)
- Software
- OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5
- Form Factor
- 4U Rackmount / Tower
- Dimensions and Weight
- Height 7 inches (178 mm) Width 17.2 inches (437 mm) Depth 29 inches (737 mm) Net weight: 46 lbs (20.9 kg)
- Expansion Slots
- PCI-Express (PCI-E) Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x16 LP Slot 7: PCI-E 4.0 x8 LP
- Drive Bays

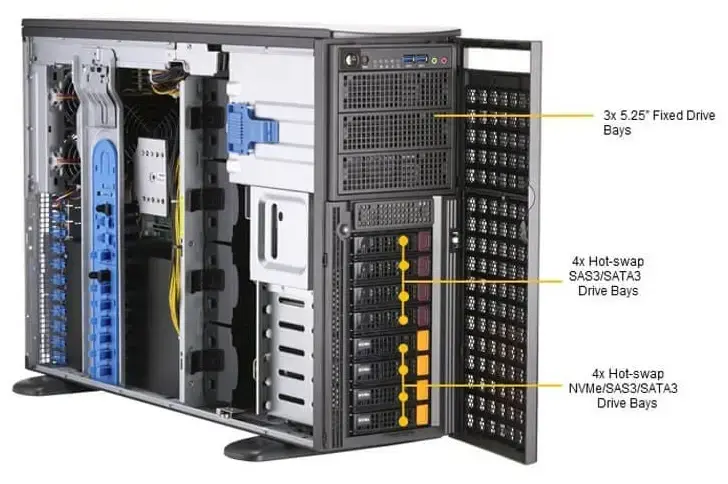

- 8 hot-swap 3.5-inch NVMe/SATA/SAS drive bays (4 dedicated 2.5-inch NVMe) 2 M.2 NVMe connectors OR 2 M.2 SATA3 connectors
- Power Supply
- 2 redundant 2200W Titanium level power supplies
- Environmental Specifications
- Operating temperature: 10 ° C ~ 35 ° C (50 ° F ~ 95 ° F) Storage temperature: -40 ° C to 60 ° C (-40 ° F to 140 ° F) Operating relative humidity: 8% to 90% (non-condensing) Storage relative humidity: 5% to 95% (non-condensing)
- Fans
- 4 powerful fans with optimal fan speed control
