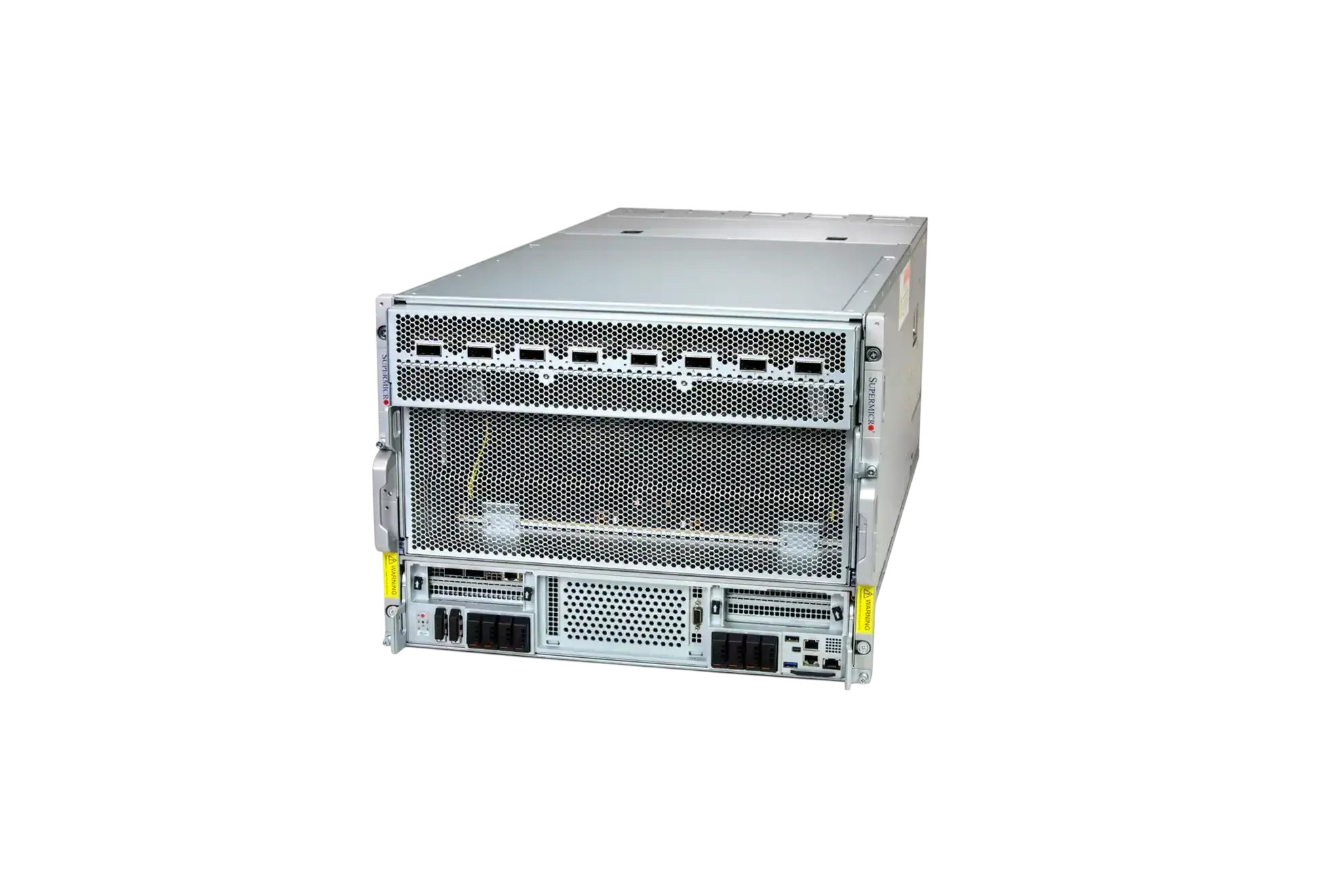

Supermicro SYS-822GS-NB3RT HGX B300 NVL8 8NVMe
- Condition
- New
- Manufacturer
- Supermicro
- Form factor
- 8U
- CPU
- 2 x Intel Xeon 6768P (64C 336MB Cache 2.40 GHz)
- RAM
- 24 x 96GB DDR5-6400 ECC RDIMM
- Power supply unit
- 6 x 6600W Titanium (3+3)
- HDD
- 8 x 3.2TB NVMe PCIe Gen5 E1.S + 2 x 960GB NVMe PCIe 4.0 M.2
- NIC card
- 8 x NVIDIA ConnectX-8 SuperNIC 800Gb OSFP (XDR InfiniBand), 2 x NVIDIA ConnectX-6 LX 25GbE SFP28
- GPU
- 1 x NVIDIA HGX B300 NVL8 (8 GPU)
- Accelerator manufacturer
- NVIDIA
- Accelerator model
- NVIDIA B300
- Installed GPU/APU count
- 8
- Maximum GPU/APU count
- 8 onboard GPUs
- Memory per accelerator
- 288GB
- Total accelerator memory
- 2304GB
- GPU memory type
- HBM3e
- Accelerator memory bandwidth
- 8000 GB/s (8 TB/s) per GPU
- Accelerator form factor
- SXM
- Accelerator interconnect
- Fifth-generation NVIDIA NVLink with NVSwitch
- Accelerator-to-CPU interface
- PCIe 5.0 x16 per GPU
- Supported compute data types
- FP64, FP32, TF32, BF16, FP16, FP8, FP6, FP4, INT8
- Accelerator virtualization
- NVIDIA vGPU, MIG-backed vGPU and GPU passthrough
- MIG support
- Up to 7 isolated GPU instances per GPU
- Software ecosystem
- NVIDIA CUDA, CUDA-X and NGC; NVIDIA AI Enterprise-compatible
- Maximum system power
- 19.8kW
- Cooling
- Air cooling with up to 12 heavy-duty fans and optimal fan speed control
- Recommended workloads
- Large-scale AI reasoning, LLM training, fine-tuning and high-throughput inference, generative and multimodal AI, HPC and scientific computing
- Dimensions
- 356 x 449 x 950 mm (H x W x D)
- Weight
- 119 kg
Need a technical consultation on choosing a server?
Submit a requestSupermicro SYS-822GS-NB3RT HGX B300 NVL8 8NVMe is an 8U enterprise server storage configuration with eight front hot-swap E1.S PCIe 5.0 NVMe bays, populated with eight 3.2TB drives, plus two 960GB M.2 NVMe boot drives. It is designed for AI factories, research centers, cloud providers and enterprise data centers that need fast local storage for AI, accelerated analytics and HPC workloads.
Key features:
-
Storage basket and service access: The selected storage basket comprises eight front hot-swap E1.S PCIe 5.0 NVMe bays, populated with eight 3.2TB drives, plus two 960GB M.2 NVMe boot drives. Front- or rear-accessible hot-swap service, as applicable to the specified bays, helps reduce planned maintenance time without opening the main chassis.
-
Installed accelerator subsystem: The installed accelerator subsystem contains NVIDIA HGX B300 NVL8 (8 GPUs). It provides 2,304GB HBM3E (8 x 288GB). Fifth-generation NVIDIA NVLink with NVSwitch delivers up to 1.8TB/s of GPU-to-GPU bandwidth per GPU.
-
Storage topology and data path: The NVMe bays connect through the platform PCIe storage path. Storage, accelerator and network resources are arranged to support sustained data movement for datasets, checkpoints and local scratch space.
-
Enterprise compute platform: The compute subsystem combines 2 x Intel Xeon 6768P (64 cores, 2.4GHz) with 2,304GB DDR5-6400 ECC registered memory (24 x 96GB). It supplies the CPU, memory and PCIe resources required to feed the accelerator complex and host production services.
-
Management and availability: Dedicated BMC connectivity and Supermicro lifecycle-management tools, together with 6 x 6600W redundant (3+3) Titanium-level power supplies, support remote administration, component monitoring, planned service operations and resilient data-center operation.
Use cases:
-
AI model training and fine-tuning: Uses the installed NVIDIA HGX B300 NVL8 subsystem for deep learning, generative AI and large-model development.
-
Inference and production AI services: Provides accelerator memory and parallel compute for LLM, multimodal and enterprise inference workloads.
-
HPC, simulation and analytics: Accelerates scientific computing, numerical simulation, engineering, analytics and other parallel workloads supported by the installed accelerator subsystem.
-
Data-intensive pipelines: Combines the specified 8NVMe storage configuration with high-bandwidth accelerator and network paths for datasets, checkpoints, staging and local scratch storage.
Supermicro SYS-822GS-NB3RT HGX B300 NVL8 8NVMe is a purpose-built 8U platform for organizations that need the specified storage basket, installed NVIDIA HGX B300 NVL8 acceleration and enterprise-class lifecycle management in one deployable system.
