Dell PowerEdge R470 8SFF
You might be interested in
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Processor
1 x Intel® Xeon® 6 E-core processor up to 144 cores, or 1 x Intel® Xeon® 6 P-core processor up to 86 cores with R1S option
Memory
DDR5: up to 16 x RDIMM (1 TB with Xeon 6 E-core / 4 TB with Xeon 6 P-core R1S), speed up to 6400 MT/s, registered ECC only
Storage controllers
- Internal RAID: PERC H365i/H965i
- External: HBA465e, H965e RAID
- Boot: BOSS-N1 DC-MHS, M.2 NVMe or USB
Drive bays
Front bays
- Up to 16 x EDSFF E3.S Gen5 NVMe
- Up to 10 x 2.5-inch SATA/NVMe
- Up to 4 x 3.5-inch SATA with rear E3.S drives
Rear bays
- Up to 2 x EDSFF E3.S Gen5 NVMe
Power supplies
- 800 W / 1100 W Platinum/Titanium
- 1500 W Titanium
- 1500 W 277 VAC/HVDC Titanium
- 1400 W -48 VDC Titanium
Cooling and fans
Air cooling; up to 4 hot-swappable dual-fan modules
Dimensions
- Height: 42.8 mm (1.69 inches)
- Width: 482 mm (19.0 inches)
- Depth: up to 829.44 mm (32.66 inches)
- Weight: up to 19.11 kg (42.13 lb)
Form factor
1U rack server
Embedded management
- iDRAC
- iDRAC Direct
- iDRAC RESTful API with Redfish
Security
- Cryptographically signed firmware
- Data at Rest Encryption with SEDs and local or external key management
- Secure Boot
- Secured Component Verification with hardware integrity check
- Secure Erase
- Silicon Root of Trust
- System Lockdown, requires iDRAC10 Enterprise or Datacenter
- TPM 2.0 FIPS, CC-TCG certified
- Chassis Intrusion Detection
Networking
- 1 Gb dedicated BMC Ethernet port
- OCP NIC 3.0: up to 2 cards, front or rear
GPU options
Up to 4 x 75 W single-width GPUs
Ports
Front ports
- 1 x USB 2.0 Type-C
- 1 x USB 2.0 Type-A, optional
- 1 x Mini-DisplayPort, optional
- 1 x DB9 Serial with front I/O
- 1 x Dedicated BMC Ethernet with front I/O
Internal ports
- 1 x USB 3.1 Type-A
Rear ports
- 1 x Dedicated BMC Ethernet
- 2 x USB 3.1 Type-A
- 1 x VGA
PCIe
Up to 4 x PCIe Gen5 slots with x16 connectors
Operating systems
- Canonical Ubuntu Server LTS
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Windows Server
- Windows Server Datacenter
I/O configurations
Rear I/O hot aisle or front I/O cold aisle
Need a technical consultation on choosing a server?

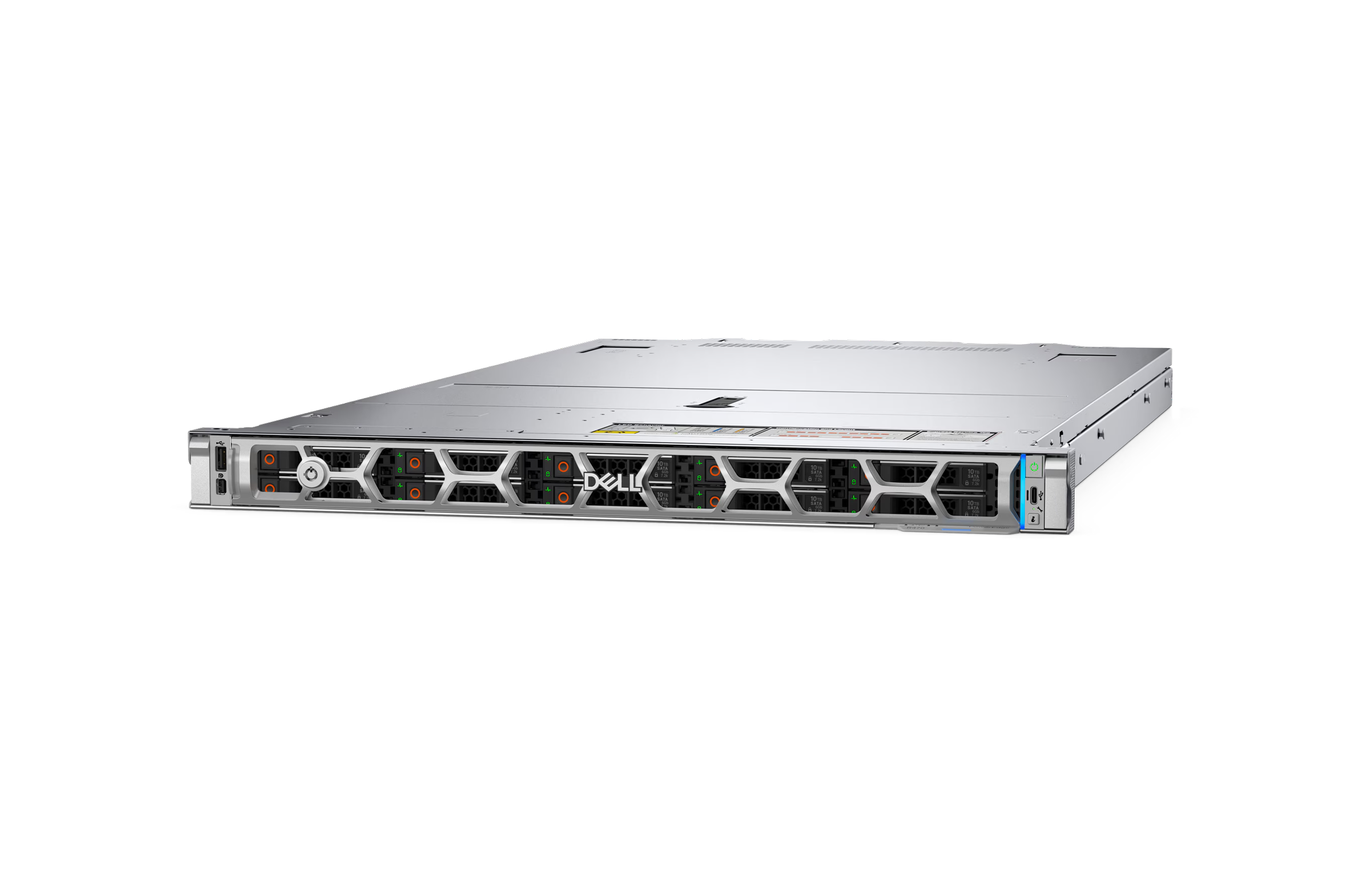

Submit a requestDell PowerEdge R470 8SFF is an 8-bay 2.5-inch SFF storage configuration for Dell’s compact 1U single-socket PowerEdge R470. It is designed for virtualization, edge, scale-out database, and software-defined infrastructure workloads that need dense front-access storage and validated SAS4/SATA or NVMe options.
Key features:
-
8 front 2.5-inch SFF bays: Provides eight front-accessible 2.5-inch SFF hot-swap bays, delivering serviceable local storage in a compact rack chassis.
-
Separate SAS4/SATA and NVMe paths: Dell offers distinct 8-bay configurations for SAS4/SATA drives, direct-attached NVMe drives, or NVMe hardware RAID. Supported media are determined by the selected chassis, backplane, cabling, and controller.
-
Dell PERC 12 controller options: Supported RAID builds use Dell PERC H365i or H965i controllers. The platform does not support mixing SAS, SATA, and NVMe behind the same Tri-Mode controller.
-
Efficient single-socket 1U platform: A single Intel Xeon 6 processor, 16 DDR5 DIMM slots, and PCIe Gen5 I/O provide a balanced foundation for dense enterprise compute.
-
Enterprise serviceability and management: Hot-swap drive access, iDRAC10, and Dell OpenManage tools simplify remote monitoring, lifecycle management, and planned maintenance.
Use cases:
-
Virtualization and private cloud: Provides dense local storage for virtual machines, hypervisors, and private cloud nodes.
-
Edge and distributed infrastructure: Fits branch, retail, telecom, and remote-site deployments that need compact compute with serviceable local storage.
-
Scale-out databases: Supports nodes where storage throughput, compute density, and predictable horizontal scaling are important.
-
Software-defined storage: Can serve as a storage-rich node for software-defined and hyperconverged infrastructure when configured with validated drives and controllers.
Dell PowerEdge R470 8SFF is a flexible 1U storage configuration for organizations that need eight serviceable SFF bays, Intel Xeon 6 compute, and a clearly defined SAS4/SATA or NVMe storage path.
