Processors: Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory: 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only
Storage controllers: Internal Controllers: PERC H745, HBA355I, S150, H345, H755, H755N Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): PERC H840, HBA355E
Drive bays: Front bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies: 800 W Platinum AC/240 Mixed Mode 1100 W Titanium AC/240 Mixed Mode 1400 W Platinum AC/240 Mixed Mode 1100 W DC -48 - 60 V
Cooling options: Air cooling, optional processor liquid cooling
Fans: Standard fan/High performance SLVR fan/High performance GOLD fan Up to six hot plug fans
Dimension: Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 758.3 mm (29.85 inches) - without bezel and 772.14 mm (30.39 inches) - with bezel
Form Factor: 2U rack server
Embedded management: iDRAC9 iDRAC Direct iDRAC Service Module Quick Sync 2 wireless module
Bezel: Optional bezel or security bezel
OpenManage Software: OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility: OpenManage Mobile
Integrations and Connections: OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security: Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC: 2 x 1 GbE LOM
Network Options: 1 x OCP 3.0 (x8 PCIe lanes)
GPU options: Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators
Ports: Front Ports 1 x Dedicated iDRAC Direct micro-USB 1 x USB 2.0 1 x VGA Internal Ports 1 x USB 3.0 Rear Ports 1 x USB 2.0 1 x Serial (optional) 1 x USB 3.0 2 x RJ-45 1 x VGA (optional for liquid cooling configuration)
PCIe: Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
Operating System and Hypervisors: Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
OEM-ready version availabe: From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

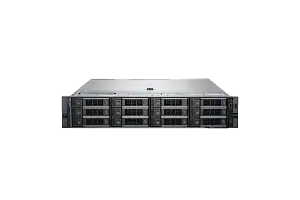

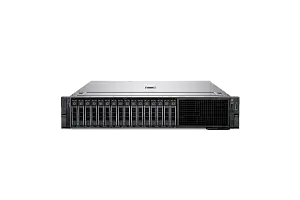

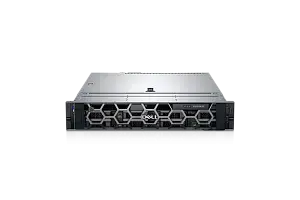

DELL PowerEdge R750 Server

Frequently
asked
questions

Got your own question?
Ask to consultant

What is included in the 5-year warranty for the DELL PowerEdge R750 Server?

The Servermall warranty includes:

Access on a 24x7 basis (including holidays) to the Servermall Customer Service and Support organization for troubleshooting assistance of Servermall Refurbished Servers and Associated Goods and select software issues.
5 year warranty. In case of problem diagnostics or repair, we will do on the server installation site. For free.
On-site dispatch of replacement parts to the Installation Site or other mutually agreed upon Customer’s business location approved by Servermall to address a Product problem.

How to get a discount on the DELL PowerEdge R750 Server?

Subscribe to our news and get a 50 € discount on the server.

Subscribe to the news

What are the terms of delivery of the DELL PowerEdge R750 Server?

Free shipping across EU if ordering equipment from 500 €. Delivery from 4 working days.

Files

PDF

Datasheet.pdf
