In the era of digital transformation, corporate data volumes are growing exponentially, and choosing the right storage server has become a critical business decision. Modern data storage servers must provide not only high capacity but also reliability, scalability, and performance when working with large data arrays.
The best data storage servers in 2025 are high-performance systems supporting up to 24 drive bays, enterprise-grade RAID controllers, and the ability to scale to hundreds of terabytes. Solutions such as the DELL PowerEdge R750xs and HPE DL380 Gen11 provide storage capacity up to 184 TB and 368 TB respectively, support NVMe technologies for mission-critical applications, and feature advanced data protection capabilities.
In this article, we will review top server platforms for organizing corporate storage systems, analyze their technical specifications, and help you choose the optimal solution for your needs — from file storage and databases to backup systems and virtualization.
Data Storage Servers Comparison Table
| Model | Processor | Memory | Storage | Use Cases |
|---|---|---|---|---|
| DELL PowerEdge R750xs | Up to two 3rd Gen Intel Xeon Scalable (up to 32 cores) | Up to 1 TB DDR4 | Up to 16 x 2.5" + 2 rear bays (up to 184.32 TB) | Large file storage, databases, archives |
| DELL PowerEdge R740xd | Up to two 2nd Gen Intel Xeon Scalable (up to 28 cores) | Up to 3 TB DDR4 | Up to 24 x 2.5" front + 4 mid + 4 rear bays (max 203 TB) | Large-scale storage, media content, virtualization |
| HPE DL380 Gen11 | 4th/5th Gen Intel Xeon Scalable (up to 60 cores) | Up to 8 TB DDR5 | Up to 24 x 2.5" SAS/SATA/NVMe (up to 368 TB) | Enterprise storage, mission-critical applications, hybrid systems |
| DELL PowerEdge R550 | Up to two 3rd Gen Intel Xeon Scalable (up to 24 cores) | Up to 1 TB DDR4 | Up to 16 x 2.5" SAS/SATA or 8 x 3.5" (up to 128 TB) | Mid-scale storage, backup, file servers |
| HPE DL380 Gen10 Plus | 3rd Gen Intel Xeon Scalable (up to 40 cores) | Up to 11.2 TB (with Intel Optane) | Up to 24 x 2.5" SAS/SATA/NVMe + rear bays (up to 184 TB) | High-density storage, data centers, cloud solutions |
DELL PowerEdge R750xs
The DELL PowerEdge R750xs server represents a specialized 2U data storage platform with extended scalability capabilities. This model is optimized for scenarios requiring maximum storage density while maintaining high computational performance.
Technical Specifications
- Processors: up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
- Memory: 16 DDR4 DIMM slots, up to 1 TB, speeds up to 3200 MT/s
- Storage: up to 16 x 2.5" SAS/SATA SFF front drives, up to 2 x 2.5" rear drives
- Maximum capacity: up to 184.32 TB with SAS/SATA and NVMe combination
- RAID controllers: PERC H345, H355, H745, H755, H755N, HBA355i, S150
- Power supplies: 600W, 800W, 1100W, 1400W Platinum/Titanium hot-plug
- Management: iDRAC9 with remote management capabilities
- Network adapters: 2 x 1 GbE LOM, optional OCP 3.0
Best For
The DELL PowerEdge R750xs is ideal for organizations needing to deploy high-performance data storage systems with flexible scaling capabilities. The server excels at building large file storage systems, enterprise-level backup systems, storage-intensive databases, and virtualization systems with high data density requirements. With support for up to 32 cores per processor and up to 1 TB of memory, this server can efficiently handle not only storage but also complex computational tasks on large data volumes.

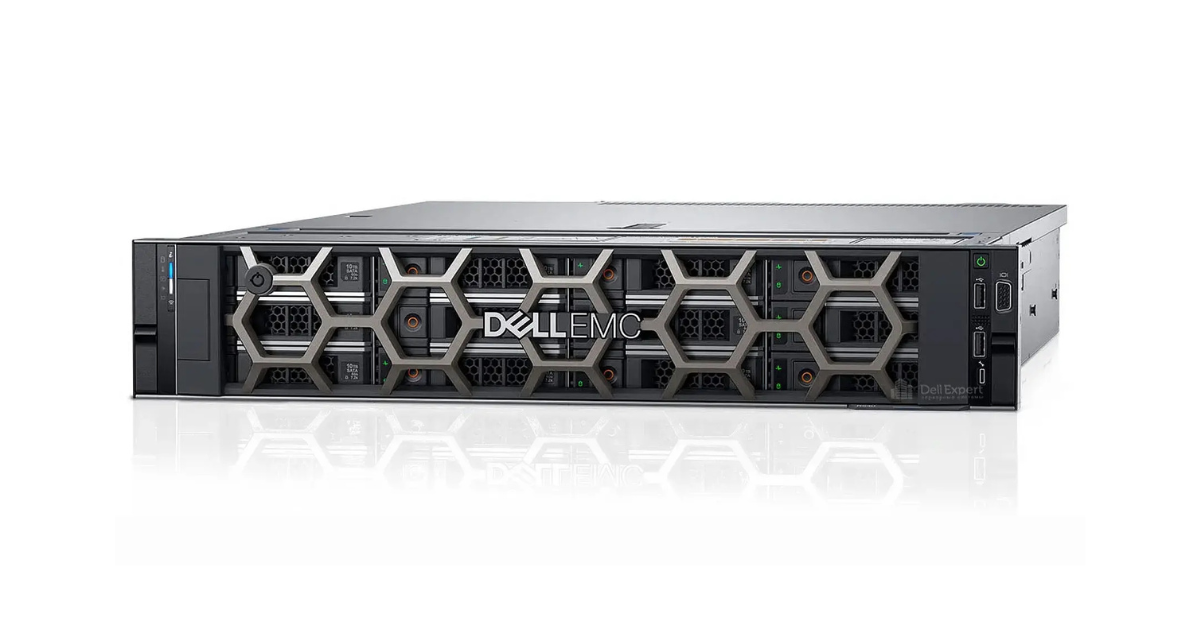

DELL PowerEdge R740xd
The DELL PowerEdge R740xd platform is one of the most capacious data storage solutions in the DELL lineup. Thanks to its unique configuration with front, mid, and rear drive bays, this 2U server can accommodate up to 32 drives simultaneously, providing unprecedented storage density.
Technical Specifications
- Processors: up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor
- Memory: 24 DIMM slots, support for RDIMM/LRDIMM up to 3 TB, up to 12 NVDIMM (192 GB)
- Front bays: up to 24 x 2.5" SAS/SATA/NVMe (up to 153 TB) or 12 x 3.5" (up to 144 TB)
- Mid bays: up to 4 x 2.5" (up to 25 TB) or 4 x 3.5" (up to 48 TB)
- Rear bays: up to 4 x 2.5" (up to 25 TB) or 2 x 3.5" (up to 24 TB)
- Total maximum capacity: over 200 TB
- RAID controllers: PERC H730P, H740P, Software RAID S140, HBA330
- Power supplies: from 495W to 2000W Platinum/Titanium
- Cooling: up to 6 hot-plug fans with redundancy
Best For
The DELL PowerEdge R740xd is the optimal choice for enterprises working with massive data volumes requiring maximum storage density. The server is excellent for building large-scale media content storage systems, digital archives, surveillance systems with long-term recording retention, centralized storage for virtualized environments, and organizing multi-tier storage systems with SSD combinations for hot data and HDD for cold archives. The ability to install drives in front, mid, and rear bays allows flexible configuration to meet the specific requirements of various applications.
HPE DL380 Gen11
The HPE DL380 Gen11 server represents HPE's flagship data storage solution, built on the latest 5th Generation Intel Xeon Scalable platform. This versatile 2U server combines exceptional processor performance, massive memory capacity, and impressive storage capacity, making it an ideal choice for the most demanding enterprise applications.
Technical Specifications
- Processors: 4th/5th Generation Intel Xeon Scalable, 16 to 60 cores per processor
- Maximum clock speed: up to 5.8 GHz
- Memory: 32 DDR5 slots, up to 8 TB with 256 GB modules
- Storage: 8 or 12 LFF SAS/SATA/SSD; 8, 16, or 24 SFF SAS/SATA/NVMe
- Maximum storage capacity: up to 368 TB
- Optional bays: 6 SFF rear or 2 SFF rear drives
- RAID controllers: HPE SR932i-p, MR216i-o, MR416i-o, MR408i-o
- Power supplies: 800W, 1000W, 1600W with redundancy support
- Management: HPE iLO 6 Standard with intelligent provisioning
- Expansion: up to 8 PCIe Gen5 slots and 2 OCP 3.0
Best For
The HPE DL380 Gen11 is a universal platform for organizations requiring maximum performance and storage capacity in a single solution. The server is ideal for deploying enterprise mission-critical data storage systems, high-load databases with low-latency requirements, virtualization platforms with large numbers of virtual machines, hybrid cloud solutions, big data analytics systems, and software-defined storage (SDS) organization. Support for the latest 5th Generation Intel Xeon Scalable processors and DDR5 memory provides significant performance gains over previous generations, which is especially important for memory and compute-intensive applications.
DELL PowerEdge R550
The DELL PowerEdge R550 server is a reliable mid-scale data storage solution in a 2U form factor. This platform combines a balance between storage capacity, performance, and affordable cost, making it an attractive choice for small and medium-sized businesses.
Technical Specifications
- Processors: up to two 3rd Generation Intel Xeon Scalable with up to 24 cores
- Memory: 16 DDR4 RDIMM slots, up to 1 TB, speeds up to 2933 MT/s
- Storage: up to 16 x 2.5" SAS/SATA (up to 122.88 TB) or 8 x 3.5" (up to 128 TB)
- RAID controllers: PERC H345, H355, HBA355i, H745, H755, S150
- Boot devices: Boot Optimized Storage Subsystem (BOSS-S2), USB, Dual SD Module
- Power supplies: 600W or 800W Platinum with redundancy option
- Cooling: up to 5 cabled fans
- Management: iDRAC9, Quick Sync 2
- Network adapters: 2 x 1 GbE LOM, optional OCP 3.0
Best For
The DELL PowerEdge R550 is perfect for mid-sized organizations needing to deploy a reliable and cost-effective data storage solution. The server is ideal for building departmental and branch file servers, mid-scale backup systems, storage for office applications and document management, database servers for business applications, and virtualization systems for small and medium enterprises. With support for both 2.5" and 3.5" drives, you can choose the optimal configuration — SFF for performance or LFF for maximum capacity at a reasonable cost per gigabyte.

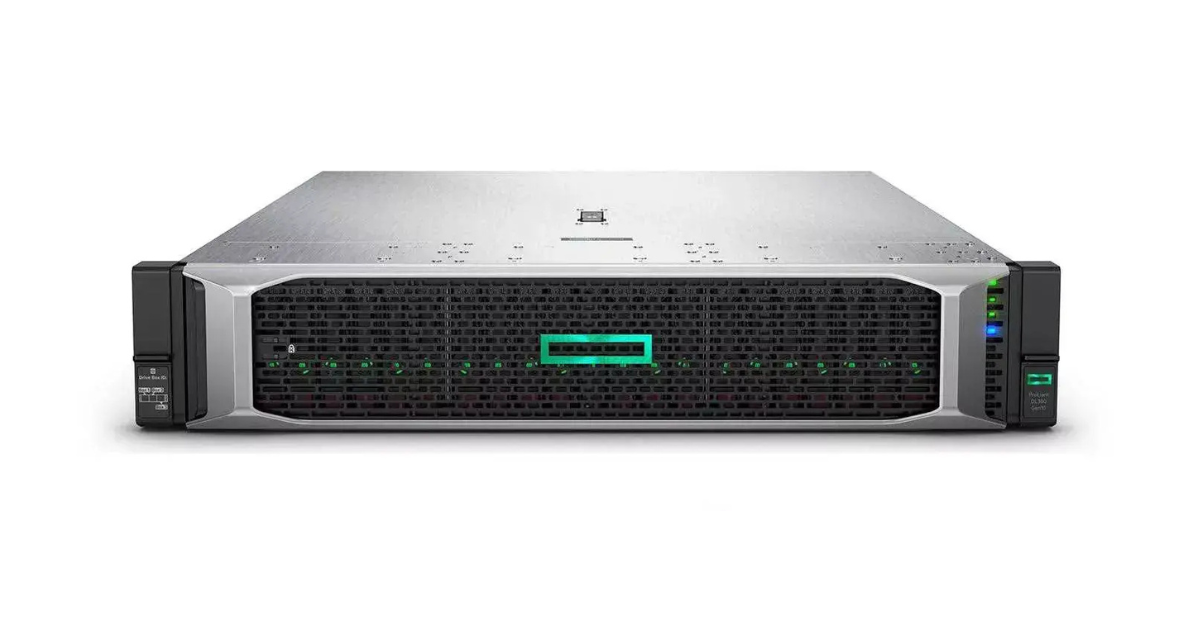

HPE DL380 Gen10 Plus
The HPE DL380 Gen10 Plus platform is built on 3rd Generation Intel Xeon Scalable processors and represents a proven solution for organizing corporate storage systems. This 2U server provides an outstanding combination of storage capacity, performance, and reliability.
Technical Specifications
- Processors: 3rd Generation Intel Xeon Scalable, 16 to 40 cores
- Maximum clock speed: up to 3.1 GHz
- Memory: 32 slots, up to 11.2 TB with Intel Optane Persistent Memory
- Support for RDIMM up to 4 TB and LRDIMM with Intel Optane up to 5.6 TB per processor
- Storage: 8 or 12 LFF; 8, 10, 16, 18, or 24 SFF SAS/SATA/NVMe
- Optional bays: 8 SFF mid, 6 SFF or 3 LFF rear, 2 SFF rear
- NVMe support: up to 20 SFF NVMe drives
- RAID controllers: HPE SR932i-p, SR416i-a, MR216i-a/p, MR416i-a/p, Smart Array P816i-a
- Power supplies: from 495W to 1600W with 1+1 redundancy
- Management: HPE iLO 5 Standard with Intelligent Provisioning
Best For
The HPE DL380 Gen10 Plus is a universal solution for a wide range of enterprise-level data storage tasks. The server excels at deploying high-performance storage systems for data centers, building virtualization platforms with high virtual machine density, organizing storage systems for cloud services, implementing software-defined storage, and for applications requiring a combination of large memory capacity and fast data access. Unique support for Intel Optane Persistent Memory enables ultra-low data access latencies, which is critical for in-memory databases and real-time analytics systems.
Data Storage Server Selection Guide
Selection Criteria
When choosing a data storage server, several key factors must be considered that will determine the effectiveness of the solution for your tasks:
Data volume and storage capacity: Determine current storage needs and forecast data growth for 3-5 years ahead. For small file storage (up to 50 TB), the DELL PowerEdge R550 is suitable. For large corporate archives (100-200 TB), choose the DELL PowerEdge R740xd or HPE DL380 Gen11.
Drive types: 3.5" SAS/SATA HDD drives provide maximum capacity at low cost per gigabyte and are ideal for archives and cold storage. 2.5" SAS/SATA SSD drives offer a balance between performance and capacity for actively used data. NVMe SSDs provide maximum performance for mission-critical applications and databases with low-latency requirements.
Performance and computational power: For systems that not only store but also actively process data (databases, analytics), processor performance is important. The HPE DL380 Gen11 with 5th Generation Intel Xeon processors provides maximum computational performance. For predominantly file storage, more affordable configurations are sufficient.
Data protection and RAID: Always consider fault tolerance requirements. Hardware RAID controllers (PERC H745, H755, HPE MR416i) provide better performance and reliability compared to software solutions. For mission-critical data, consider RAID 6 or RAID 10 configurations.
Scalability: If data volume growth is planned, choose servers with maximum drive bays and expansion capabilities. The DELL PowerEdge R740xd with front, mid, and rear bays provides maximum scaling flexibility.
Application Recommendations
For file servers and shared access: Choose the DELL PowerEdge R550 or DELL PowerEdge R750xs with 3.5" SATA drive configuration for maximum capacity at reasonable cost. These solutions provide a balance of performance and capacity for shared access to documents, media files, and common resources.
For backup systems: Servers with large numbers of bays and support for heterogeneous drive types are ideal. The DELL PowerEdge R740xd allows organizing a multi-tier system with fast SSDs for recent backups and capacious HDDs for long-term storage.
For databases: Choose platforms with NVMe support and large memory capacity. The HPE DL380 Gen11 and HPE DL380 Gen10 Plus with Intel Optane provide ultra-low latencies and high transaction performance. Configuration with NVMe drives will significantly accelerate database read/write operations.
For high-density virtualization: A combination of high computational power, large memory, and fast storage is necessary. The HPE DL380 Gen11 with 8 TB of DDR5 memory and up to 60 cores can efficiently handle dozens of virtual machines simultaneously.
For media content and archives: When maximum capacity is required for storing video, photos, and other media files, the optimal choice is the DELL PowerEdge R740xd with 12 x 3.5" LFF large-capacity drive configuration. This provides the lowest cost for storing a petabyte of data.
For cloud services and SDS: Software-defined storage requires servers with a balance between processor power, memory, and storage. The DELL PowerEdge R750xs or HPE DL380 Gen10 Plus are ideal for deploying solutions such as Ceph, GlusterFS, or Windows Storage Spaces Direct.
Conclusion
Choosing the right data storage server is an investment in your business's future that will determine the efficiency of working with information for years to come. Modern DELL and HPE server platforms offer a wide range of solutions for any task — from small file storage to large-scale corporate data centers.
If you need the maximum number of drive bays and configuration flexibility, consider the DELL PowerEdge R740xd with its unique front, mid, and rear bay system. For maximum performance and use of the latest technologies, choose the HPE DL380 Gen11 with 5th generation processors and DDR5 memory. If you need a balance between capacity, performance, and cost, consider the DELL PowerEdge R550 or DELL PowerEdge R750xs.
All featured servers are available for order in various configurations on ServerMall. Our specialists will help you select the optimal configuration for your tasks, calculate the necessary capacity and performance. Browse our complete server catalog and get expert advice on choosing equipment for your data storage system.
