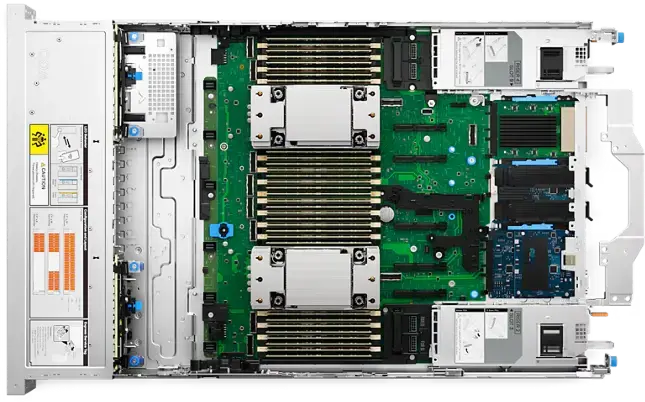

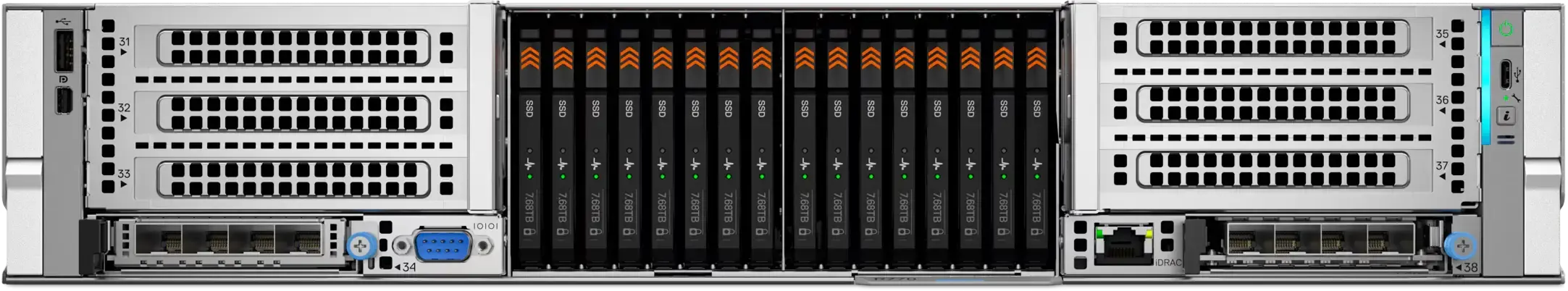

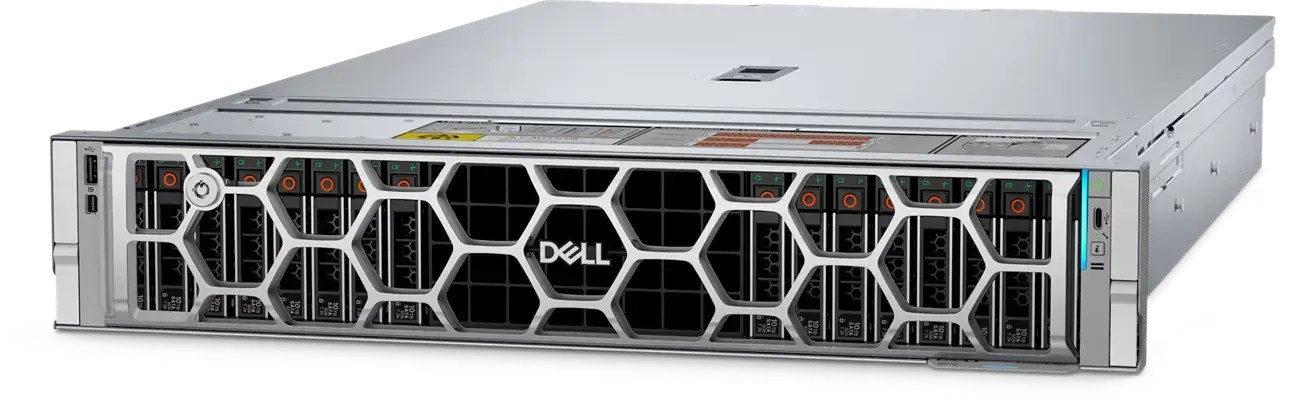

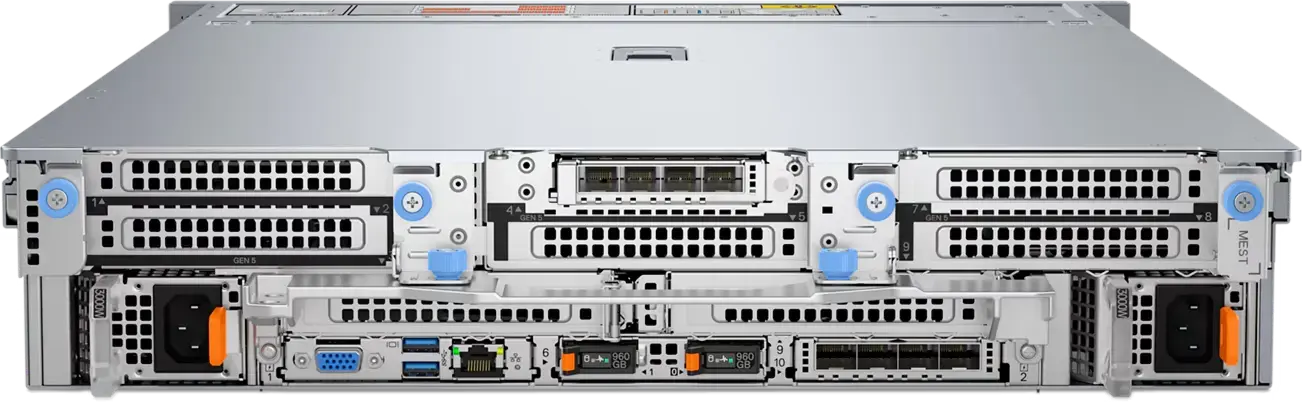

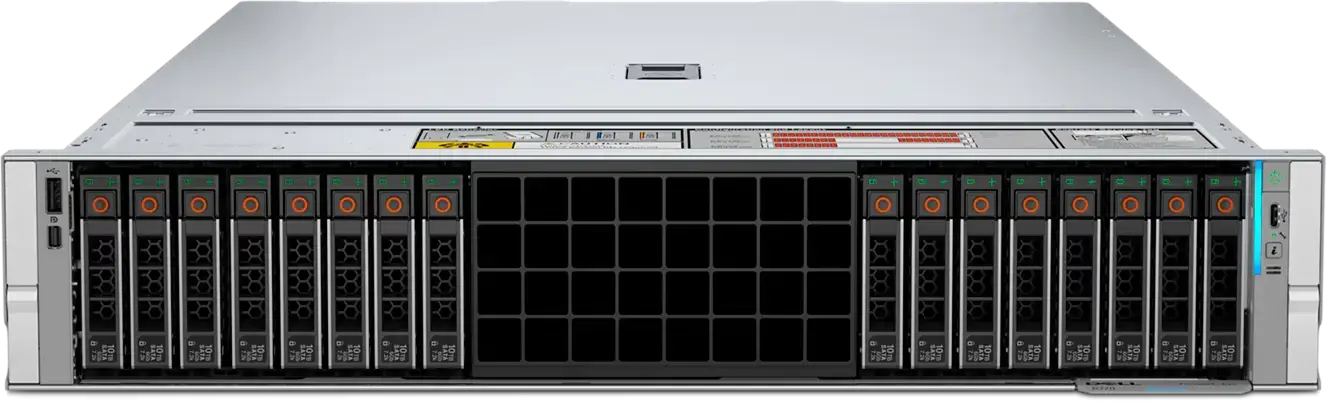

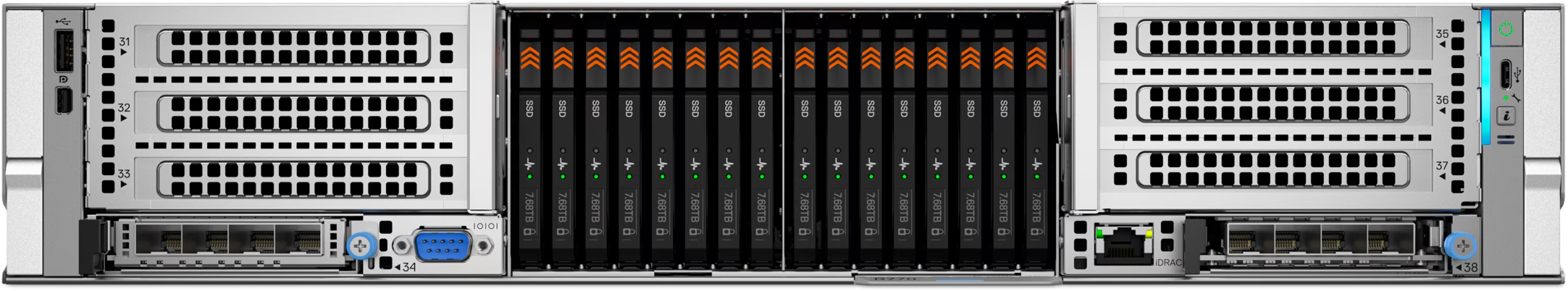

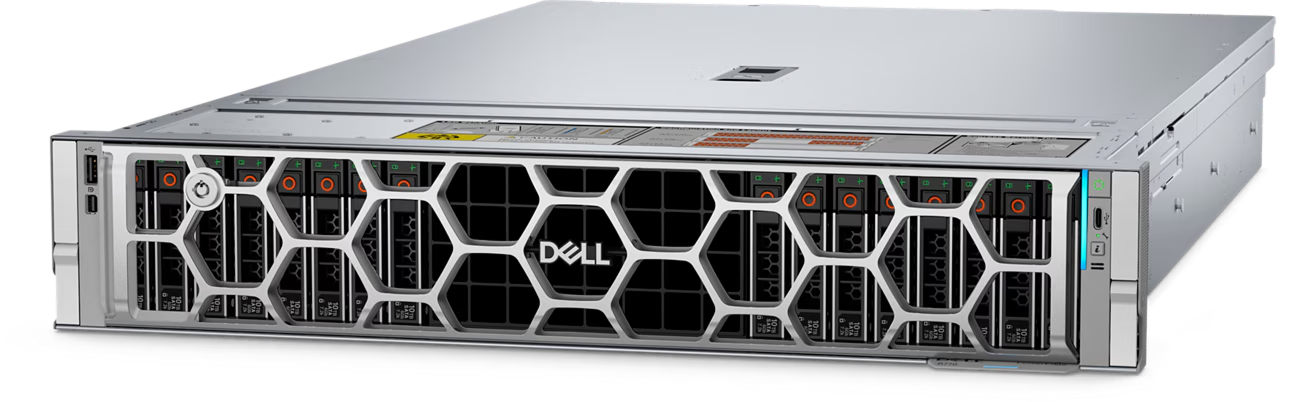

DELL PowerEdge R770 Server
You might be interested in
Free shipping across the EU for orders over 500 € Contact manager
5-year warranty on servers and storage systems
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
R770
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Total price
Can’t find the parts you need? We’ll find a solution
This is not a quote. Final price depends on configuration and current market conditions. Check up-to-date prices with our manager
Dell R770 16SFF
Condition
New
Allocate VAT
Free shipping across the EU for orders over 500 € Contact manager
5-year warranty on servers and storage systems
Work for you since 2018
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
DELL R770 Technical specifications
- Processor
- Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
- Memory
- 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
- Supports registered ECC DDR5 DIMMs only
- Storage controllers
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
- Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
- Front and Rear Bays
- No backplane configuration
- Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB also comes with FIO configuration
- Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB also comes with FIO configuration
- Up to 32 x EDSFF E3.S Gen5 NVMe max 1966.08 TB
- Up to 8 x 2.5 inch SATA/NVMe max 491.52 TB
- Up to 8 x 2.5-inch Universal max 491.52 TB
- Up to 16 x 2.5 inch SATA max 61.44TB
- Up to 24 x 2.5 inch SATA max 92.16 TB
- Up to 16 x 2.5 inch SATA + 8 x 2.5-inch NVME max 552.96 TB
- Up to 40 x EDSFF E3.S Gen5 NVMe max 2457.6 TB
- Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB on the rear
- Hot swap Power Supplies
- 800 W Platinum 100—240 VAC or 240 VDC
- 1100 W Platinium 100—240 VAC or 240 VDC
- 1500 W Titanium 100—240 VAC or 240 VDC
- 1100 W Titanium 100—240 VAC or 240 VDC
- 3200 W Titanium 200—240 VAC or 240 VDC
- 800 W Titanium 100—240 VAC or 240 VDC
- 3200 W 277 VAC and 336 HVDC Titanium
- 1400 W -48VDC 60mm
- 1500 W 277 VAC and 336 HVDC Titanium*
- 2400 W Titanium 100—240 VAC or 240 VDC*
- 1800 W HLAC Titanium 200—240 VAC or 240 VDC*
- Cooling Options
- Air cooling and Direct Liquid Cooling
- Fans
- High performance Silver (HPR SLVR) fans/High performance Gold (HPR GOLD) fans
- Up to 6 hot swappable fans
- Dimensions and Weight
- Height – 86.8 mm (3.42 inches)
- Width – 482 mm (18.97 inches)
- Weight – 28.53 kg (62.89 pound)
- 802.40 mm (31.59 inches) with bezel
- 801.51 mm (31.56 inches) without bezel
- 814.52 mm (32.07 inches) without bezel
- Form Factor
- 2U rack server
- Embedded Management
- iDRAC
- iDRAC Direct
- iDRAC RESTful API with Redfish
- RACADM CLI
- iDRAC Service Module (iSM)
- Quick Sync 2 wireless module
- NativeEdge Endpoint*
- NativeEdge Orchestrator*
- Bezel
- Optional security bezel
- Security
- Cryptographically signed firmware
- Data at Rest Encryption (SEDs with local or external key mgmt)
- Secure Boot
- Secured Component Verification (Hardware integrity check)
- Silicon Root of Trust
- System Lockdown
- System Lockdown (requires iDRAC10 Enterprise or Datacenter)
- Chassis Intrusion Detection
- TPM 2.0 FIPS, CC-TCG certified
- Network options
- OCP NIC card 3.0 : Two slots on the front or two slots on the rear
- BOSS
- Slot 34: Front BOSS slot or
Slot 6: Rear BOSS slot - GPU options
- Up to 6 x 75 W FHHL or up to 2 x 450 W DWFL
- Ports
- Front Ports:
- 1 x USB 2.0 Type C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated ethernet port for iDRAC management
- 1 x Dedicated ethernet port for iDRAC management
- 1 x VGA
- 2 x USB 3.1 Type A ports
- 1 x USB 3.1 Type A port
- PCIe
- Upto two PCIe slots ( x16 connectors)
- Slot 31 1 x 16 Gen5 Full Height - Half Length or Full Length on front Riser
- Slot 36 1 x 16 Gen5 Full Height - Half Length on front Riser
- Up to eight PCIe slots (x8 and x16 connectors)
- Slot 1 1 x 8 Gen5 Full Height - Half Length
- Slot 2 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 3 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Low Profile
- Slot 4 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 8 or 1 x 16 OCP 3.0
- Slot 5 2 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 7 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 8 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 9 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 16 Low Profile- Half Length
- Operating System and Hypervisors
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V (P-Core only)
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Dell NativeEdge OS*
